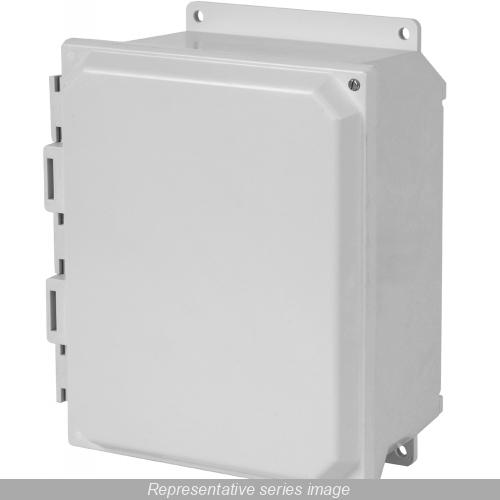

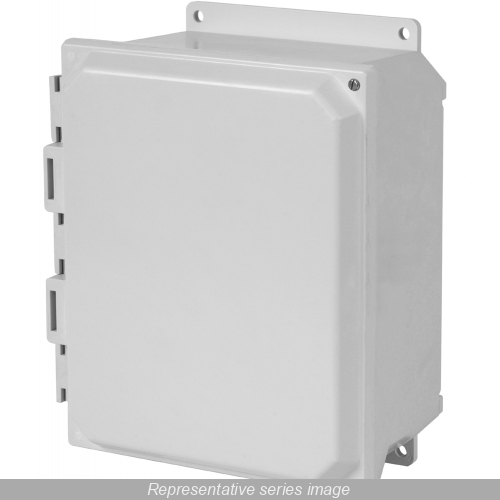

Hammond Manufacturing PJU181610HF Junction Box
Part Number # PJU181610HF
SKU # 2416329
$308.96 / Each
Typical price:$380.64 / Each
Hammond Manufacturing PJU181610HF Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJU181610HF |
| SKU #: | 2416329 |
| Capacity: | 3062.461 cu-in |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Panel Size: | 16.88 in H x 14.88 in W |
| Series: | PJU Series |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 10.13 in |
| Material: | Polyester |
| Mounting type: | Wall |
| Width: | 16.52 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398002075 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$308.96 / Each
Typical price:$380.64 / Each
Quantity:
- Hammond Junction Box, Series: PJU Series, 16.52 in Width, 10.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13/IP66 NEMA Rating, Continuous Hinged/Lift-Off/Solid/Screw Cover, 16.88 in H x 14.88 in W Panel, 3062.461 cu-in Capacity, Wall Mounting, -40 to 266 deg F, Polyester, Gray
PJU181610HF Application
For used as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures, provides outstanding insulation and protection where equipment may be hosed down or be very wet, ideal in applications with high temperatures or highly corrosive environmentsPJU181610HF Includes
Mounting HardwarePJU181610HF Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Cover fastened with captive stainless steel screws in threaded brass inserts
- Molded hinge with stainless steel pin
- Captive oil-resistant gasket provides a positive seal
- Impact index of 6.78 J (5 ft/lb)
PJU181610HF Standards
RoHS Compliant|UL 508A|CSA Certified|IEC 60529|CE Certified|eccn: EAR99PJU181610HF Warranty
1 yearSKU #2416329Part Number #PJU181610HFUNSPSC39121324UPC00062398002075
