Part Number # PJU201610HW
SKU # 2413842
Image Disclaimers Message
Brand: Hammond Manufacturing
PJU201610HW

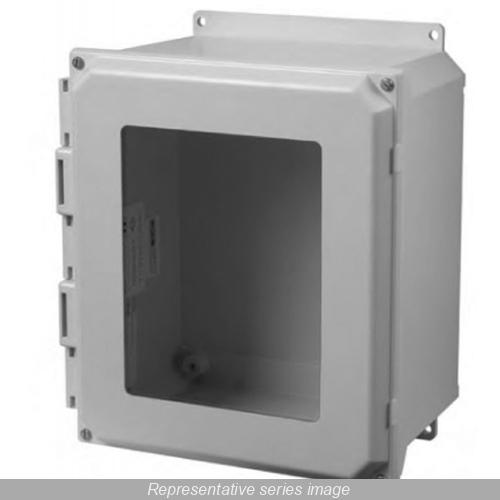

Hammond Manufacturing PJU201610HW Junction Box
Part Number # PJU201610HW
SKU # 2413842
$665.10 / Each
Typical price:$819.40 / Each
Hammond Manufacturing PJU201610HW Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJU201610HW |
| SKU #: | 2413842 |
| Capacity: | 3200 cu-in |
| NEMA Rating: | NEMA 1/2/3/4/4X/12/13/IP66 |
| Panel Size: | 18.44 in H x 14.44 in W |
| Series: | PJU Series |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 10 in |
| Material: | Polyester |
| Mounting type: | Wall |
| Width: | 16 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398002200 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$665.10 / Each
Typical price:$819.40 / Each
Quantity:
- Hammond Junction Box, Series: PJU Series, 16 in Width, 10 in Depth, NEMA 1/2/3/4/4X/12/13/IP66 NEMA Rating, Hinged/Screw/Window Cover, 18.44 in H x 14.44 in W Panel, 3200 cu-in Capacity, Wall Mounting, -40 to 266 deg F, Polyester, Gray
PJU201610HW Application
For used as instrument enclosures, electric, hydraulic or pneumatic control housings, electrical junction boxes or terminal wiring enclosures, provides outstanding insulation and protection where equipment may be hosed down or be very wet, ideal in applications with high temperatures or highly corrosive environmentsPJU201610HW Includes
Mounting HardwarePJU201610HW Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut, or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Door is supported with a continuous stainless steel hinge pin
- Captive oil-resistant gasket provides a positive seal
- Threaded brass inserts are provided for mounting feet to the rear of the enclosure
- Impact index of 6.78 J (5 ft/lb)
PJU201610HW Standards
RoHS Compliant|UL 508A|CSA Certified|IEC 60529|CE Certified|eccn: EAR99PJU201610HW Warranty
1 yearSKU #2413842Part Number #PJU201610HWUNSPSC39121324UPC00062398002200
