Part Number # PJU664CCLF
SKU # 2395643
Image Disclaimers Message
PJU664CCLF

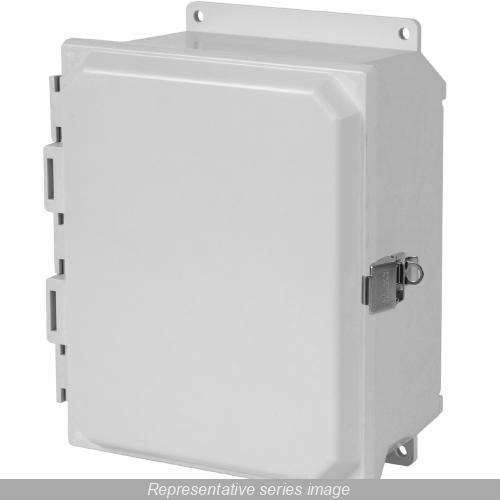

Hammond Manufacturing PJU664CCLF Junction Box
Part Number # PJU664CCLF
SKU # 2395643
$148.32 / Each
Typical price:$182.73 / Each
Hammond Manufacturing PJU664CCLF Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PJU664CCLF |
| SKU #: | 2395643 |
| Capacity: | 156.66 cu-in |
| NEMA Rating: | NEMA 1/2/3/3R/4/4X/12/13/IP66 |
| Panel Size: | 4.88 in H x 4.88 in W |
| Series: | PJU |
| Temperature Rating (Degrees F): | -40 to 266 deg F |
| Color: | Gray |
| Country of origin: | US |
| Depth: | 4.13 in |
| Height: | 6.05 in |
| Material: | Fiberglass Polyester |
| Mounting type: | Wall |
| Width: | 6.27 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398002056 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$148.32 / Each
Typical price:$182.73 / Each
Quantity:
- Hammond Junction Box, Series: PJU, 6.05 in Height, 6.27 in Width, 4.13 in Depth, NEMA 1/2/3/3R/4/4X/12/13/IP66 NEMA Rating, Clear Hinged Cover, 4.88 in H x 4.88 in W Panel, Lock: Padlock/Snap Latch, 156.66 cu-in Capacity, Wall Mounting, -40 to 266 deg F, Fiberglass Polyester, Gray
PJU664CCLF Application
Instrument Enclosures, Electric, Hydraulic/Pneumatic Control Housings, Electrical Junction Boxes/Terminal Wiring EnclosuresPJU664CCLF Includes
Mounting HardwarePJU664CCLF Item Features
- Molded fiberglass polyester enclosure with matching cover is easily punched, cut or drilled
- Enhanced UV inhibitors protect against outdoor weathering
- Standard JIC sizes under 18 x 16 in
- Threaded brass inserts are provided for optional inner panel or terminal kit mounting
- Stainless steel draw type snap latch door fasteners
- Door fasteners include a provision for padlocking
- Molded hinge with stainless steel pin
- Captive oil resistant gasket provides a positive seal
- Impact index of 5 ft/lb
- Provides outstanding insulation and protection where equipment may be hosed down or be very wet
- Ideal in applications with high temperatures or highly corrosive environments
PJU664CCLF Standards
CSA Certified|IEC 60529|UL 508A|RoHS CompliantPJU664CCLF Warranty
1 YearSKU #2395643Part Number #PJU664CCLFUNSPSC39121324UPC00062398002056
