PKS3203A460N4LG

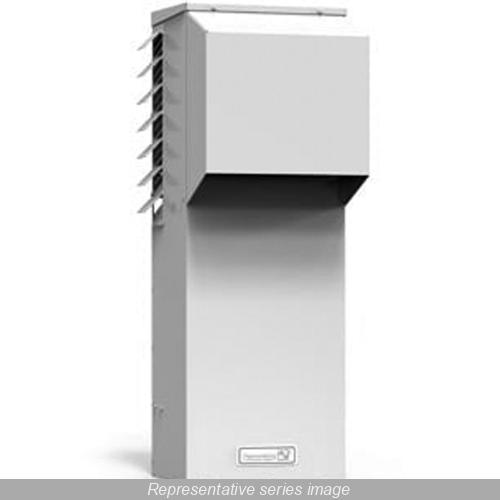

Hammond Manufacturing PKS3203A460N4LG Air/Air Heat Exchanger
Part Number # PKS3203A460N4LG
SKU # 2439022
$5363.73 / Each
Typical price:$6608.11 / Each
Hammond Manufacturing PKS3203A460N4LG Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PKS3203A460N4LG |
| SKU #: | 2439022 |
| Air Flow Rate: | 181 cfm Internal, 201 cfm External |
| Ambient Temperature Rating: | -13 to 131 deg F |
| Amperage Rating: | <1 A |
| Capacity: | 6800 Btu/hr |
| Dimensions: | 35.3 in H x 11.97 in W x 16.04 in D |
| Enclosure Type: | NEMA 3R/4/IP56 |
| Frequency Rating: | 50/60 Hz |
| Refrigerant Type: | R-134A |
| Series: | PKS4 Series |
| Color: | Light gray |
| Country of origin: | DE |
| Material: | Sheet Steel |
| Mounting type: | Horizontal/Vertical |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121301 |
| UPC: | 00062398027401 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5363.73 / Each
Typical price:$6608.11 / Each
Quantity:
- Hammond Air/Air Heat Exchanger, Series: PKS4 Series, 400/460 V AC, <1 A, 56 W Power, 50/60 Hz Frequency, NEMA 3R/4/IP56 Enclosure, 181 cfm Internal, 201 cfm External, 6800 Btu/hr Capacity, -13 to 131 deg F Ambient, R-134A Refrigerant, Horizontal/Vertical Mounting, Sheet Steel, Light Gray, 35.3 in H x 11.97 in W x 16.04 in D Dimensions
PKS3203A460N4LG Application
Indoor ApplicationsPKS3203A460N4LG Includes
Remote Door Switches and Gasket KitsPKS3203A460N4LG Item Features
- Air to air heat exchangers provide superior technology when there is a lower surrounding air temperature compared to the target internal temperature (difference of at least 10 deg C/18 deg F)
- Closed loop cooling ensures clean enclosure air is recirculated without ever mixing with contaminated ambient air
- Superior energy efficiency and lower maintenance costs versus air conditioners
- Compact standard size 35 in H x 12 in W x 16 in D (louvers extend 1-1/2 in on either side)
- Thermostat control accessible from inside enclosure
- EMI/RFI suppression meets CE
- Door contact provision for power down when enclosure door is opened
- Gasket, mounting kit and template for cutout and drilling are included
- Can be mounted vertically or horizontally for application flexibility
- Cover finished in light gray powder coated steel
PKS3203A460N4LG Standards
RoHS Compliant|UL Recognized|cUL Recognized|CE Certified|cULus Listed|eccn: EAR99PKS3203A460N4LG Warranty
1 yearSKU #2439022Part Number #PKS3203A460N4LGUNSPSC39121301UPC00062398027401
