Part Number # PWS3302A115N4SS
SKU # 2451400
PWS3302A115N4SS
Hammond Manufacturing PWS3302A115N4SS
Part Number # PWS3302A115N4SS
SKU # 2451400
Hammond Manufacturing PWS3302A115N4SS Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | PWS3302A115N4SS |
| SKU #: | 2451400 |
| Air Flow Rate: | 315 cfm |
| Ambient Temperature Rating: | 36 to 158 deg F |
| Amperage Rating: | 0.69 A |
| Capacity: | 12283 Btu/hr |
| Dimensions: | 51.89 in H x 15.76 in W x 9.07 in D |
| Enclosure Type: | NEMA 3R/4/4X |
| Frequency Rating: | 60 Hz |
| Pressure Rating: | 14.5 to 145 psi |
| Series: | PWS 3000 Series |
| Country of origin: | DE |
| Material: | Galvanized Steel |
| Mounting type: | Door/Internal/Door |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121301 |
| UPC: | 00062398033652 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Manufacturing PWS3302A115N4SS
Brand: Hammond Manufacturing
Part Number: PWS3302A115N4SS
Hammond® Air/Water Heat Exchanger, Series: PWS 3000 Series, 115 VAC, 0.69 A, 77.9 W Power, 60 Hz Frequency, NEMA 3R/4/4X Enclosure, 315 cfm, 12283 Btu/hr Capacity, 36 to 158 deg F Ambient, 14.5 to 145 psi Pressure, Water Refrigerant, Door/Internal/Door Mounting, Galvanized Steel, 304 Stainless Steel, 51.89 in H x 15.76 in W x 9.07 in D Dimensions
Additional Description: HAMM-PWS3302A115N4SS AW HX 3600W-4/4X SS
Catalog Description: Air/Water Heat Exch. 3600W 115V 4/4X SS
PWS3302A115N4SS Application
For used in various water sources to cool enclosure where ambient conditions involve high temperatures, harsh conditions or are subject to frequent wash downPWS3302A115N4SS Includes
Remote Door Switches, Condensate Bottle and Gasket KitsPWS3302A115N4SS Item Features
- Compatible with chilled water/glycol, tower water and other circulated coolants
- Integrated thermostat and solenoid value with alarm contact provides automatic temperature control
- Rugged (10 bar) copper tube/aluminum fin heat exchanger with 1/2 in barb connection
- Side, door or internal mounting provides complete installation flexibility
- Low noise, maintenance-free design
- Exterior case, galvanized steel construction finish 304 SS
PWS3302A115N4SS Standards
RoHS Compliant|UL Listed|cUL Listed|CE Certified|cULus Listed|eccn: EAR99PWS3302A115N4SS Warranty
1 yearSKU #2451400Part Number #PWS3302A115N4SSUNSPSC39121301UPC00062398033652

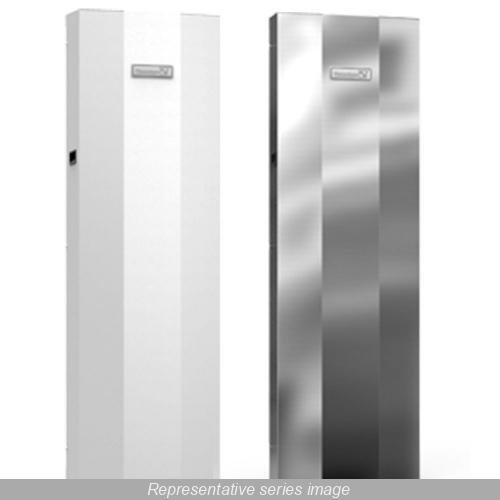

Image provided may only be a representation of final product and may include optional equipment
