Hammond Manufacturing UHDM727818SFTC
Part Number # UHDM727818SFTC
SKU # 2467614
UHDM727818SFTC
Hammond Manufacturing UHDM727818SFTC
Part Number # UHDM727818SFTC
SKU # 2467614
$6841.71 / Each
Typical price:$8707.63 / Each
Hammond Manufacturing UHDM727818SFTC Key Features
| Brand: | Hammond Manufacturing |
|---|---|
| Part Number # : | UHDM727818SFTC |
| SKU #: | 2467614 |
| Capacity: | 102655.77 cu-in |
| Finish: | Phosphatized/Powder Coated |
| NEMA Rating: | NEMA 12/IP54 |
| Panel Size: | 60 in L x 72 in W |
| Series: | UHDM |
| Type: | Two Door |
| Depth: | 18.13 in |
| Length: | 72.13 in |
| Material: | 10 ga Mild Steel |
| Width: | 78-1/2 in |
| Manufacturer Name: | Hammond Manufacturing |
| UNSPSC: | 39121324 |
| UPC: | 00062398019932 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$6841.71 / Each
Typical price:$8707.63 / Each
Quantity:
- Hammond Modular Flange Disconnect Enclosure, Two Door, Series: UHDM, 72.13 in Length, 78-1/2 in Width, 18.13 in Depth, NEMA 12/IP54, Hinged Cover, 60 in L x 72 in W Panel, Lock: Padlock Hasp, 102655.77 cu-in, Floor Mount, 10 ga Mild Steel, Phosphatized/Powder Coated, ANSI 61 Gray
UHDM727818SFTC Application
ABB Controls Disconnect Switches and Circuit Breakers, Allen Bradley 1494F/1494D Disconnect Switches and 1494D Circuit Breakers, C-H Westinghouse Type C361 Disconnect Switches and Type C371 Circuit Breaker, Flex Shaft Circuit Breakers, General Electric Type STDA Disconnect Switches and Circuit Breakers, Spectra-Flex Circuit BreakersUHDM727818SFTC Item Features
- Smooth continuously welded seams
- Body stiffeners are provided in the larger enclosures for extra rigidity
- Heavy duty lifting eyes are anchored into reinforced top corners
- Removable doors are secured with heavy duty lift off hinges
- Flange trough collar (FTC) around door excludes liquids and contaminants
- Panel supports are provided
- Center post is removable, providing easy panel installation
- Heavy duty 3-point latching door mechanism
- Side openings are reinforced to provide structural strength, smooth edges and preset gasket compression
- Oil resistant gaskets on doors and side openings are permanently secured
- Master door handle complete with screw defeater and padlock hasp, slave door handle complete with padlock hasp
- A mechanical interlock activated by the master door prevents the auxiliary door from being opened first
- The universal flange cutout provides mounting for disconnect operators by use of the appropriate operator adaptor kit
- A bonding screw is provided on the lid and a grounding stud is provided in the enclosure
- A literature pocket is provided
- Formed end plates and flat end plates formed from 12 ga steel
- Used to enclose the open ends of one or more modular enclosures
- Flat barrier plate Formed from 14 ga steel, may be used to provide a barrier between modular enclosures
- Panel bridge kit formed from 10 ga steel, used to join back panels together between modular enclosures to provide a continuous panel surface
- Designed to bolt together in any number of units for maximum flexibility and ease of transportation
UHDM727818SFTC Standards
CSA Certified|CE Marked|JIC EGP-1-1967, EMP-1-1967|IEC 60529|UL 508A|RoHS CompliantSKU #2467614Part Number #UHDM727818SFTCUNSPSC39121324UPC00062398019932

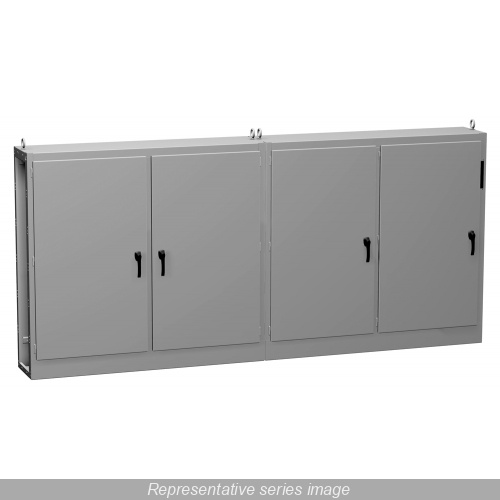

Image provided may only be a representation of final product and may include optional equipment
