Part Number # DM020JCCN
SKU # 2290656
DM020JCCN
Hammond Power Solutions DM020JCCN Drive Isolation Drive Isolation Transformer
Part Number # DM020JCCN
SKU # 2290656
Hammond Power Solutions DM020JCCN Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | DM020JCCN |
| SKU #: | 2290656 |
| Dimensions: | 25 in L x 23.9 in W x 28.75 in H |
| Secondary Voltage: | 230Y V AC |
| Temperature Rating (Degrees F): | 30 to 40 deg C |
| Type: | Non-Efficient Standard |
| UNSPSC: | 39121001 |
| UPC: | 00803423033583 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Power Solutions DM020JCCN Drive Isolation Drive Isolation Transformer
Brand: Hammond Power Solutions
Part Number: DM020JCCN
HPS Drive Isolation Drive Isolation Transformer, Non-Efficient Standard, 460 Delta VAC Primary, 230Y VAC Secondary, 20 kVA, 60 Hz, 3 ph Phase, Lug/Pad, Floor/Wall Mount, 220 deg C, NEMA 3R, 30 to 40 deg C, 25 in L x 23.9 in W x 28.75 in H
Additional Description: HPS -DM020JCCN (M) 3PH 20KVA 460D-230Y/133 60HZ C
Catalog Description: Drive isolation transformer, three-phase, 20 kVA, 460–400 Volts, aluminum windings.
DM020JCCN Application
AC and DC Variable Speed DrivesDM020JCCN Item Features
- The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load
- The windings are designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds
- Drive Isolation Transformers are sized to match standard motor horsepower and voltage ratings
- Standard sizes range from 5 to 600 HP in six standard voltages
DM020JCCN Standards
RoHS Compliant|UL File No. E112313|CSA File No. LR3902SKU #2290656Part Number #DM020JCCNUNSPSC39121001UPC00803423033583

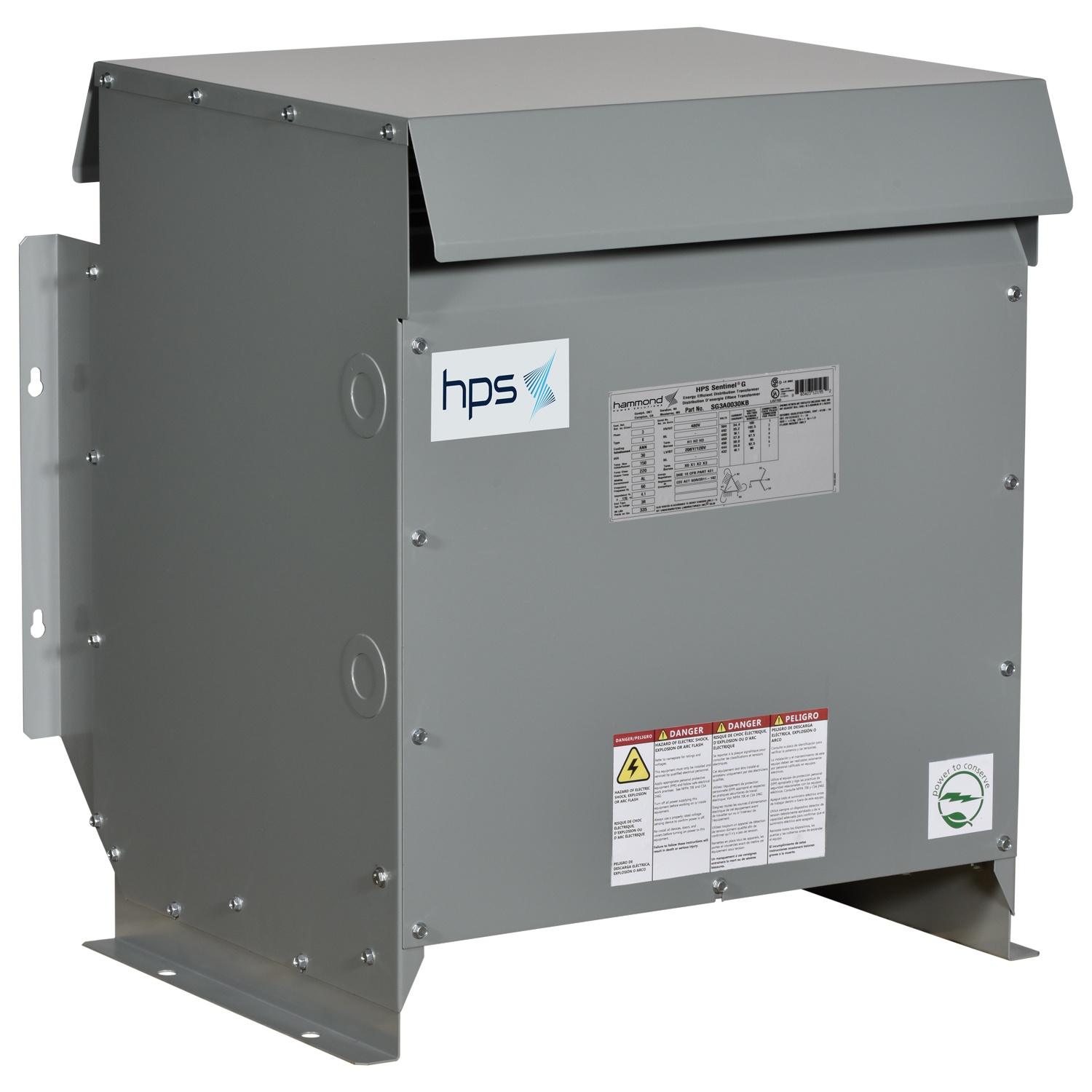

Image provided may only be a representation of final product and may include optional equipment
