Part Number # DM145JJ
SKU # 2269137

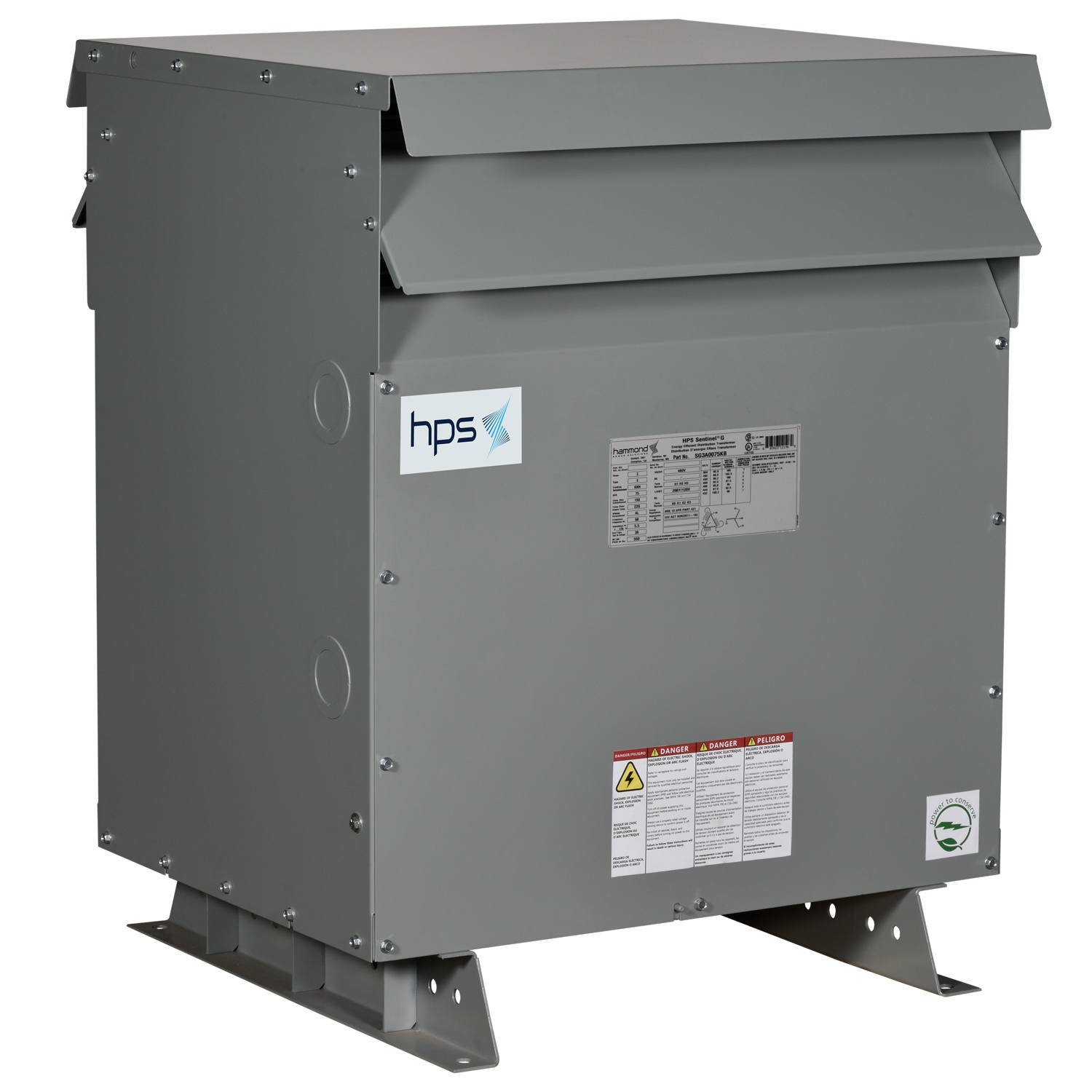

Image provided may only be a representation of
final product and may include optional equipment
DM145JJ
Hammond Power Solutions DM145JJ Drive Isolation Drive Isolation Transformer
Part Number # DM145JJ
SKU # 2269137
$7771.43 / Each
Typical price:$9792.00 / Each
Hammond Power Solutions DM145JJ Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | DM145JJ |
| SKU #: | 2269137 |
| Dimensions: | 25-1/2 in L x 32 in W x 41 in H |
| Enclosure Type: | NH4-N3R Indoor/Outdoor |
| Frequency Rating: | 60, 60 Hz |
| Insulation: | 220, 220 deg C |
| Phase: | 3, 3 ph |
| Primary Voltage: | 460, 460 V AC, 460 VAC |
| Secondary Voltage: | 460Y V AC, 460Y VAC |
| Temperature Rating (Degrees F): | 30, 30 deg C |
| Connection type: | Lug/Pad |
| Country of origin: | CA|MX|US |
| Mounting type: | Floor |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121001 |
| UPC: | 00803423003890 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7771.43 / Each
Typical price:$9792.00 / Each
Quantity:
- HPS, DM145JJ, Drive Isolation Transformer, 460 VAC Primary, 460Y V AC Secondary, 145 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor Mounting, 220 deg C Insulation, NH4-N3R Indoor/Outdoor Enclosure, 30 deg C, 25-1/2 in L x 32 in W x 41 in H Dimensions
DM145JJ Application
Variable Speed Drives ApplicationsDM145JJ Item Features
- Designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds
- Comes standard in an indoor/outdoor enclosure with a coil mounted thermal warning switch
- The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load
- Neutral terminal for field connection (on applicable units)
- Aluminum wound
- High grade non-aging, fully processed silicon steel laminations or better coil
- ST-20 compliant taps
- ANSI 61 UL 50 gray enclosure finish
- 40 deg C maximum
DM145JJ Standards
UL Listed|CSA Certified|RoHS CompliantSKU #2269137Part Number #DM145JJUNSPSC39121001UPC00803423003890
