DM275JJ

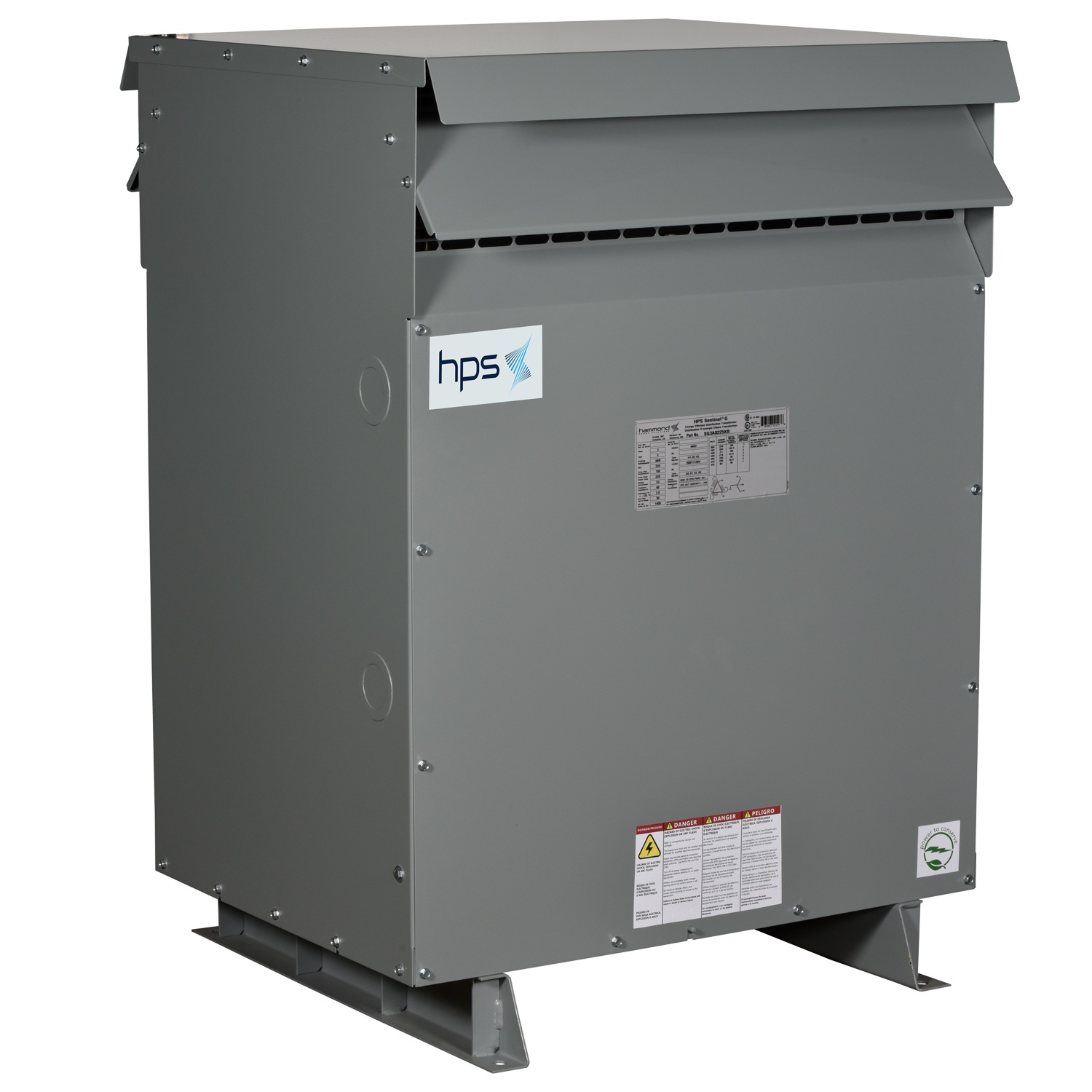

Hammond Power Solutions DM275JJ Hps Drive Isolation Drive Isolation Transformer
Part Number # DM275JJ
SKU # 2402516
$13777.78 / Each
Typical price:$17360.00 / Each
Hammond Power Solutions DM275JJ Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | DM275JJ |
| SKU #: | 2402516 |
| Dimensions: | 34 in L x 39-1/2 in W x 51-1/2 in H |
| Enclosure Type: | NJ1-N3R Indoor/Outdoor |
| Frequency Rating: | 60 Hz |
| Insulation: | 220 deg C |
| Phase: | 3, 3 ph |
| Secondary Voltage: | 460Y V AC, 460Y VAC |
| Temperature Rating (Degrees F): | 30 deg C |
| Connection type: | Lug/Pad |
| Country of origin: | CA|MX|US |
| Mounting type: | Floor |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121001 |
| UPC: | 00803423004255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$13777.78 / Each
Typical price:$17360.00 / Each
Quantity:
- HPS, DM275JJ, Drive Isolation Transformer, 460Y V AC Secondary, 275 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor Mounting, 220 deg C Insulation, NJ1-N3R Indoor/Outdoor Enclosure, 30 deg C, 34 in L x 39-1/2 in W x 51-1/2 in H Dimensions
DM275JJ Application
Variable Speed Drives ApplicationsDM275JJ Item Features
- Designed to withstand overcurrent of 150% of the rated load for 60 seconds or 200% of the rated load for 30 seconds
- Comes standard in an indoor/outdoor enclosure with a coil mounted thermal warning switch
- The separate primary and secondary windings provide electrical isolation between the incoming line and the SCR load
- Neutral terminal for field connection (on applicable units)
- Aluminum wound
- High grade non-aging, fully processed silicon steel laminations or better coil
- ST-20 compliant taps
- ANSI 61 UL 50 gray enclosure finish
- 40 deg C maximum
DM275JJ Standards
UL Listed|CSA Certified|RoHS CompliantSKU #2402516Part Number #DM275JJUNSPSC39121001UPC00803423004255
