Part Number # PH75MLI-FK
SKU # 2376056
PH75MLI-FK
Hammond Power Solutions PH75MLI-FK Control Transformer
Part Number # PH75MLI-FK
SKU # 2376056
Hammond Power Solutions PH75MLI-FK Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | PH75MLI-FK |
| SKU #: | 2376056 |
| Dimensions: | 3.25 in W x 4.25 in D x 3.56 in H |
| Enclosure Type: | Open/Core and Coil |
| Frequency Rating: | 50/60 Hz |
| Insulation: | 105 deg C |
| Maximum Amperage Rating: | 0.65/3.13 A |
| Phase: | 1, 1 ph |
| Primary Voltage: | 208/230/460 V AC, 208/230/460 VAC |
| Secondary Voltage: | 24/115 V AC, 24/115 VAC |
| Series: | Imperator |
| Temperature Rating (Degrees F): | 30 to 40 deg C |
| Type: | Dry Type Encapsulated Machine Tool Rated Molded |
| Connection type: | Terminal Block |
| Country of origin: | CN |
| Mounting type: | Panel |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121026 |
| UPC: | 00803423081751 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Power Solutions PH75MLI-FK Control Transformer
Brand: Hammond Power Solutions
Part Number: PH75MLI-FK
HPS Imperator Control Transformer, Dry Type Encapsulated Machine Tool Rated Molded, 208/230/460 VAC Primary, 24/115 VAC Secondary, 75 VA, 50/60 Hz, 1 ph, 0.65/3.13 A Maximum, Terminal Block, Panel Mount, 105 deg C, Open/Core and Coil, 30 to 40 deg C, 3.25 in W x 4.25 in D x 3.56 in H
Additional Description: HPS -PH75MLI-FK (O) CNTL 75VA 460/230/208-115,24 DUAL PRIMARY FUSE BLOCK
Catalog Description: Machine Tool Rated Molded Industrial Control Transformer, 460/230/208 PV, 115/24 SV, 75 VA, Primary And Secondary Fuse Clips Included
PH75MLI-FK Application
Industrial, Automation, Panel shops, Machines, Solenoids, Timers and Control ApplicationsPH75MLI-FK Includes
Primary and Secondary Fuse ClipsPH75MLI-FK Item Features
- 600 VAC Class, machine tool rated industrial control transformers
- Standard SEMS washers supplied on all units excluding PH750PH, PH1000PG, PH750MLI, PH1000MLI
- Termination connection numbers molded into the terminal block for simple identification
- SEMS washer allows for easy connection of supply or load wires with or without terminal connectors
- Custom injection molded coil cover with its unique "fin shaped" design combines superior cooling properties with a clean, bold look
- Potted control transformer for high inrush applications powering coils
PH75MLI-FK Standards
RoHS Compliant|UL/cULus Listed|CSA/CE Marking|REACH CompliantPH75MLI-FK Warranty
LifetimeSKU #2376056Part Number #PH75MLI-FKUNSPSC39121026UPC00803423081751

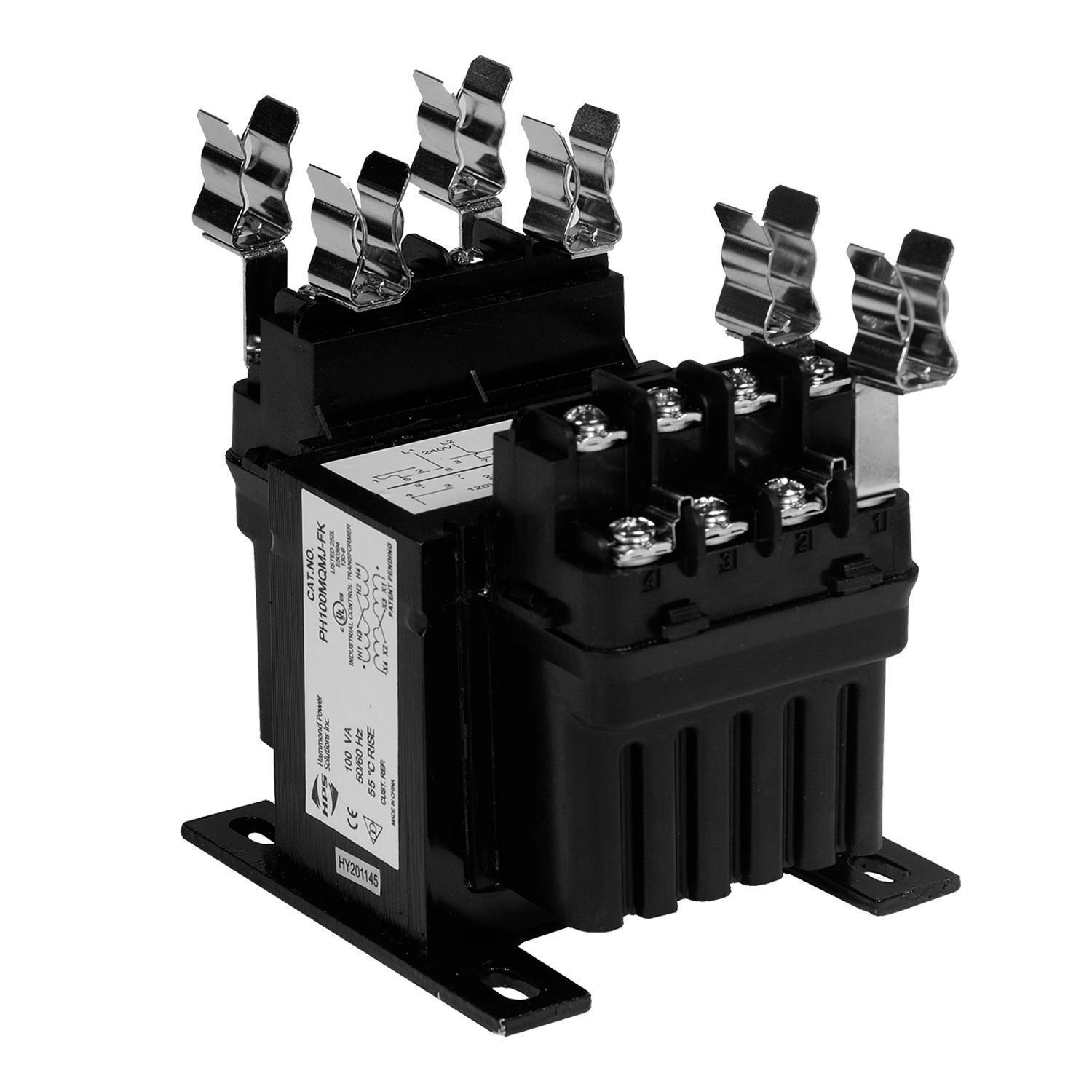

Image provided may only be a representation of final product and may include optional equipment
