QC05ESCB

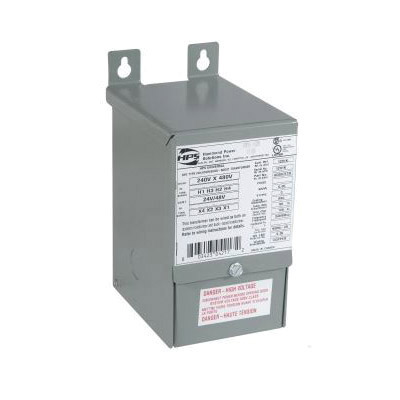

Hammond Power Solutions QC05ESCB Buck Boost Transformer
Part Number # QC05ESCB
SKU # 2254850
$211.73 / Each
Typical price:$259.00 / Each
Hammond Power Solutions QC05ESCB Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | QC05ESCB |
| SKU #: | 2254850 |
| Dimensions: | 5-1/4 in L x 3-3/4 in W x 7-1/4 in H |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 50/60, 50/60 Hz |
| Insulation: | 130, 130 deg C |
| Phase: | 1 |
| Primary Voltage: | 120 x 240, 120 x 240 VAC |
| Secondary Voltage: | 16 x 32, 16 x 32 VAC |
| Series: | Universal |
| Temperature Rating (Degrees F): | 30 to 40, 30 to 40 deg C |
| Type: | Dry Type Encapsulated Low Voltage |
| Connection type: | Copper Tab/Wire Lead |
| Mounting type: | Wall |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121025 |
| UPC: | 00803423042196 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$211.73 / Each
Typical price:$259.00 / Each
Quantity:
- HPS, QC05ESCB, Buck Boost Transformer, Dry Type Encapsulated Low Voltage, Series: Universal, 120 x 240 VAC Primary, 16 x 32 VAC Secondary, 0.05 kVA Power, 50/60 Hz Frequency, 1 ph, Copper Tab/Wire Lead Connection, Wall Mounting, 130 deg C Insulation, NEMA 3R Enclosure, 30 to 40 deg C, 5-1/4 in L x 3-3/4 in W x 7-1/4 in H Dimensions
QC05ESCB Application
For correcting off-standard voltages and Indoor/outdoor applicationsQC05ESCB Item Features
- Encapsulated core and coils in a combination silica sand and resin compound
- Designed with a heavy duty NEMA 3R enclosure
- Encapsulated transformers can be used to buck and boost voltage in 1 and 3-phase applications where supply voltages are frequently above or below nominal
- These transformers can also be used in low voltage transformer application
QC05ESCB Standards
RoHS Compliant|UL Listed|CSA Certified|ANSI/ISA 12.12.10 E258346|Class 1 Div 2 Groups A/B/C/D|ABS No. 04-HS435190/1-PDASKU #2254850Part Number #QC05ESCBUNSPSC39121025UPC00803423042196
