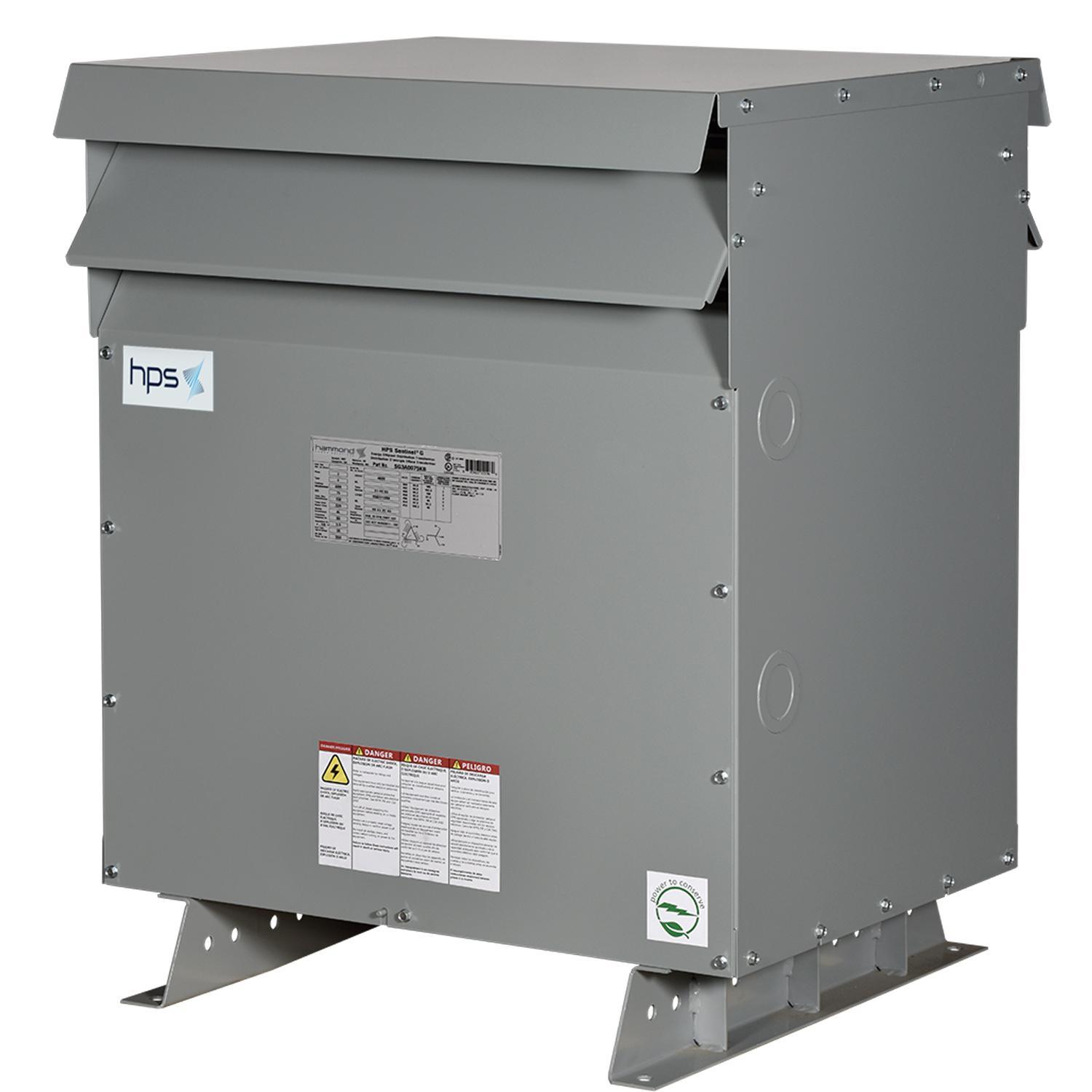

Hammond Power Solutions SG3A0112KB G Distribution Transformer
Part Number # SG3A0112KB
SKU # 2372857
$6026.67 / Each
Hammond Power Solutions SG3A0112KB Key Features
Brand: Hammond Power Solutions
Part Number # SG3A0112KB
SKU #2372857
Dimensions: 27 in L x 28.3 in W x 36 in H
Efficiency: 98.74, 98.74 %, 98.74%
Enclosure Type: DH3-N3R - Indoor/Outdoor
Frequency Rating: 60, 60 Hz
Phase: 3, 3 ph
Power Rating: 112.5, 112.5 kVA
Primary Voltage: 480 Delta VAC
Secondary Voltage: 208Y/120 VAC
Series: Sentinel G
Temperature Rating (Degrees F): 30, 30 deg C
Type: Energy Efficient General Purpose
Connection type: Lug/Pad
Country of origin: CA|IN|MX|US
Mounting type: Floor
Manufacturer Name: Hammond Power Solutions
UNSPSC: 39121001
UPC: 00803423123611
$6026.67 / Each
Hammond Power Solutions SG3A0112KB G Distribution Transformer
Brand: Hammond Power Solutions
Part Number: SG3A0112KB
HPS Sentinel G Distribution Transformer, Energy Efficient General Purpose, 480 Delta VAC Primary, 208Y/120 VAC Secondary, 112.5 kVA, 60 Hz, 3 ph, Lug/Pad, Floor Mount, DH3-N3R - Indoor/Outdoor, 30 deg C, 98.74 % Efficiency, 27 in L x 28.3 in W x 36 in H
Additional Description: HPS -SG3A0112KB D16 SNTL-G 3PH 112.5kVA 480D-208Y/120V AL 60Hz 150C 3R
Catalog Description: 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 208Y/120 SV, 112 kVA, 3PH, Aluminum Wound
SG3A0112KB Application
Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System ApplicationsSG3A0112KB Item Features
- Aluminum winding
- Meets latest U.S. DOE 10 CFR part 431 efficiency standards
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Core is coated to prevent the ingress of moisture
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short circuit conditions
- Robust interface between core and coils for better short circuit performance
- Standard 150 deg C temperature rise and 220 deg C insulation class
- ANSI 61 gray, UL50 enclosure finish
- Front accessible separate high and low voltage terminals, connectors suitable for aluminum and copper are provided for easy cable installation
- Side knockouts standard on all units bottom entry provision conduit entry
- Typically 3.5% to 6.5% impedance
- Generation 3 current design
- Delta primary, wye-N secondary phase
- 40 deg C maximum temperature
- ST-20 standards sound level
- SCD 19 standard primary taps
- DH3 case style
SG3A0112KB Standards
RoHS Compliant|UL File No.E112313|CSA File No. LR3902SKU #2372857Part Number #SG3A0112KBUNSPSC39121001UPC00803423123611
