Part Number # SG3A0300KK
SKU # 2362345
SG3A0300KK
Hammond Power Solutions SG3A0300KK G Distribution Transformer
Part Number # SG3A0300KK
SKU # 2362345
Hammond Power Solutions SG3A0300KK Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | SG3A0300KK |
| SKU #: | 2362345 |
| Dimensions: | 52 in H x 37-1/2 in W x 34 in D |
| Efficiency: | 99.02 % |
| UNSPSC: | 39121001 |
| UPC: | 00803423125004 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Power Solutions SG3A0300KK G Distribution Transformer
Brand: Hammond Power Solutions
Part Number: SG3A0300KK
HPS Sentinel G Distribution Transformer, Energy Efficient General Purpose, 480 Delta VAC Primary, 480Y/277 VAC Secondary, 300 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor Mounting, NEMA 3R Enclosure, 30 deg C, 99.02 % Efficiency, 52 in H x 37-1/2 in W x 34 in D Dimensions
Additional Description: HPS -SG3A0300KK (M) D16 SNTL-G 3PH 300KVA 480D-480Y/277V AL 60Hz 150C 3R
Catalog Description: 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 480Y/277 SV, 300 kVA, 3PH, Aluminum Wound
SG3A0300KK Application
Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System ApplicationsSG3A0300KK Item Features
- HPSgeneral purpose distribution transformers are rated for 600 V and below
- HPS also offers a line of low voltageSmart Transformerswith integrated power monitoring for enhanced energy management and real-time performance insights
SG3A0300KK Standards
RoHS Compliant|UL File No.E112313|CSA File No. LR3902SKU #2362345Part Number #SG3A0300KKUNSPSC39121001UPC00803423125004

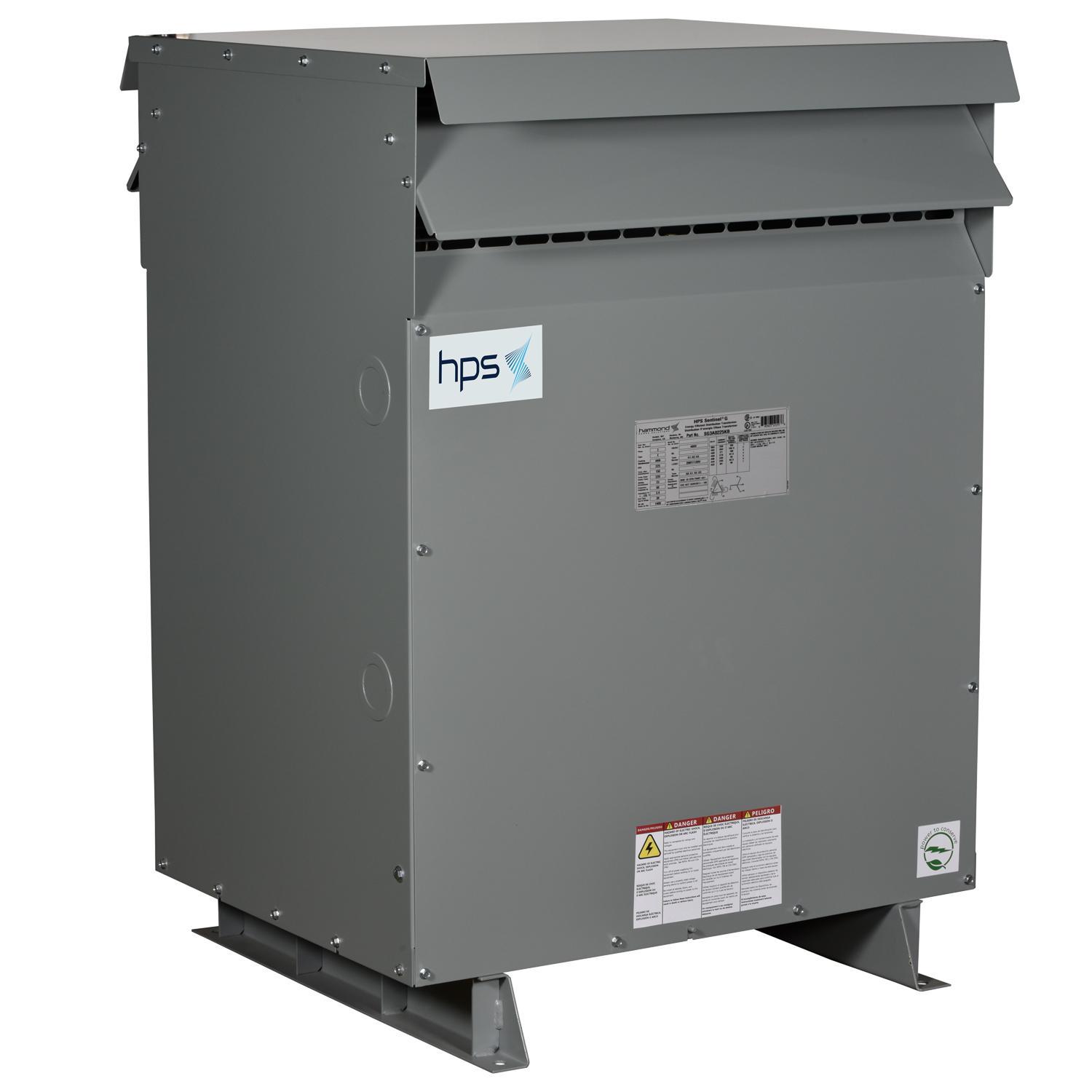

Image provided may only be a representation of final product and may include optional equipment
