Hammond Power Solutions SG3C0030KD G Distribution Transformer
Part Number # SG3C0030KD
SKU # 2317068
Hammond Power Solutions SG3C0030KD Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | SG3C0030KD |
| SKU #: | 2317068 |
| Dimensions: | 23.8 in L x 25.8 in W x 28.8 in H, 28.8 in H x 25.8 in W x 23.8 in D |
| Enclosure Type: | DH2-N3R - Indoor/Outdoor |
| Secondary Voltage: | 240 Delta V AC/120 V AC, 240 Delta VAC/120 VAC |
| Series: | Sentinel G |
| Temperature Rating (Degrees F): | 30 |
| Type: | Energy Efficient General Purpose |
| Connection type: | Lug/Pad |
| Country of origin: | CA|IN|MX|US |
| Mounting type: | Ceiling/Floor |
| UNSPSC: | 39121001 |
| UPC: | 00803423124168 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Power Solutions SG3C0030KD G Distribution Transformer
Brand: Hammond Power Solutions
Part Number: SG3C0030KD
HPS Sentinel G Distribution Transformer, Energy Efficient General Purpose, 480 Delta VAC Primary, 240 Delta VAC/120 VAC Secondary, 30 kVA, 60 Hz, 3 ph, Lug/Pad, Ceiling/Floor Mount, DH2-N3R - Indoor/Outdoor, 30 deg C, 98.23 % Efficiency, 23.8 in L x 25.8 in W x 28.8 in H
Additional Description: HPS -SG3C0030KD D16 SNTL-G 3PH 30KVA 480D-240D/120CT AL 60HZ 150C 3R 480D-240D/120CT AL 60Hz 150C 3R
Catalog Description: 600V Class Three Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 480D PV, 240D/120CT or 240Y/139 SV, 30 kVA, 3PH, Aluminum Wound
SG3C0030KD Application
Supplying Appliance, Lighting, Heating, Motorized Machine and Power Loads from Electrical Distribution System ApplicationsSG3C0030KD Item Features
- HPS also offers a line of low voltage Smart Transformers with integrated power monitoring for enhanced energy management and real-time performance insights
SG3C0030KD Standards
RoHS Compliant|UL File No.E112313|CSA File No. LR3902SKU #2317068Part Number #SG3C0030KDUNSPSC39121001UPC00803423124168

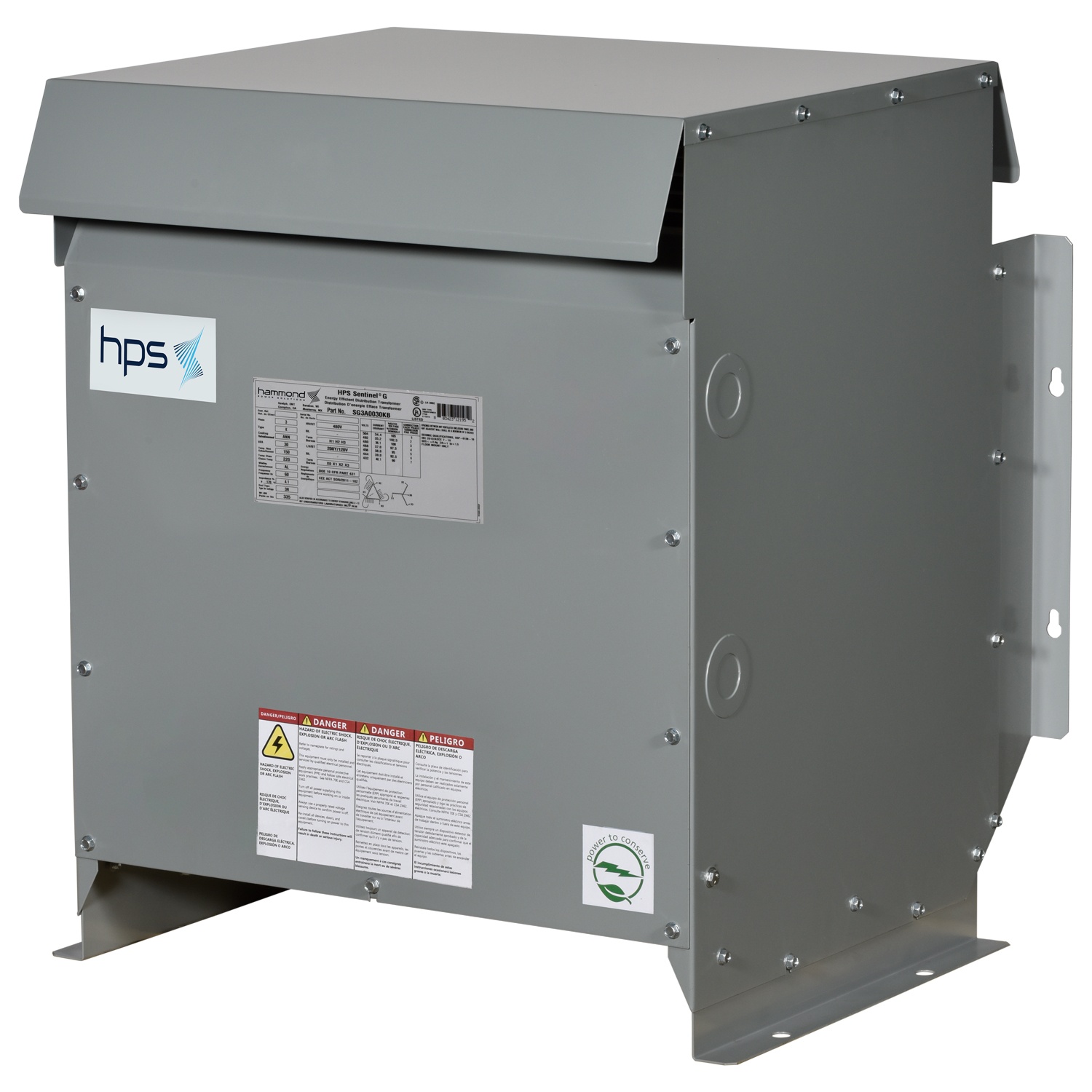

Image provided may only be a representation of final product and may include optional equipment
