Part Number # SG3L0100BE0C
SKU # 2460915
SG3L0100BE0C
Hammond Power Solutions SG3L0100BE0C
Part Number # SG3L0100BE0C
SKU # 2460915
Hammond Power Solutions SG3L0100BE0C Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | SG3L0100BE0C |
| SKU #: | 2460915 |
| Dimensions: | 27 in L x 28-1/4 in W x 36 in H |
| Efficiency: | 98.60% |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | 220 deg C |
| Phase: | 1 |
| Primary Voltage: | 208 V AC |
| Secondary Voltage: | 120/240 V AC |
| Series: | Sentinel G |
| Temperature Rating (Degrees F): | 30/40 deg C |
| Type: | D16 3rd Generation Convection Cooled Energy Efficient Single to Dual |
| Connection type: | Pad |
| Country of origin: | CA|IN|MX|US |
| Mounting type: | Floor |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121001 |
| UPC: | 00803423140601 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hammond Power Solutions SG3L0100BE0C
Brand: Hammond Power Solutions
Part Number: SG3L0100BE0C
HPS Sentinel® G Distribution Transformer, D16 3rd Generation Convection Cooled Energy Efficient Single to Dual, 208 VAC Primary, 120/240 VAC Secondary, 100 kVA Power, 60 Hz Frequency, 1 ph, Pad Connection, Floor Mounting, 220 deg C Insulation, NEMA 3R Enclosure, 30/40 deg C, 98.6 % Efficiency, 27 in L x 28-1/4 in W x 36 in H Dimensions
Additional Description: HPS -SG3L0100BE0C D16 SNTL-G3 1PH 100kVA 208-120/240V CU 60Hz 150C 3R
Catalog Description: 600V Class Single Phase DOE2016 and NRCan 2019 Compliant Energy Efficient Distribution Transformer, 208 PV, 120/240 SV, 100 kVA, 1PH, Copper Wound
SG3L0100BE0C Application
General Purpose, Supplying Appliance, Lighting, Motorized Machine, Power Loads from Electrical Distribution Systems, Indoor and Outdoor ApplicationsSG3L0100BE0C Item Features
- HPS also offers a line of low voltage Smart Transformers with integrated power monitoring for enhanced energy management and real-time performance insights
SG3L0100BE0C Standards
RoHS Compliant|UL File No. E112313|CSA File No. LR3902|DOE 10 CFR(DOE 2016) and C802.2|SOR/2018-201 Amd 14 (NRCan) 2019 Reg. 404/12|ST-20 Compliant|ECCN: EAR99SKU #2460915Part Number #SG3L0100BE0CUNSPSC39121001UPC00803423140601

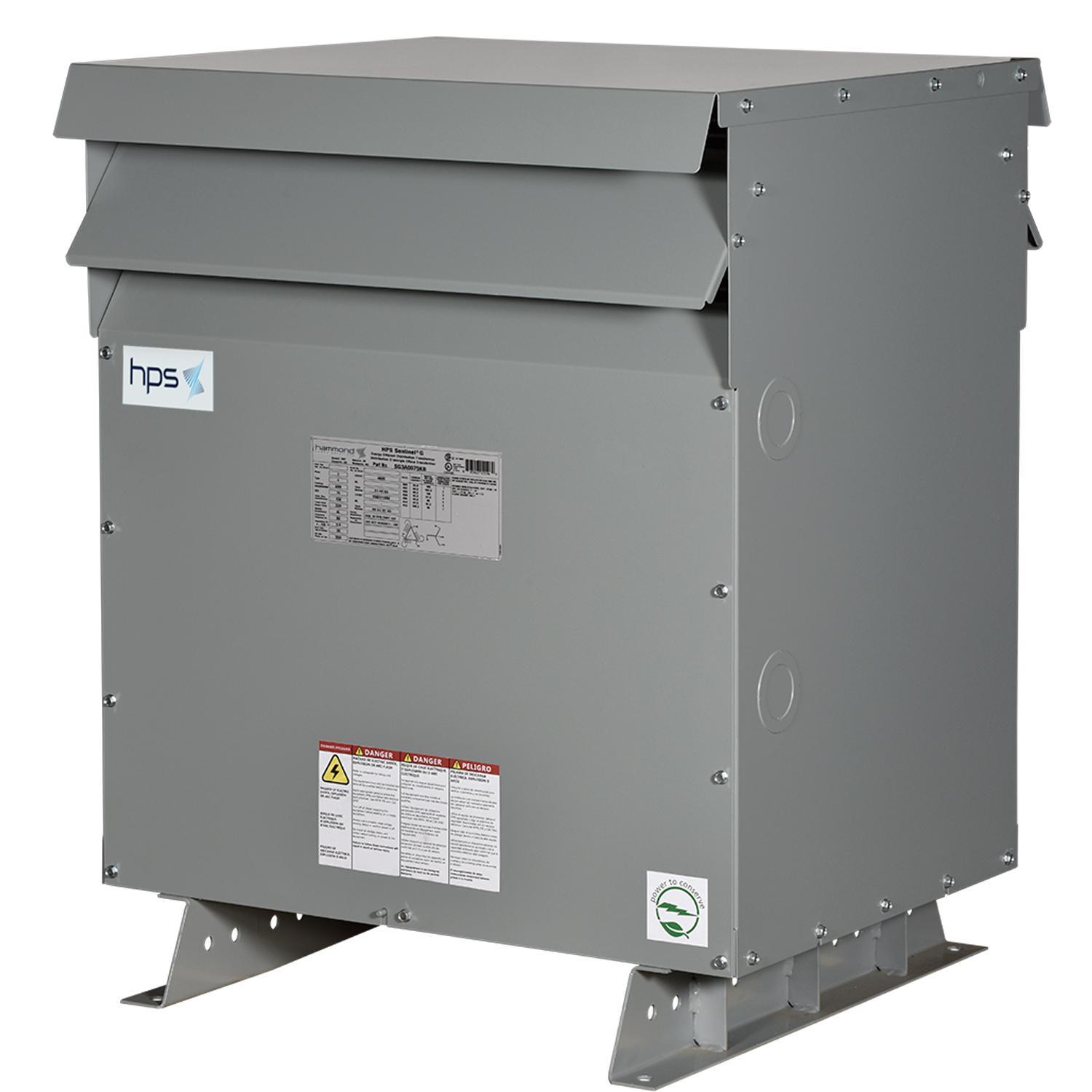

Image provided may only be a representation of final product and may include optional equipment
