Part Number # TE3A0034NJ
SKU # 2462156
TE3A0034NJ
Hammond Power Solutions TE3A0034NJ
Part Number # TE3A0034NJ
SKU # 2462156
$4915.87 / Each
Typical price:$6194.00 / Each
Hammond Power Solutions TE3A0034NJ Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | TE3A0034NJ |
| SKU #: | 2462156 |
| Dimensions: | 28.8 in H x 25.8 in W x 23.8 in D |
| Primary Voltage: | 575 Delta V AC |
| Secondary Voltage: | 460Y/266 V AC |
| Type: | Aluminum Wound |
| Connection type: | Lug/Pad |
| Country of origin: | CA|MX|US |
| Mounting type: | Floor/Wall |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121029 |
| UPC: | 00803423144098 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4915.87 / Each
Typical price:$6194.00 / Each
Quantity:
- HPS Tribune E, TE3A0034NJ, Distribution Transformer, Aluminum Wound, 575 Delta V AC Primary, 460Y/266 VAC Secondary, 34 kVA Power, 60 Hz Frequency, 3 ph, Lug/Pad Connection, Floor/Wall Mounting, 200 deg C Insulation, NEMA 3R Enclosure, 98.28 % Efficiency, 28.8 in H x 25.8 in W x 23.8 in D Dimensions
TE3A0034NJ Application
For Variable Speed DrivesTE3A0034NJ Item Features
- Core is coated to prevent the ingress of moisture
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Expanded catalog product offer - up to 1000kVA
- Increased profitability due to lower operating costs, Decreased cost of ownership over the lifetime of the transformer, Less air conditioning cost due to lower heat emissions
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions
- Robust interface between core & coils for better short circuit performance
- Standard 10kV BIL rating provides increased reliability and protection against critical equipment failure (including voltage spikes and other line transients)
- Standard Type 3R enclosure suitable for indoor or outdoor applications
- Standard integral floor and wall mounting brackets up to 45kVA allow for faster installation
TE3A0034NJ Standards
CSA Certified|UL Listed|PROP65SKU #2462156Part Number #TE3A0034NJUNSPSC39121029UPC00803423144098

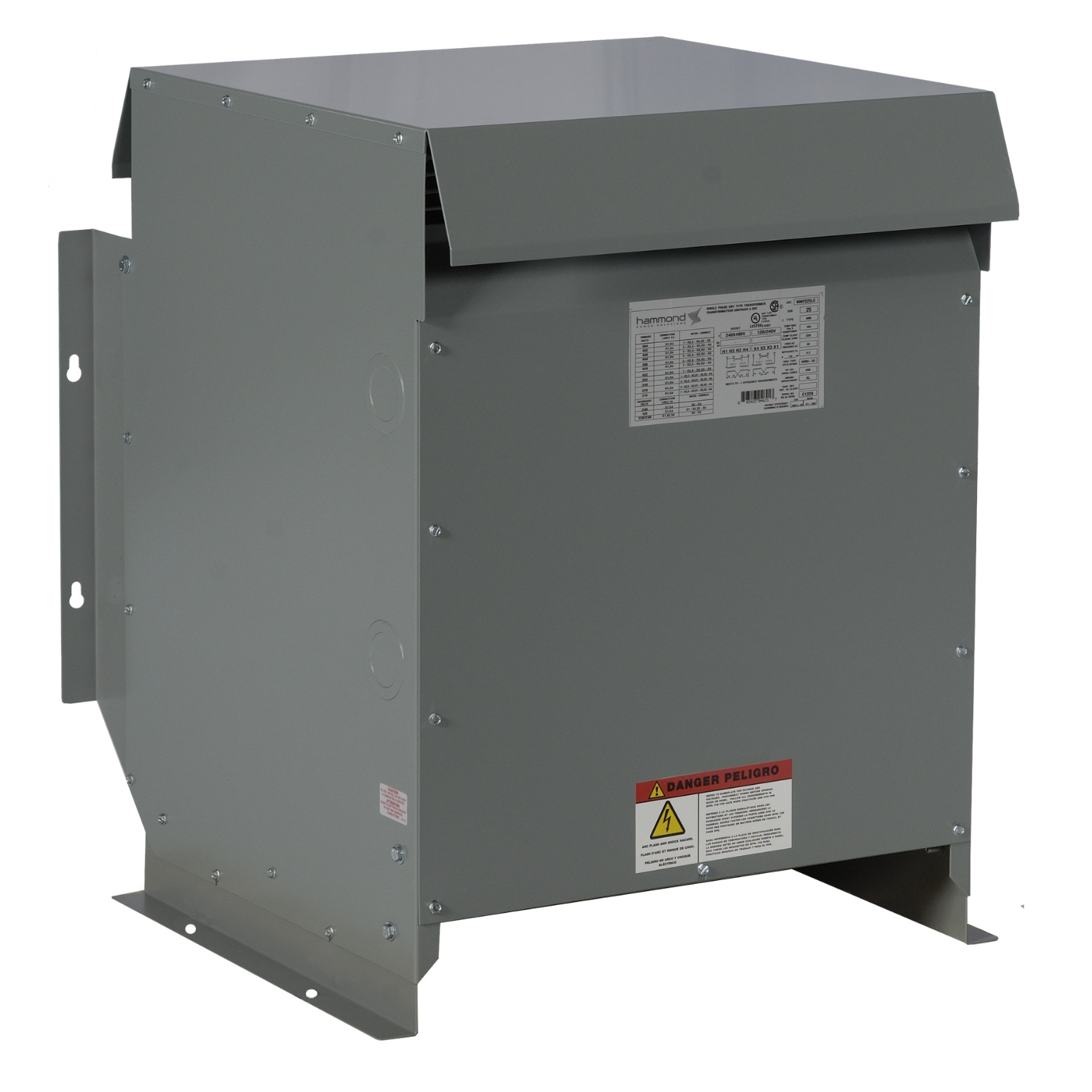

Image provided may only be a representation of final product and may include optional equipment
