Part Number # TE3A0145KK
SKU # 2460895
TE3A0145KK
Hammond Power Solutions TE3A0145KK
Part Number # TE3A0145KK
SKU # 2460895
$15047.62 / Each
Typical price:$18960.00 / Each
Hammond Power Solutions TE3A0145KK Key Features
| Brand: | Hammond Power Solutions |
|---|---|
| Part Number # : | TE3A0145KK |
| SKU #: | 2460895 |
| Dimensions: | 36 in H x 28.3 in W x 27 in D |
| Efficiency: | 98.82% |
| Enclosure Type: | NEMA 3R |
| Frequency Rating: | 60 Hz |
| Insulation: | 200 deg C |
| Phase: | 3 |
| Primary Voltage: | 480 Delta V AC |
| Secondary Voltage: | 480Y/277 V AC |
| Type: | Aluminum Wound |
| Connection type: | Lug/Pad |
| Country of origin: | CA|MX|US |
| Mounting type: | Floor |
| Manufacturer Name: | Hammond Power Solutions |
| UNSPSC: | 39121029 |
| UPC: | 00803423143824 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$15047.62 / Each
Typical price:$18960.00 / Each
Quantity:
Hammond Power Solutions TE3A0145KK
Brand: Hammond Power Solutions
Part Number: TE3A0145KK
Additional Description: HPS -TE3A0145KK D16/NRC19 DIT 3PH 145kVA480D-480Y/277VAL
Catalog Description: 600V Class Three Phased DOE2016 and NRCan 2019 Compliant Energy Efficient Drive Isolation Transformer 145kVA 480D-480Y/277 V AL 60Hz 3R
TE3A0145KK Application
For Variable Speed DrivesTE3A0145KK Item Features
- Core is coated to prevent the ingress of moisture
- Cores are precision cut to close tolerances which eliminates burrs and improves performance
- Manufactured from quality non-aging, cold rolled, silicon steel laminations using state-of-the-art equipment
- Precision wound with copper or aluminum conductors that are electrically balanced to minimize axial forces during short-circuit conditions
- Robust interface between core & coils for better short circuit performance
- Standard integral floor and wall mounting brackets up to 51kVA allow for faster installation
TE3A0145KK Standards
CSA Certified|UL Listed|PROP65SKU #2460895Part Number #TE3A0145KKUNSPSC39121029UPC00803423143824

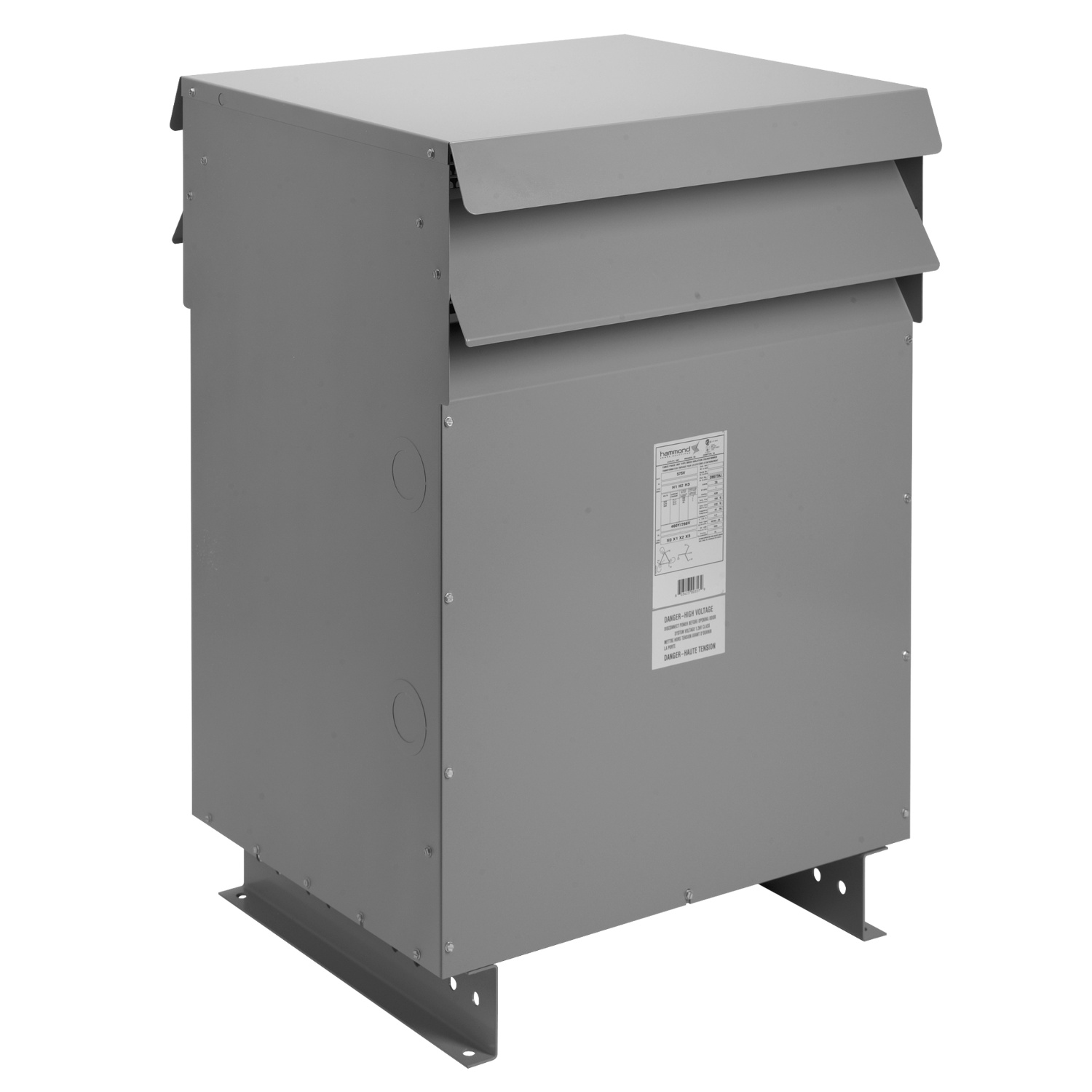

Image provided may only be a representation of final product and may include optional equipment
