Part Number # 116-01815
SKU # 2443325
116-01815
Hellermann Tyton 116-01815
Part Number # 116-01815
SKU # 2443325
Hellermann Tyton 116-01815 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 116-01815 |
| SKU #: | 2443325 |
| Bundle Diameter: | 1.5 to 22 mm |
| Series: | T18R |
| Temperature Rating (Degrees F): | -40 to 85 deg C |
| Thickness: | 1 mm |
| Type: | Inside Serrated Standard |
| Country of origin: | SG |
| Length: | 101.6 mm |
| Material: | Polyamide 6.6 |
| Width: | 2.45 mm |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121703 |
| UPC: | 00089306392088 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 116-01815
Brand: Hellermann Tyton
Part Number: 116-01815

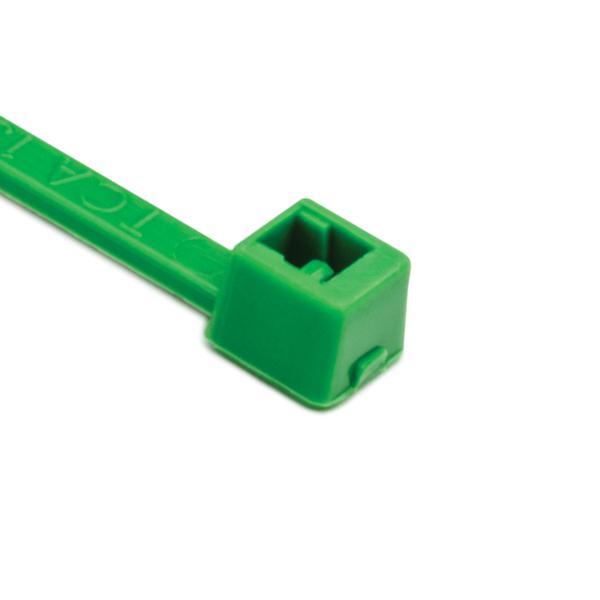

HellermannTyton Cable Tie, Inside Serrated Standard, Series: T18R, 101.6 mm Length, 2.45 mm Width, 1 mm Thickness, 1.5 to 22 mm Bundle Dia, Plastic Pawl, 80 N Tensile, -40 to 85 deg C, Polyamide 6.6, Green
Additional Description: TYTO-116-01815 CABLE TIE, 4"" LONG, UL RATED, 18LB TENSILE STRENGTH, PA66, GREEN, 100/PKG
Catalog Description: T-Series Cable Ties feature inside serrations to provide a positive hold on wire and cable bundles. The head design guarantees high tensile strength and a low insertion force. The bent tail design allows quick and simple installations by hand. For high-volume applications, tensioning tools are available to ensure consistent and safe installation.
116-01815 Application
Electronic Industry, Aerospace Industry and Defense Industry Applications116-01815 Item Features
- Engineered and manufactured for maximum performance and quality
- Inside serration for a strong grip onto bundles
- Bent tail allows for simpler insertion
116-01815 Standards
RoHS Compliant|ANSI/UL 1565|ANSI/UL 62275|ANSI/UL 746B|UL File No. E85319|IEC 62275:2006|ELV Compliant|UL 94-V2 Flammability RatingSKU #2443325Part Number #116-01815UNSPSC39121703UPC00089306392088
Image provided may only be a representation of final product and may include optional equipment
