Part Number # 148-90040
SKU # 2446008
148-90040
Hellermann Tyton 148-90040
Part Number # 148-90040
SKU # 2446008
Hellermann Tyton 148-90040 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 148-90040 |
| SKU #: | 2446008 |
| Dimensions: | 16.5 mm L x 28 mm W x 7.7 mm H |
| Series: | HCPM-6 |
| Specifications: | 24 A Current, 11 mm L Stripping, 6-Conductor |
| Temperature Rating (Degrees F): | -30 to 85 deg C |
| Type: | 6-Port Double Spring |
| Wire Size: | 22 to 12 AWG, 22 to 14 AWG |
| Wire Type: | Solid Copper/Tin Dipped Stranded Copper |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39131707 |
| UPC: | 00089306392422 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 148-90040
Brand: Hellermann Tyton
Part Number: 148-90040

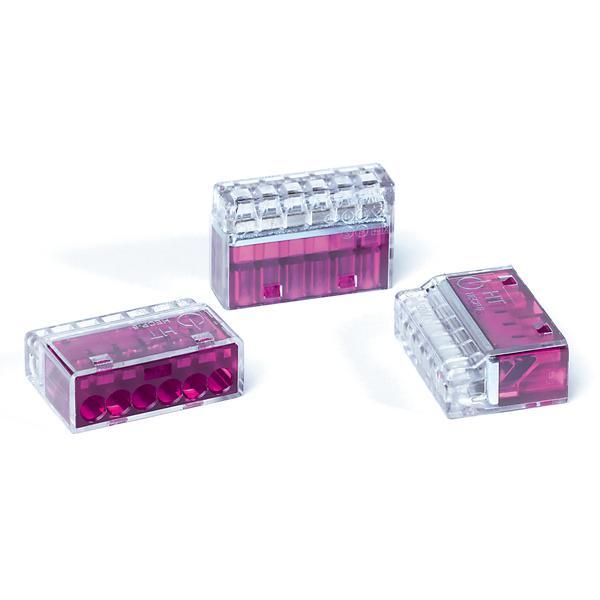

HellermannTyton HelaCon Plus Mini Push-In Connector, 6-Port Double Spring, Series: HCPM-6, Solid Copper/Tin Dipped Stranded Copper Wire, 22 to 12 AWG, 22 to 14 AWG Wire, 600 VAC, 24 A Current, 11 mm L Stripping, 6-Conductor, -30 to 85 deg C, Polycarbonate, Transparent/Violet, 16.5 mm L x 28 mm W x 7.7 mm H
Additional Description: TYTO-148-90040 HELACON PLUS MINI, PUSH-IN STYLE WIRE CONNECTOR, DOUBLE SPRING, 6-PORT, (PIECE), VIOLET, 50/PKG
Catalog Description: HelaCon Plus Mini Wire Connectors replace traditional twist-on wire connectors. They provide faster, easier and more reliable connection and distribution of cable and conductors in electrical installation applications. Mini connectors have a compact footprint and can be applied tool-free using convenient, push-in simplicity. Internal spring technology is approved for solid and stranded wires.
148-90040 Application
Electrical Installation, Shipbuilding and Telecommunication Applications148-90040 Item Features
- Easy access to voltage test entry and innovative port shape design
- Correct installation can be visually checked through transparent housing
- Different color codes for easy identification of size
- Allows different conductor diameters in each entry
- Safe application, installation and maintenance
- Double spring technology for safe, secure and reliable connections
- Smaller footprint fits in tight spaces
- Low insertion force makes installation of solid or stranded copper wire fast and easy
- Each port accepts multiple wire diameters for flexible applications
- https://youtu.be/rad8cj5KR2E
148-90040 Standards
RoHS Compliant|HS Compliant|CE Certified|cULus Listed|ENEC Listed|Intertek Semko Certified|cULus Recognized|ELV Compliant|2006/65/EC|ANSI/UL 486-A|ANSI/UL 486-B|ANSI/UL 486-C|cULus EN 60998-2-2:2004|EN 60998-2-2:201|UL File No. E316080|UL 94-V-0 Flammability RatingSKU #2446008Part Number #148-90040UNSPSC39131707UPC00089306392422
Image provided may only be a representation of final product and may include optional equipment
