148-90067

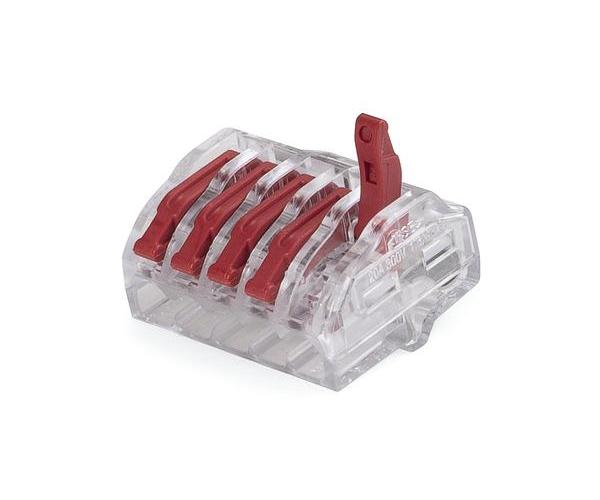

Hellermann Tyton 148-90067 HCRN-5 5 Conductors Push-In Connector, Solid/Stranded Wire, Polycarbonate
Part Number # 148-90067
SKU # 2442428
$184.72 / Each
Typical price:$215.50 / Each
Hellermann Tyton 148-90067 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 148-90067 |
| SKU #: | 2442428 |
| Dimensions: | 14 mm H x 20.5 mm W x 26 mm L |
| Series: | HCRN-5 |
| Specifications: | 32 A Current, 10 mm L Stripping |
| Temperature Rating (Degrees F): | -30 to 85 deg C |
| Type: | 5 Conductors |
| Wire Type: | Solid/Stranded |
| Color: | Transparent |
| Country of origin: | CN |
| Material: | Polycarbonate |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39131707 |
| UPC: | 00089306472667 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$184.72 / Each
Typical price:$215.50 / Each
Quantity:
- HELLERMANNTYTON, 148-90067, Push-In Connector, 5 Conductors, Series: HCRN-5, Solid/Stranded Wire, 450 V, Specifications: 32 A Current, 10 mm L Stripping, -30 to 85 deg C, Polycarbonate, Transparent, 14 mm H x 20.5 mm W x 26 mm L Dimensions
148-90067 Item Features
- Quick release simplifies insertion and removal of wires for fast, safe and secure operation
- Connects solid and stranded wires within same housing for versatile wire management
- Clear housing eases inspection with visual verification that wires have been inserted properly
148-90067 Standards
RoHS Compliant|cULus Listed|ELV Compliant|UL File No. E316080|UL 94-V-0 Flammability RatingSKU #2442428Part Number #148-90067UNSPSC39131707UPC00089306472667
