Part Number # 151-02104
SKU # 2446005
151-02104
Hellermann Tyton 151-02104
Part Number # 151-02104
SKU # 2446005
Hellermann Tyton 151-02104 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 151-02104 |
| SKU #: | 2446005 |
| Base Length: | 3-1/2 in |
| Base Width: | 1.4 in |
| Maximum Tie Width: | 1/2 in |
| Type: | High Torque |
| Country of origin: | MX |
| Material: | Polyamide 6.6 |
| Mounting type: | Threaded |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121717 |
| UPC: | 00089306414179 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 151-02104
Brand: Hellermann Tyton
Part Number: 151-02104

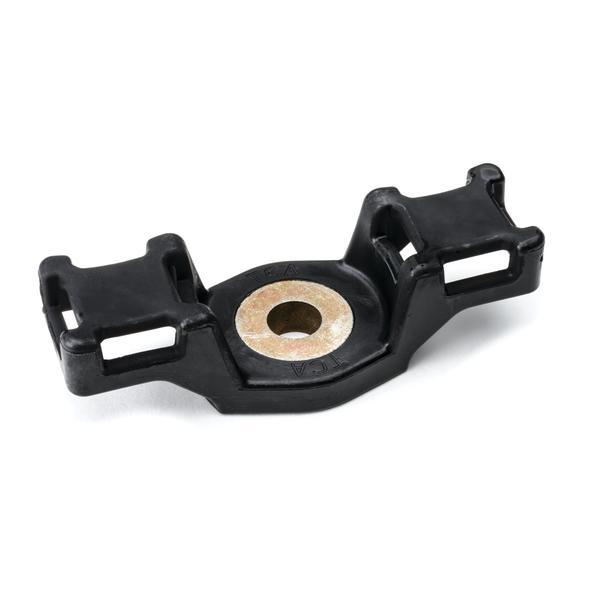

HellermannTyton Double Cable Tie Mount, High Torque, 4-Way Tie Entry, Threaded Mounting, 1/2 in Maximum Tie Width, 3-1/2 in Base Length, 1.4 in Base Width, Polyamide 6.6, Black
Additional Description: TYTO-151-02104 HIGH TORQUE DOUBLE MOUNT, 4-WAY, MOUNTING HOLE .375"", MAX TORQUE 114.0 LB - FT, PA66HIRHSUV, BLACK, 100/PKG
Catalog Description: High Torque Double Mounts are designed for use with power assisted impact wrenches and are molded with a metal bushing to withstand the forces required to tighten grade 8 bolts. Mounts are designed for routing multiple bundles with HellermannTyton heavy duty T250, T255, and wide strap cable ties to harness wires and hoses. The bundle is secured directly over the mounting fastener. The arched saddle surface allows for a broad surface contact with the bundle, minimizing pinching and crushing of the bundles. Mounts accept all standard cable ties up to .5" wide.
151-02104 Application
Indoor/Outdoor Applications151-02104 Item Features
- Arched H-profile surface allows for broad surface contact with the bundle, minimizing pinching and crushing of the bundles
- These mounts contain a small tab inside the mounting hole to temporarily engage the threads which allows assemblers to pre-install the mount on a stud with a washer and nut
151-02104 Standards
RoHS Compliant|UL 94-HB Flammability Rating|REACH CompliantSKU #2446005Part Number #151-02104UNSPSC39121717UPC00089306414179
Image provided may only be a representation of final product and may include optional equipment
