Part Number # 170-03104
SKU # 2456755
170-03104
Hellermann Tyton 170-03104
Part Number # 170-03104
SKU # 2456755
Hellermann Tyton 170-03104 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 170-03104 |
| SKU #: | 2456755 |
| Sleeve Diameter: | 1/2 in |
| Sleeve Length: | 100 ft |
| Temperature Rating (Degrees F): | -103 to 302 deg F |
| Type: | Type BSHLR120 Plenum Rated Expandable |
| Country of origin: | US |
| Material: | Polyamide 6.6 |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39131602 |
| UPC: | 00089306338116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 170-03104
Brand: Hellermann Tyton
Part Number: 170-03104

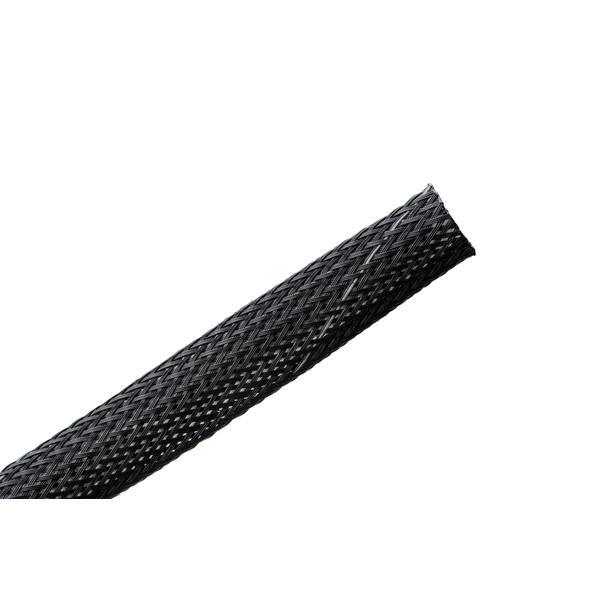

HellermannTyton Halar® Braided Sleeving, Type BSHLR120 Plenum Rated Expandable, 1/2 in Sleeve Dia, 100 ft Sleeve Length, -103 to 302 deg F, Flammability: FAR 25UL VW-1, Polyamide 6.6, Black
Additional Description: TYTO-170-03104 PLENUM RATED EXPANDABLE BRAIDED SLEEVING (HALAR), 0.5" DIA, BLACK, 100 FT/REEL
Catalog Description: Halar self-extinguishing sleeving is used where flammability, high temperature endurance and low outgassing are the primary concern. This sleeving is made from strands of high temperature, flame resistant Halar monofilaments that are able to resist a wide range of corrosive chemicals and organic solvents. Its low flame spread and smoke generation properties make it the perfect option for use in technologically advanced applications, such as those in the automotive, aerospace and vital military markets.
170-03104 Item Features
- Resists gasoline and engine chemicals
- Exceeds requirements of FMVSS 302 as well as aviation industry requirements of FAR25
- Technically advanced monofilament material is rated as low smoke, flame-resistant and can withstand exposure to Cobalt 60 radiation
- Meets requirements for use in plenum applications
- Expands up to 150 Percent for economical and expeditious installation
170-03104 Standards
ARRA Compliant|RoHS Compliant|Meets NFPA 262 Specification|REACH Compliant|cULus Recognized|UL Listed|ANSI/UL 746B|UL 1441|UL 746A|UL 2024|CSA ApprovedSKU #2456755Part Number #170-03104UNSPSC39131602UPC00089306338116
Image provided may only be a representation of final product and may include optional equipment
