Part Number # 309-60118
SKU # 2443278
309-60118
Hellermann Tyton 309-60118
Part Number # 309-60118
SKU # 2443278
Hellermann Tyton 309-60118 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | 309-60118 |
| SKU #: | 2443278 |
| Shrink Ratio: | 2:1 |
| Shrink Temperature: | 212 deg F |
| Temperature Rating (Degrees F): | -67 to 275 deg F |
| Type: | Type TFN21-2.4/1.2 Flexible Non-Adhesive |
| Wall Thickness Recovered: | 0.019 in |
| Country of origin: | CN |
| Length: | 1000 ft |
| Material: | Cross Linked Polyolefin |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121723 |
| UPC: | 00089306374077 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton 309-60118
Brand: Hellermann Tyton
Part Number: 309-60118
HellermannTyton Heat Shrink Tubing, Type TFN21-2.4/1.2 Flexible Non-Adhesive, 600 VAC, 0.094 in Inner Dia Expanded, 0.047 in Inner Dia Recovered, Thin Wall, 0.019 in Wall Thickness Recovered, 2:1 Shrink, 1000 ft Length, -67 to 275 deg F, 212 deg F Shrink, Cross Linked Polyolefin, Black
Additional Description: TYTO-309-60118 HEAT SHRINK TUBING, BULK REEL, 2:1 SHRINK RATIO, 3/32"", 2.4/1.2 DIA, PO, BLACK, 1000 FT/REEL
Catalog Description: TFN21 is a highly flexible thin wall heat shrink tubing with a 2 to 1 shrink ratio and excellent flame retardant properties. In addition to providing insulation and abrasion protection for wires and cables, the polyolefin material also offers resistance to oils, solvents and chemicals. Available in mini reels, bulk reels and sticks, for small to large volume applications.
309-60118 Application
White Goods/Appliances, Mass Transit, Renewable Energy, Telecommunications, Automotive, Electrical and Electronics Applications309-60118 Item Features
- Thin, 2 to 1 shrink ratio tubing provides insulation and abrasion protection for wires and cables
- Flexible-yet-durable material resists most common oils, chemicals and fluids
- Available in a variety of diameters and colors for identifying and marking wires and cables
309-60118 Standards
RoHS Compliant|cULus Recognized|UL Recognized|ANSI/UL 224|REACH Compliant (Article 33)|SAE-AMS-DTL-23053/5 Class 1 and 3|UL224 VW-1 Flammability RatingSKU #2443278Part Number #309-60118UNSPSC39121723UPC00089306374077

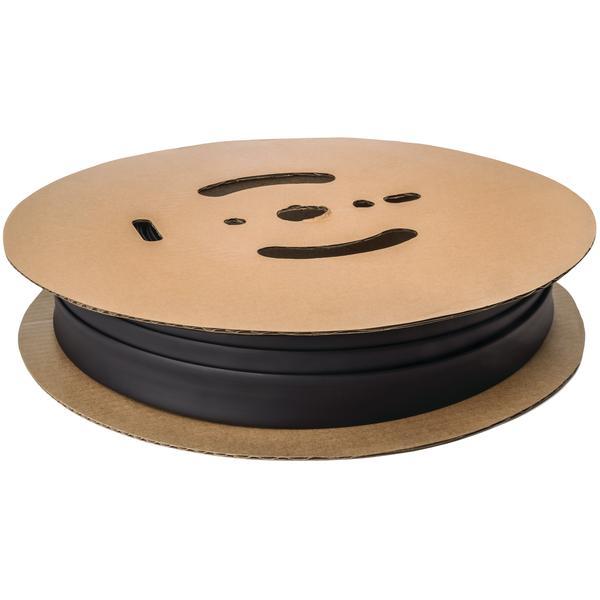

Image provided may only be a representation of final product and may include optional equipment
