Part Number # CTT20R0C2
SKU # 2433330
CTT20R0C2

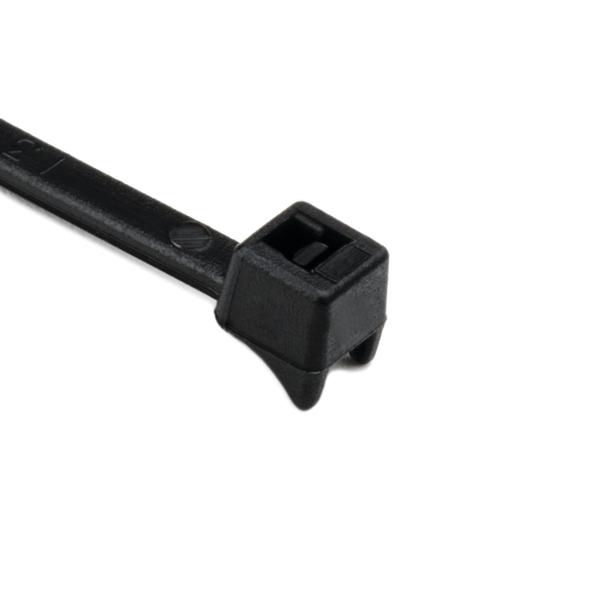

Hellermann Tyton CTT20R0C2 Inside Serrated Clamp Tie, 4 in L x 0.1 in W, Polyamide 6.6, Black
Part Number # CTT20R0C2
SKU # 2433330
Hellermann Tyton CTT20R0C2 Key Features
| Brand: | Hellermann Tyton |
|---|---|
| Part Number # : | CTT20R0C2 |
| SKU #: | 2433330 |
| Bundle Diameter: | 0.06 to 0.51 in |
| Temperature Rating (Degrees F): | -40 to 185 deg F |
| Type: | Inside Serrated |
| Country of origin: | MX |
| Length: | 4 in |
| Material: | Polyamide 6.6 |
| Width: | 0.1 in |
| Manufacturer Name: | HellermannTyton |
| UNSPSC: | 39121703 |
| UPC: | 00089306014300 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hellermann Tyton CTT20R0C2 Inside Serrated Clamp Tie, 4 in L x 0.1 in W, Polyamide 6.6, Black
Brand: Hellermann Tyton
Part Number: CTT20R0C2
HellermannTyton Clamp Tie, Inside Serrated, 4 in Length, 0.1 in Width, 0.06 to 0.51 in Bundle Dia, Plastic Pawl, 20 lb Tensile, -40 to 185 deg F, Polyamide 6.6, Black
Additional Description: TYTO-CTT20R0C2 CLAMP TIE, 4"" LONG, 20LB TENSILE STRENGTH, PA66, BLACK, 100/PKG 112-51900
Catalog Description: HellermannTyton clamp tie has triangular shaped tabs extending beneath the head for optimal surface contact and complete circumferential compression to 360 degrees. The bent tail design allows quick and simple installations by hand. The clamps are recommended for soft rubber hose applications including fuel, water, and air vaccuum lines.
CTT20R0C2 Application
Automotive Industry and Defense Industry ApplicationsCTT20R0C2 Item Features
- Head design contains clamping rails to provide full circumferential compression around bundles
- Bent tail allows for quick insertion into head
CTT20R0C2 Standards
RoHS Compliant|UL Listed|cULus Recognized|UL 94-V2 Flammability RatingSKU #2433330Part Number #CTT20R0C2UNSPSC39121703UPC00089306014300
Image provided may only be a representation of final product and may include optional equipment
