Part Number # 07401001
SKU # 2350816
07401001

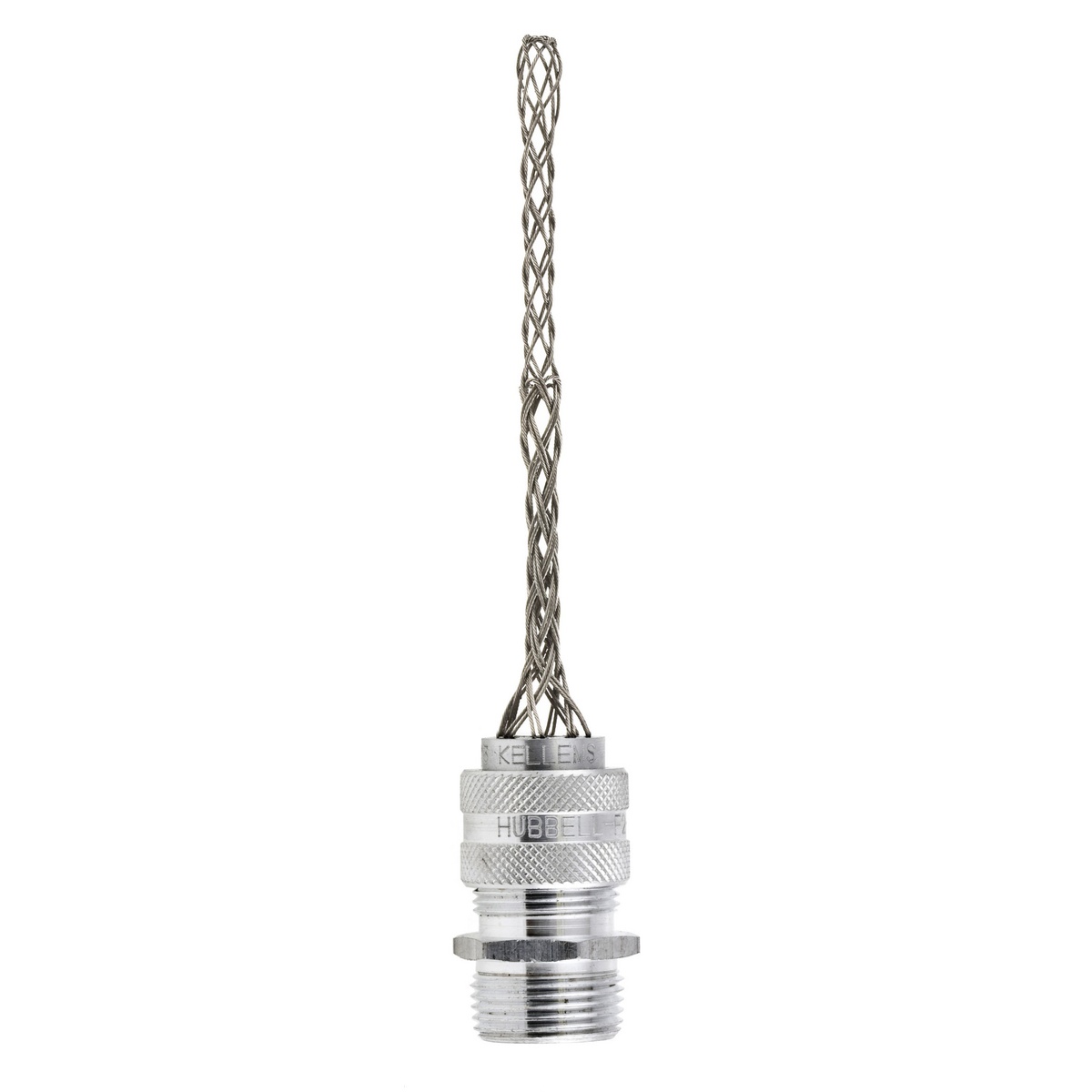

Hubbell 07401001 Deluxe Cord Grip
Part Number # 07401001
SKU # 2350816
$74.57 / Each
Typical price:$96.35 / Each
Hubbell 07401001 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 07401001 |
| SKU #: | 2350816 |
| Cable Openings: | 0.25 to 0.312, 0.25 to 0.312 in |
| Dimensions: | 0.88 in Dia x 1.36 in L |
| Mesh Length: | 2-3/4 in |
| Number of Conductors: | 1 |
| Temperature Rating (Degrees F): | -30 to 225, -30 to 240 deg F |
| Trade Size: | 3/8 in, 3/8 in NPT |
| Type: | Form 1 Liquidtight Standard Duty Strain Relief, Form 1 Standard Duty Liquidtight Strain Relief |
| Cable type: | Jacketed |
| Connection type: | MNPT Straight, Straight Male |
| Country of origin: | PR |
| Material: | Aluminum/Stainless Steel |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121431 |
| UPC: | 00783585321813 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$74.57 / Each
Typical price:$96.35 / Each
Quantity:
- Hubbell Wiring Device-Kellems, 07401001, Deluxe Cord Grip, Form 1 Liquidtight Standard Duty Strain Relief, 3/8 in Trade, 1 Conductors, Cable Openings: 0.25 to 0.312 in, Jacketed Cable, MNPT Straight Connection, 2-3/4 in Mesh Length, Aluminum/Stainless Steel, Metallic, -30 to 240 deg F, 0.88 in Dia x 1.36 in L Dimensions
07401001 Application
For wet location when used with a listed nylon washer between box and fitting, hazardous location and insulated cables applications07401001 Item Features
- Provides a liquidtight seal
- Multi-weave grip gives cable arc of bend control minimizing cable damage and extending cable life
- Helps to prevent cable pull-outs
- Endless weave provides easy cable/flexible conduit installation
- An NPT and PG threaded body allows easy attachment to either threaded hub or knockout in box
- 0.671 to 0.701 in recommended knockout hole
- Corrosion resistant stainless steel mesh with aluminum collar
- For insulated cables
- https://youtu.be/_6b6xIwOUx4
07401001 Standards
UL 898D/899D|UL94 HB Flammability Rating|CSA Certified|RoHS CompliantSKU #2350816Part Number #07401001UNSPSC39121431UPC00783585321813
Image provided may only be a representation of final product and may include optional equipment
