Part Number # 1221W
SKU # 2164783
Image provided may only be a representation of
final product and may include optional equipment
1221W

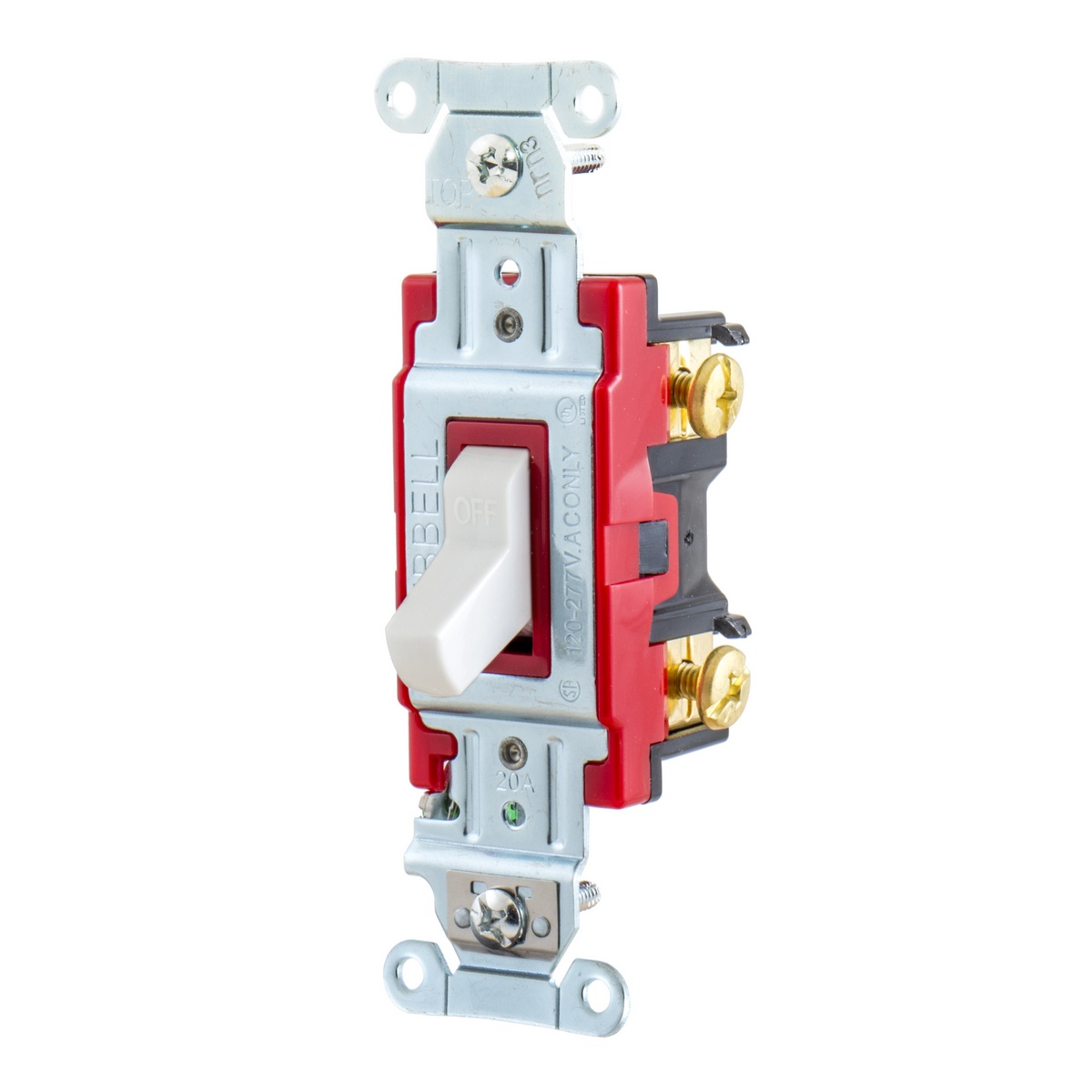

Hubbell 1221W Toggle Switch
Part Number # 1221W
SKU # 2164783
Hubbell 1221W Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 1221W |
| SKU #: | 2164783 |
| Actuator: | Toggle |
| Amperage Rating: | 20, 20 A |
| Contact Configuration: | 2-Position |
| Dimensions: | 4.18 x 1.49 x 1.83, 4.18 x 1.49 x 1.83 in |
| Environmental Conditions: | -40 to 75, -40 to 75 deg C |
| Mounting: | Screw, Threaded |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Series: | HBL |
| Terminal Type: | Back/Side Wire |
| Type: | 2-Position General Purpose Industrial Grade, 2-Position General Purpose Industrial Grade Standard |
| Country of origin: | CN |
| Material: | Nylon Toggle/Thermoset Body |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122211 |
| UPC: | 00783585835297 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell 1221W Toggle Switch
Brand: Hubbell
Part Number: 1221W
Wiring Device-Kellems Hubbell-PRO Toggle Switch, 2-Position General Purpose Industrial Grade Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 1 Pole, Toggle Actuator, Threaded Mounting, 50000 cycles Operating Cycles, Nylon Toggle/Thermoset Body, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in
Additional Description: HUBW-1221W SWITCH, HUBPRO, 1-POLE, 20A 120/277V, WH
Catalog Description: Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches,General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, White
1221W Item Features
- Steel, zinc plated bridge is corrosion resistant
- Color Coded by Amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
1221W Standards
UL 20|CSA Certified|NEMA WD1|RoHS CompliantSKU #2164783Part Number #1221WUNSPSC39122211UPC00783585835297
