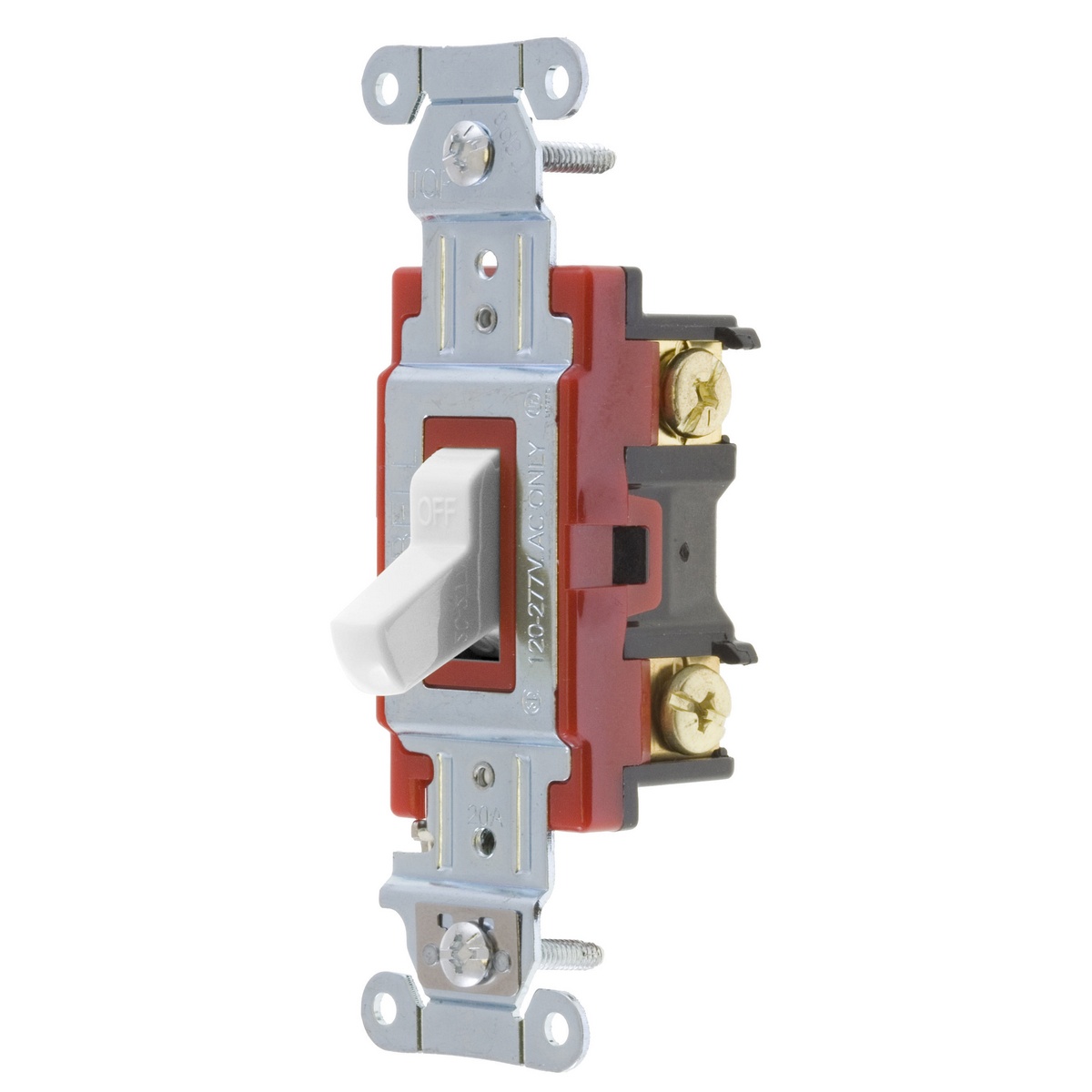

Part #:1222W
SKU #: 2388175
$14.57/EA
Key Features
Part #:1222W
SKU #: 2388175
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 20 A
Contact Configuration: 2-Position
Dimensions: 4.18 x 1.49 x 1.83 in
Environmental Conditions: -40 to 75 deg C
$14.57/EA
- Steel, zinc plated bridge is corrosion resistant
- Color Coded by Amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
Specifications
Brand: Hubbell
Actuator: Toggle
Amperage Rating: 20 A
Contact Configuration: 2-Position
Dimensions: 4.18 x 1.49 x 1.83 in
Environmental Conditions: -40 to 75 deg C
Mounting: Threaded
Number of Poles: 2
Operating Cycles: 50000 cycles
Power Rating: 5540 W
Series: HBL
Terminal Type: Back/Side Wire
Type: 2-Position Heavy Duty Standard
Voltage Rating: 120 to 277 VAC
Color: White
Country of origin: CN
Material: Nylon/Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39122211
UPC: 00783585181417
Item FeaturesIndustrial and General Purpose Applications
Item Features
Item FeaturesRoHS Compliant|UL 20|UL94 V-2 Flammability Rating|CSA Certified|Federal Specification WS896|NEMA WD1
