Brand: Hubbell

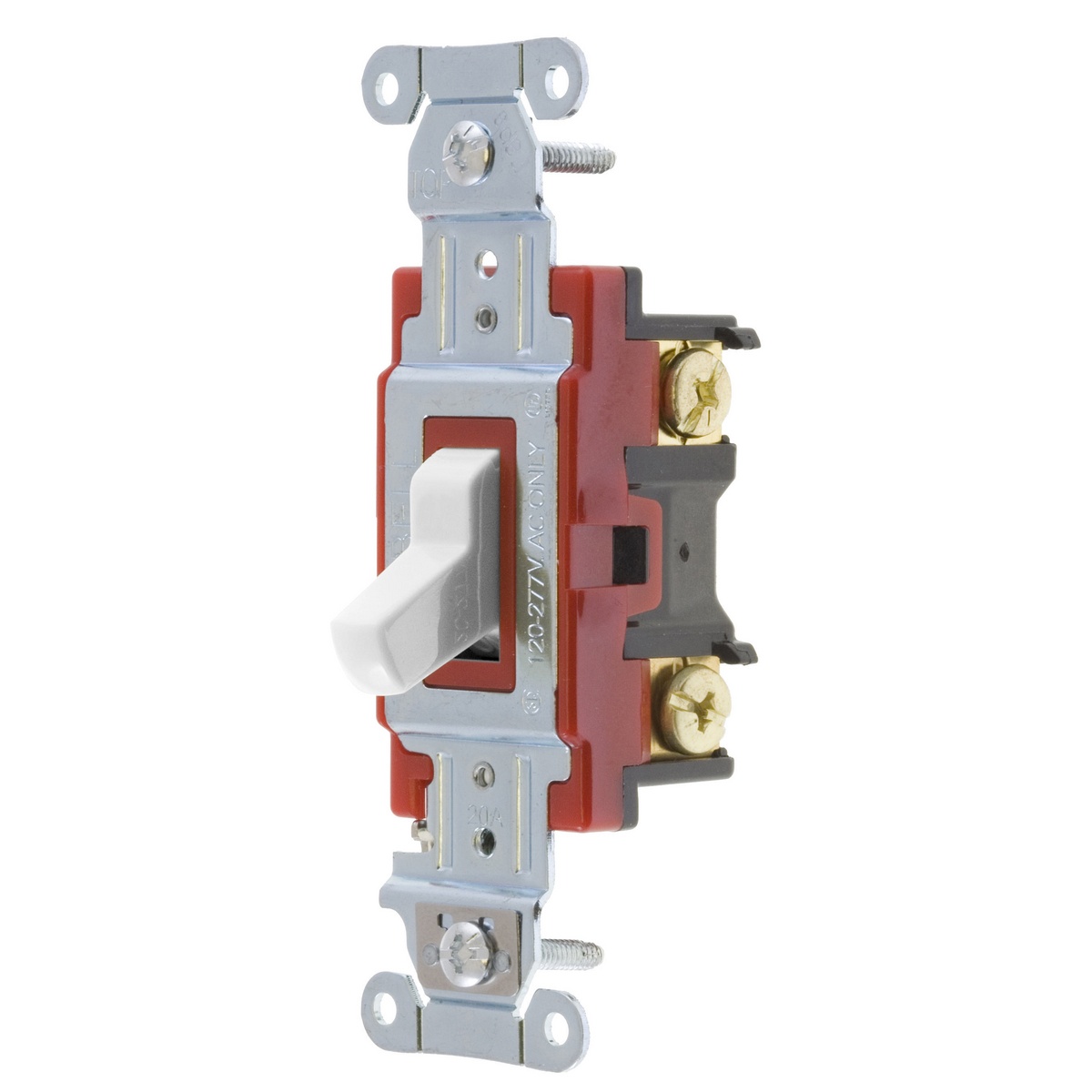

Hubbell 1224W Toggle Switch
Part Number # 1224W
SKU # 2307295
$26.57 / Each
$34.35/Each
Hubbell 1224W Key Features
Brand: Hubbell
Part Number # 1224W
SKU #2307295
Actuator: Toggle
Amperage Rating: 20, 20 A
Contact Configuration: 2-Position
Dimensions: 4.18 in H x 1.49 in W x 1.75 in D, 4.18 x 1.49 x 1.83 in
Environmental Conditions: -40 to 75 deg C, -40 to 75 deg C Temperature
Mounting: Threaded
Number of Poles: 2
Operating Cycles: 50000, 50000 cycles
Power Rating: 1/2 hp, 5540 W, 5540 W
Series: HBL
Terminal Type: Screw
Type: 4-Way General Purpose Heavy Duty Standard
Voltage Rating: 120 to 277 VAC, 120/277
Color: White
Country of origin: CN
Material: Thermoset
Manufacturer Name: Hubbell
UNSPSC: 39122211
UPC: 00783585835372
$26.57 / Each
$34.35/Each
Hubbell 1224W Toggle Switch
Brand: Hubbell
Part Number: 1224W
Wiring Device-Kellems Hubbell-PRO Toggle Switch, 4-Way General Purpose Heavy Duty Standard, 120 to 277 VAC, 20 A, 5540 W Power, 2-Position Contact Configuration, 2 Pole, Toggle Actuator, Threaded Mounting, Screw Terminal, 50000 cycles Operating Cycles, Thermoset, White, Environmental Conditions: -40 to 75 deg C, 4.18 x 1.49 x 1.83 in
Additional Description: HUBW-1224W SWITCH, HUBPRO, 4-WAY, 20A 120/277V, WH 120/277V, WH
Catalog Description: Switches and Lighting Controls, Hubbell- PRO Series, Toggle Switches, General Purpose AC, Four Way, 20A 120/277V AC, Back and Side Wired, White
1224W Application
Industrial Applications1224W Item Features
- Steel, zinc plated bridge is corrosion resistant
- Color Coded by Amperage makes inspection easy even when installed
- Strip gauge for accurate wiring
1224W Standards
CSA Certified|Federal Specification W-S-896|NEMA WD1|UL 20 Listed|RoHS CompliantSKU #2307295Part Number #1224WUNSPSC39122211UPC00783585835372
