- Circuit ID marking area on hospital grade
- Steel mounting strap, self-grounding
- High impact resistant decorator face
- Triple wipe contacts
Specifications
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 3.28 x 1.57 x 1.15 in
Horsepower: 1 hp
NEMA Rating: 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screw
Type: 1-Phase Decorator Duplex Heavy Duty Standard Screw Mount
Voltage Rating: 125 VAC
Color: Brown
Country of origin: US
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585196572

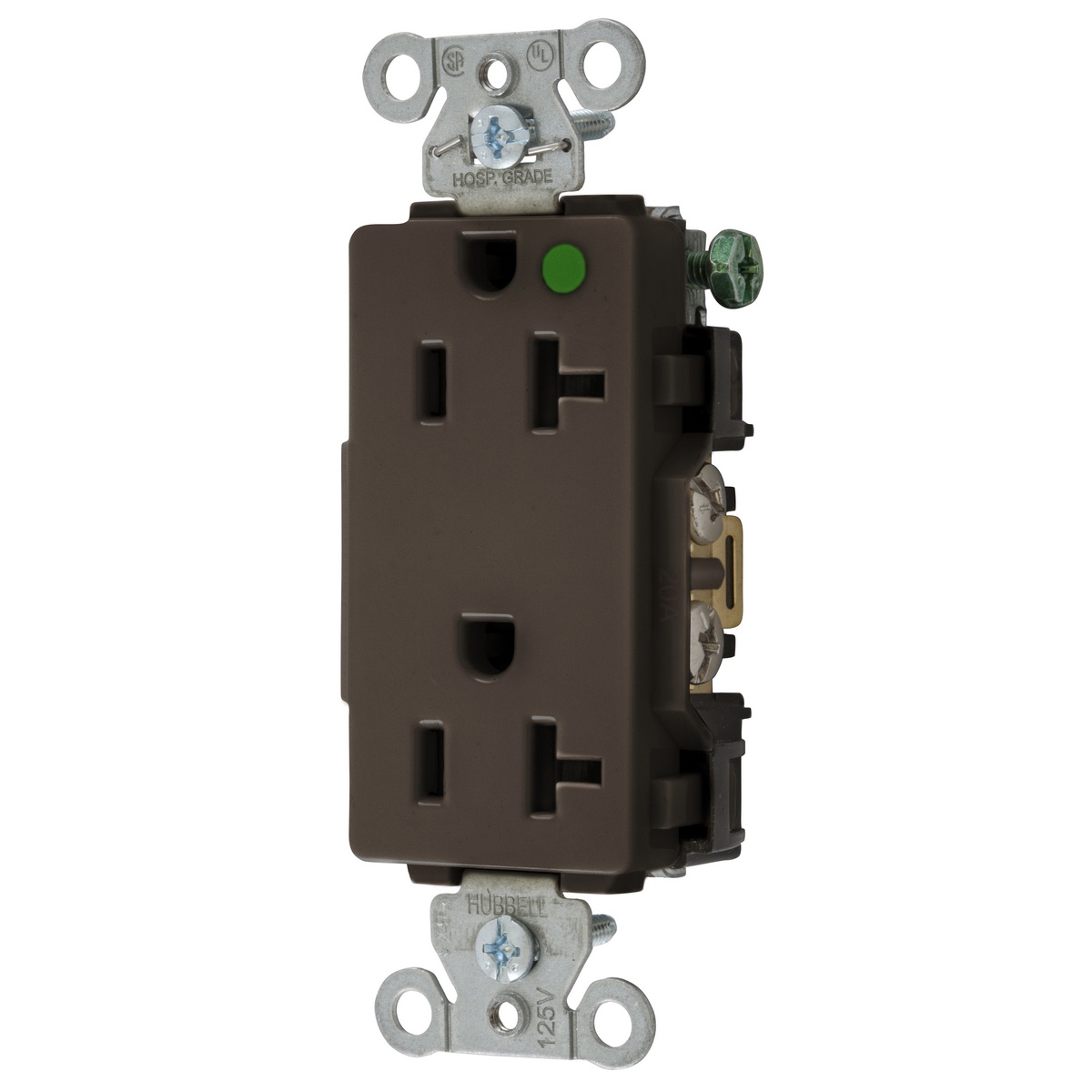

Hubbell 2182 Style Line Straight Blade Receptacle
Wiring Device-Kellems Hubbell-PRO StyleLine® Straight Blade Receptacle, Decorator Duplex Heavy Duty Standard, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Hospital Grade, -40 to 75 deg C, Screw Terminal, Nylon, Brown, 3.28 in H x 1.57 in W x 1.15 in D Dimensions
Additional Description: HUBW-2182 RCPT DECO DUP HG HUBPRO 20A/125V BR
Catalog Description: Straight Blade Devices, Decorator Duplex Receptacle, Hospital Grade, Hubbell-Pro, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Brown.
Item FeaturesIndoor Applications
Item Features
Item FeaturesCSA Certified|Federal Specification WC596|NEMA WD1/WD5 WD6|UL 498
