Part Number # 2FDC-2
SKU # 2351671
Image provided may only be a representation of
final product and may include optional equipment
Brand: Hubbell
2FDC-2

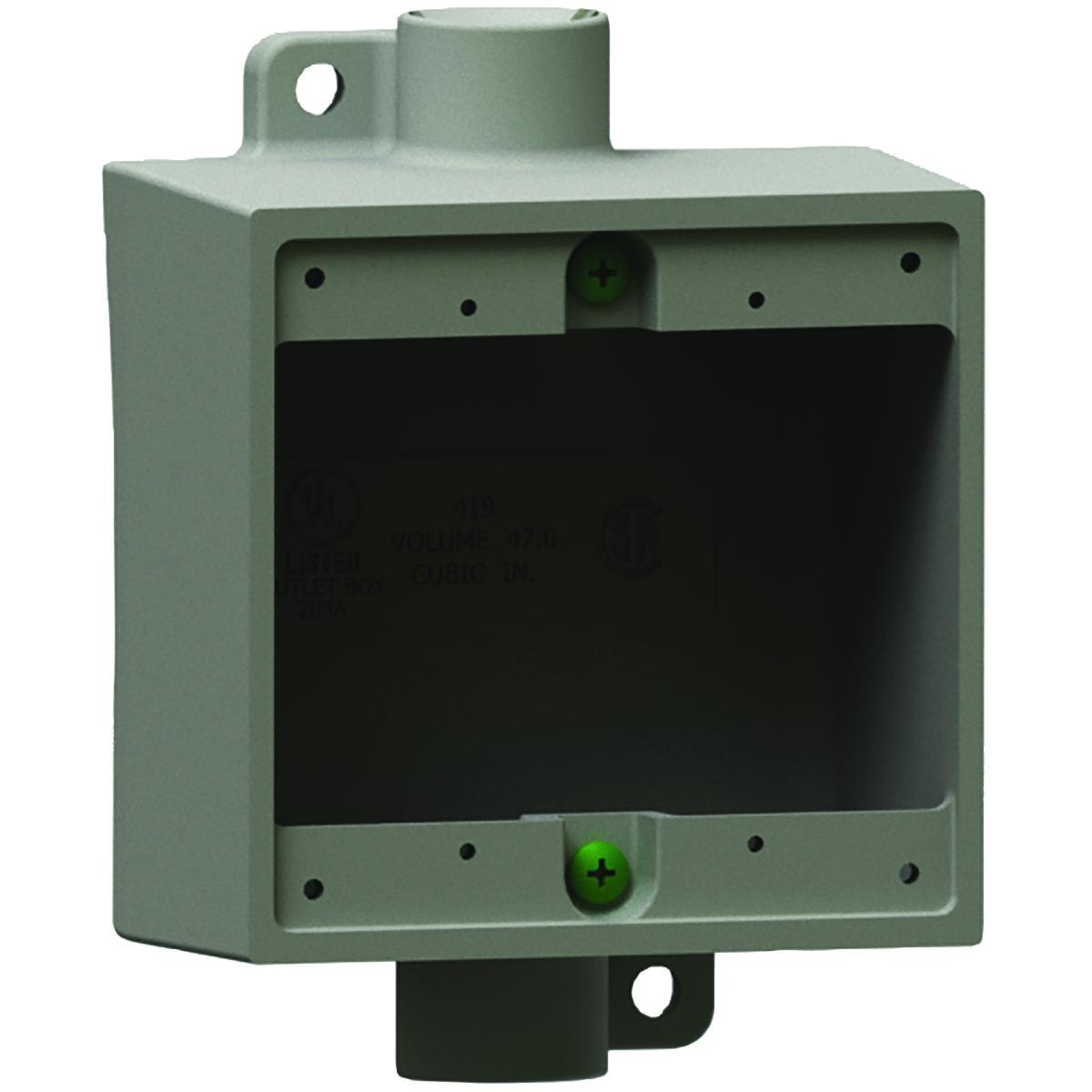

Hubbell 2FDC-2 Cast Device Box
Part Number # 2FDC-2
SKU # 2351671
$130.91 / Each
Typical price:$155.52 / Each
Hubbell 2FDC-2 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 2FDC-2 |
| SKU #: | 2351671 |
| Cable Entry Size: | Hub |
| Capacity: | 50, 50 cu-in |
| Dimensions: | 6-3/8 in H x 4-11/16 in W x 2-15/16 in D |
| Enclosure Type: | NEMA FB-1 |
| Finish: | Powder Coated |
| Hub Size: | 3/4, 3/4 in |
| Hub Style: | Tapered Threaded |
| Number of Gangs: | 2 |
| Number of Outlets: | 2 |
| Series: | 2FS/FD |
| Temperature Rating (Degrees F): | -50 to 60 deg C |
| Type: | Type 2FDC Deep Feed-Through |
| Country of origin: | MX, US |
| Material: | Copper-Free Aluminum |
| Mounting type: | Lug |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121308 |
| UPC: | 00783936150116 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$130.91 / Each
Typical price:$155.52 / Each
Quantity:
Hubbell 2FDC-2 Cast Device Box
Brand: Hubbell
Part Number: 2FDC-2
Killark Cast Device Box, Series: 2FS/FD, 2 Outlets, 2 Gangs, 3/4 in Hub, Tapered Threaded Hub, Hub Cable Entry Size, NEMA FB-1, 50 cu-in, Copper-Free Aluminum, Powder Coated, Gray, 6-3/8 in H x 4-11/16 in W x 2-15/16 in D
Additional Description: KILL-2FDC-2 DEVICE BOX 2GANG DEEP AL 3/4""
Catalog Description: 3/4"Aluminum, 2FDC Type Two Gang Deep Device Box
2FDC-2 Application
For providing access to conductors for maintenance and future system changes, open air cable routing and non-hazardous locations2FDC-2 Item Features
- Accommodates wiring devices and provides opening to splice, tap or pull conductors
- Tapered threads (NPT with integral bushings)
- Internal grounding screw
- Suitable for use in wet locations when used with gasket covers
- Without knockout
- Cast iron is suitable for concrete use
- Electrostatically applied powder coated finish
- 3/4 in mounting hole
2FDC-2 Standards
UL 514A File No. E3397|CSA C22.2 No. 18 File No. LR11852|NEMA FB-1|Federal Specification No. W-C-586D|PROP65: This product can expose you to chemicals including lead and lead compounds, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2351671Part Number #2FDC-2UNSPSC39121308UPC00783936150116
