Hubbell 5252AW Straight Blade Receptacle
Image Disclaimers Message
Hubbell 5252AW Straight Blade Receptacle
Hubbell 5252AW Straight Blade Receptacle
Part #:5252AW
SKU #: 2154382
Key Features
Part #:5252AW
SKU #: 2154382
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 1.406 in W x 1.094 in D x 3.281 in H, 3.281 in H x 1.406 in W x 1.094 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Slender compact design
- Smooth face
- Triple wipe contacts
- 14 to 10 AWG copper stranded or solid conductor only terminal accommodation
- Terminal wire leads identified in accordance with UL 498
- Nylon top and base, PBT base, brass contacts, galvanized steel mounting strap, stainless steel automatic self-grounding staple, zinc plated steel mounting screws
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current at a power factor of 75%
- Traditional face shape
Hubbell 5252AW Straight Blade Receptacle

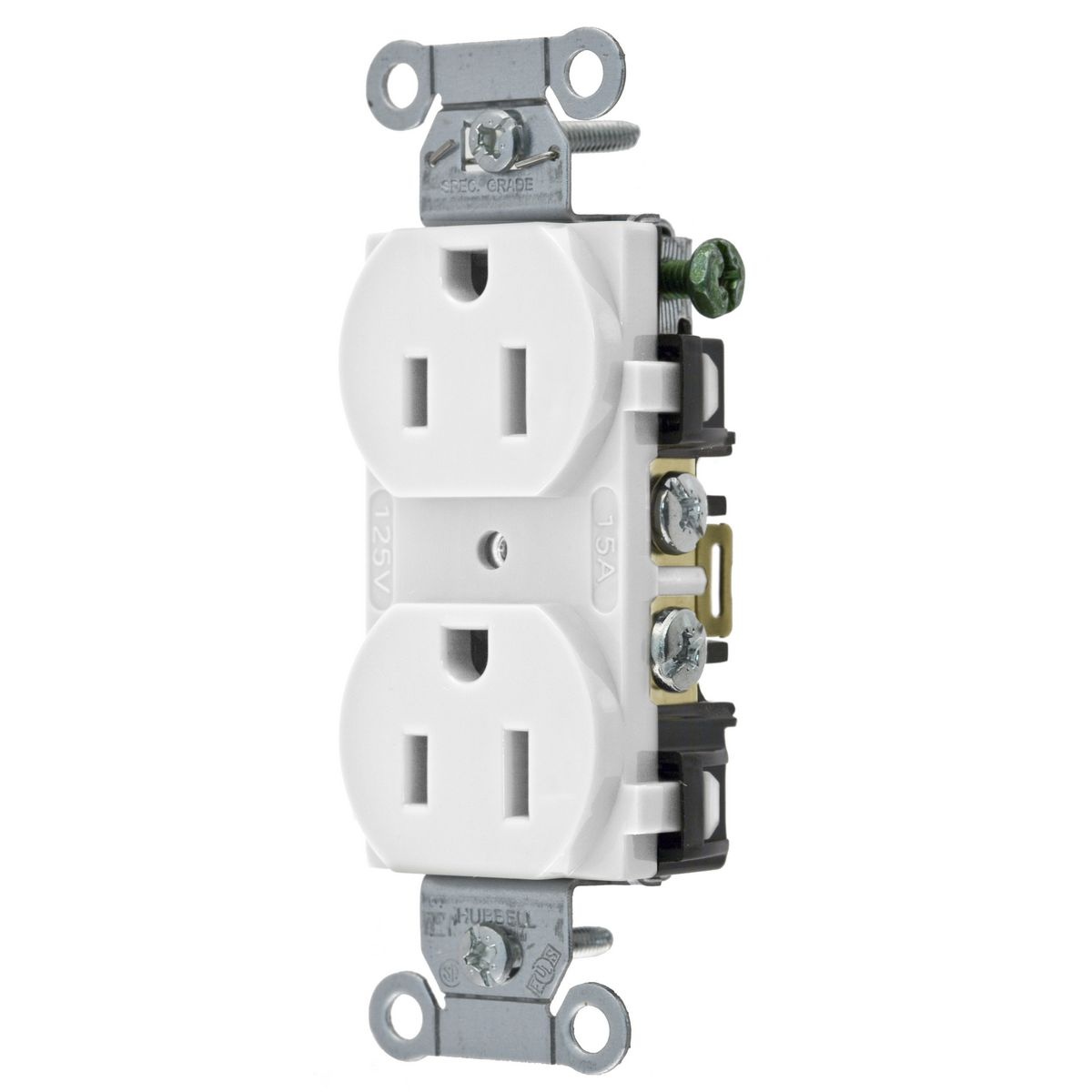

Wiring Device-Kellems Hubbell-PRO Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard Traditional Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Industrial Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, White, 1.406 in W x 1.094 in D x 3.281 in H
Additional Description: HUBW-5252AW RCPT DUP SB HUBPRO 15A 125V SF WH WH , WH 5-15R, WH
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, White
