Part Number # 5262G
SKU # 2249214
5262G

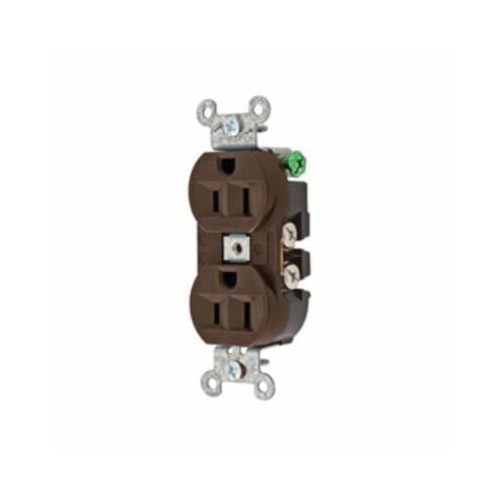

Hubbell 5262G Straight Blade Receptacle
Part Number # 5262G
SKU # 2249214
$85.00 / 10Each
Typical price:$110.00 / Each
Hubbell 5262G Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 5262G |
| SKU #: | 2249214 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.41 in W x 1.09 in D x 3.28 in H |
| Horsepower: | 1/2 hp |
| NEMA Rating: | 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Side Wired |
| Type: | 1-Phase Duplex Heavy Duty Standard Screw Mount |
| Country of origin: | US |
| Material: | Thermoplastic/Composite |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585834955 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$85.00 / 10Each
Typical price:$110.00 / Each
Quantity:
- Hubbell Wiring Device-Kellems Hubbell-PRO, 5262G, Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Standard Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Thermoplastic/Composite, Gray, 1.41 in W x 1.09 in D x 3.28 in H Dimensions
5262G Application
Indoor Applications5262G Item Features
- Nylon face, PBT base, galvanized steel mounting strap, stainless steel automatic self-grounding staple and zinc plated steel mounting screw
- Withstands 2000 VAC minimum dielectric voltage
- Slender/compact design
- 0.03 in brass power contacts, 0.04 in galvanized steel mounting strap
- Triple wipe brass contact
- Hubbell PRO heavy duty receptacle
5262G Standards
RoHS Compliant|CSA File No. 285|NEMA WD1/WD5 WD6|UL 498 File No. E2186|CSA C22.2 No. 42|Federal Specification W-C-596SKU #2249214Part Number #5262GUNSPSC39121406UPC00783585834955
Image provided may only be a representation of final product and may include optional equipment
