Brand: Hubbell

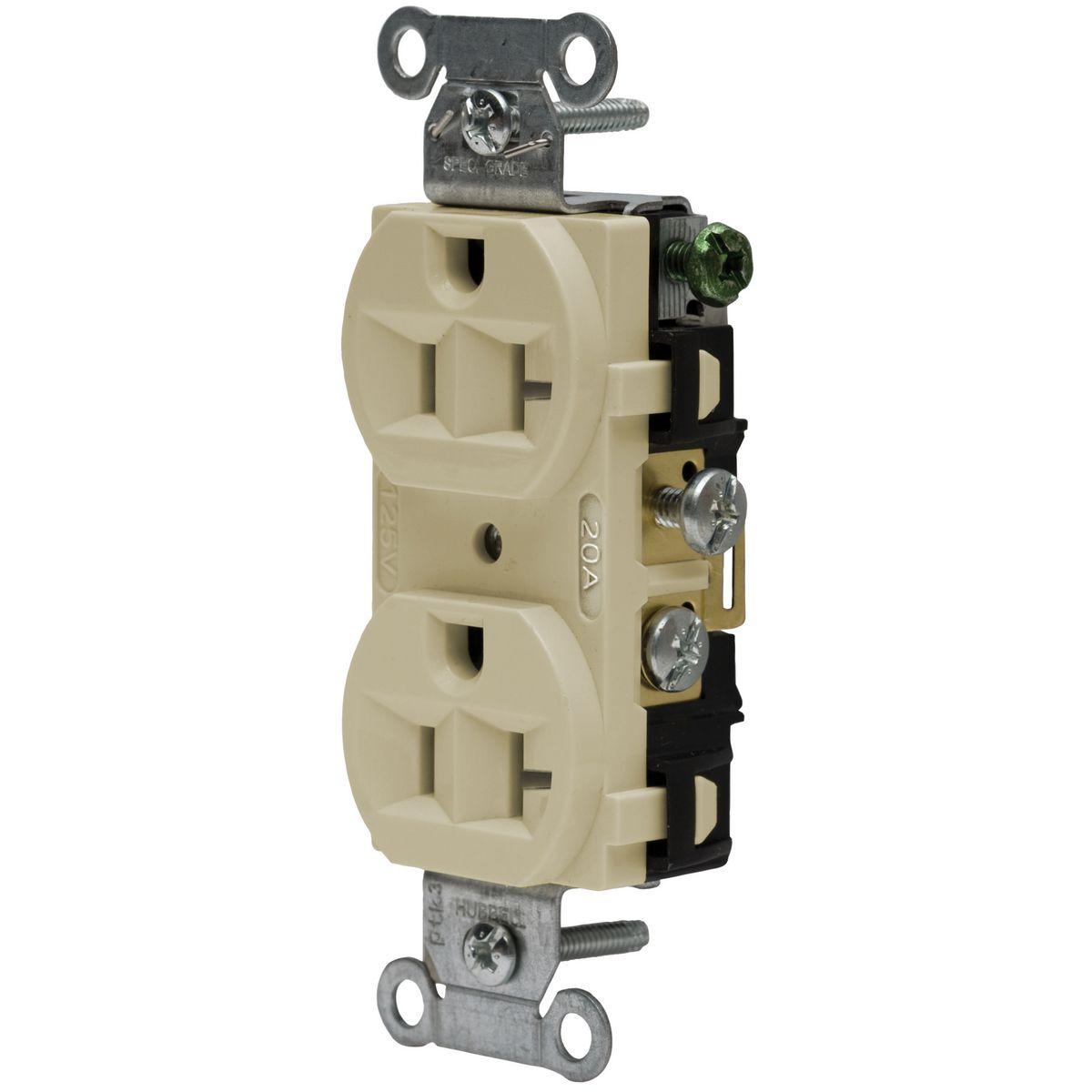

Hubbell 5362AI Straight Blade Receptacle
Image Disclaimers Message
Brand: Hubbell
Hubbell 5362AI Straight Blade Receptacle
Brand: Hubbell
Hubbell 5362AI Straight Blade Receptacle
Part #:5362AI
SKU #: 2410392
$7.21/EA
Key Features
Part #:5362AI
SKU #: 2410392
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 1.569 in W x 1.067 in D
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
$7.21/EA
- Easy access split circuit tab
- Triple wipe contacts
Specifications
Brand: Hubbell
Amperage Rating: 20 A
Dimensions: 1.569 in W x 1.067 in D
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Back/Side Wire
Type: 1-Phase Duplex Heavy Duty Self-Grounding Standard
Voltage Rating: 125 V
Color: Ivory
Country of origin: CN
Material: Composite/Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585530987
Hubbell 5362AI Straight Blade Receptacle
Additional Description: HUBW-5362AI RCPT, DUP SB, HUBPRO, 20A 125V, FG, IV
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory
Item Features
Item FeaturesCSA C22.2 File No. 42/285|CSA Certified|Federal Specification W-C-596|NEMA WD-6 Compliant|UL 94 V-2 Flammability Rating|UL File No. E2186|UL Listed
