Part Number # 5362ALA
SKU # 2410383
5362ALA

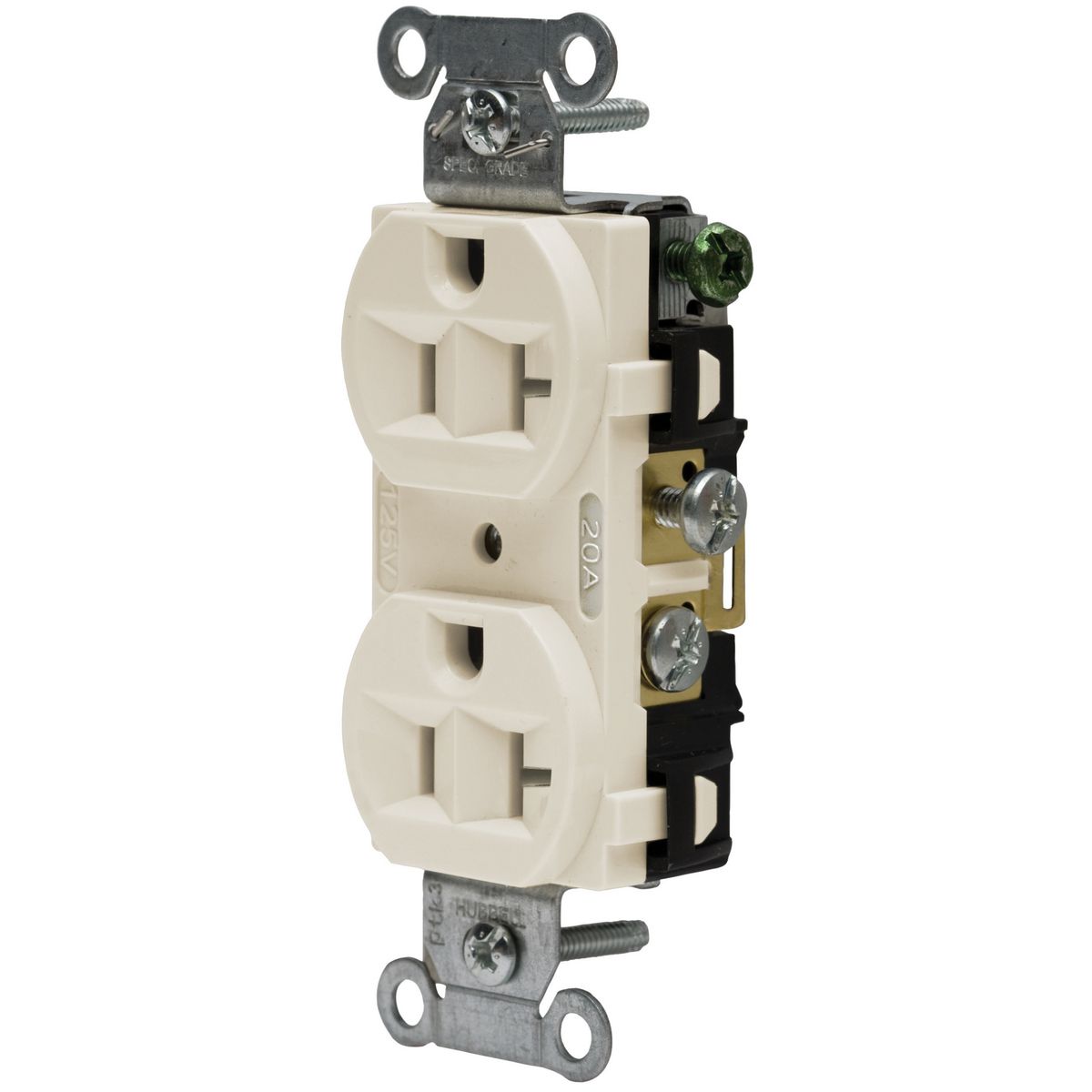

Hubbell 5362ALA Straight Blade Receptacle
Part Number # 5362ALA
SKU # 2410383
$82.10 / 10Each
Typical price:$106.50 / Each
Hubbell 5362ALA Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | 5362ALA |
| SKU #: | 2410383 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.569 in W x 1.067 in D |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | 1-Phase Duplex Heavy Duty Self-Grounding Standard |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585530994 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$82.10 / 10Each
Typical price:$106.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems Hubbell-Pro Straight Blade Receptacle, 1-Phase Duplex Heavy Duty Self-Grounding Standard, 125 V, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Back/Side Wire Terminal, Composite/Thermoplastic, Light Almond, 1.569 in W x 1.067 in D Dimensions
5362ALA Item Features
- Easy access split circuit tab
- Triple wipe contacts
- Wrap-around galvanized steel strap
5362ALA Standards
CSA C22.2 File No. 42/285|CSA Certified|Federal Specification W-C-596|NEMA WD-6 Compliant|UL 94 V-2 Flammability Rating|UL File No. E2186|UL ListedSKU #2410383Part Number #5362ALAUNSPSC39121406UPC00783585530994
Image provided may only be a representation of final product and may include optional equipment
