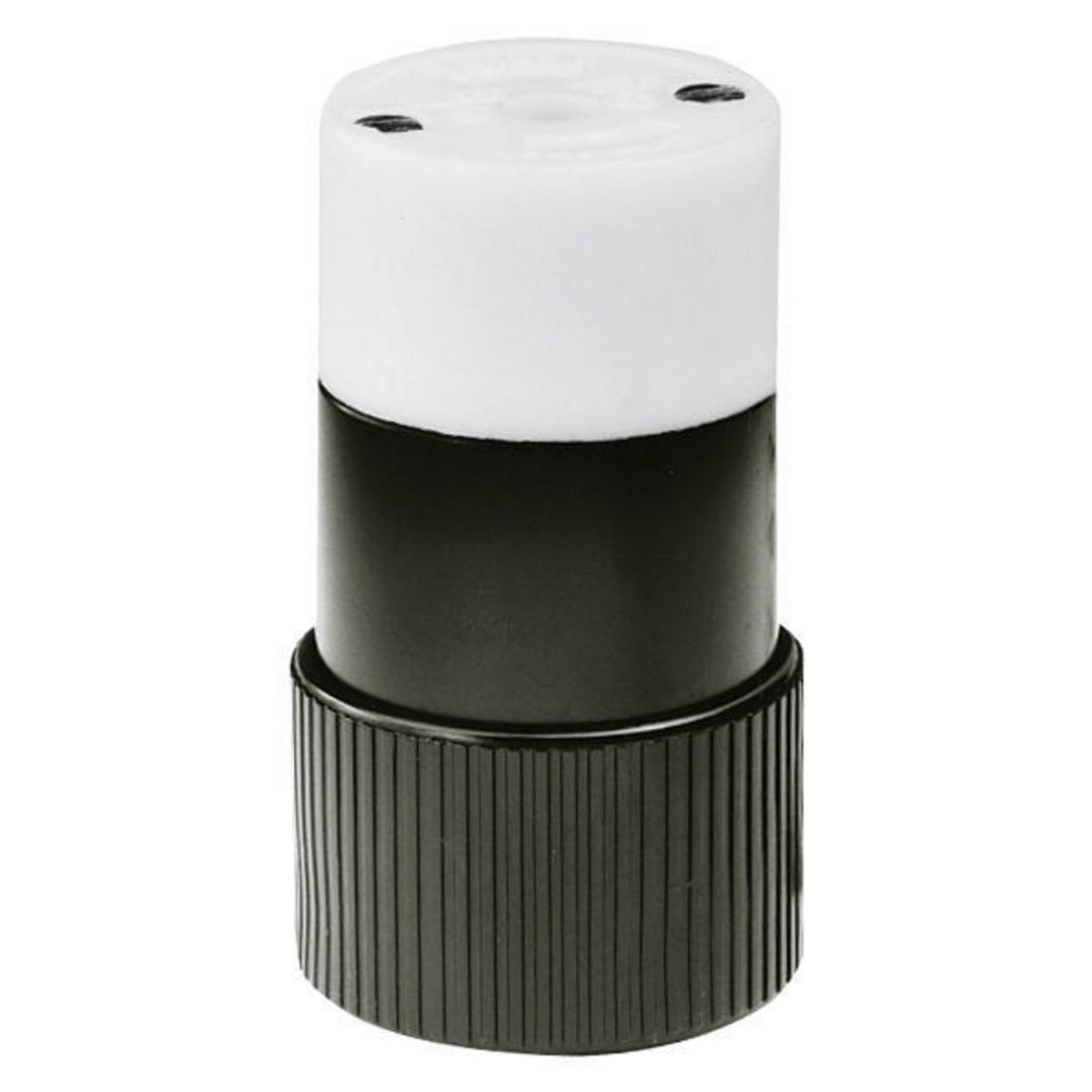

Hubbell 7484NC Locking Connector
Image Disclaimers Message
Hubbell 7484NC Locking Connector
Hubbell 7484NC Locking Connector
Part #:7484NC
SKU #: 2322523
Key Features
Part #:7484NC
SKU #: 2322523
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.281 to 0.625, 0.281 to 0.625 in
Dimensions: 1.25 in L x 1.25 in W x 2.15 in H
NEMA Rating: NEMA ML-3R
Number of Poles: 3
- 14 AWG conductor
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- #10-32 brass terminal screw
- Impact modified nylon face/terminal assembly and Supertough nylon cover
- Supertough nylon cover
- Clear polycarbonate terminal cover
- High performance copper alloy connector contacts
- Zinc plated steel terminal clamp nut and assembly screw
- Withstands 3500 VAC per UL 498 dielectric voltage
- 600 VAC or 250 VDC maximum working voltage
- 18 to 8 AWG flexible cord terminal accommodation
- Ratings and NEMA identification are permanently marked on device product identification
- Round portable service cords in accordance with device ratings as defined in UL standard 62, CSA C22.2 No. 49 cord accommodation
- Midget NEMA locking
Hubbell 7484NC Locking Connector
Bryant Electric Tech-Spec Locking Connector, Female Heavy Duty Insulated Midget Non-Grounding Standard, 125/250 VAC, 15 A, 3 Poles, 3 Wires, NEMA ML-3R, Industrial Grade, 0.281 to 0.625 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black, 1.25 in L x 1.25 in W x 2.15 in H
Additional Description: HUBW-7484NC LKG CONN, MIDGET, 15A 125/250V, ML-3R,BR
Catalog Description: Locking Devices, Bryant Midget Locking, Industrial, Female Connector Body, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3R, Screw Terminal, Black & White
