$31.43/EA
- 14 AWG conductor
- Indoor dry unless protected by additional mean environmental conditions
- Cord mounted
- ML-2 midget/special configuration type
- #10-32 brass terminal screw
- Clear polycarbonate terminal cover
- High performance copper alloy connector contacts
- Zinc plated steel terminal clamp nut and assembly screw
- Withstands 3500 VAC per UL 498 dielectric voltage
- Maximum 30 deg C temperature rise at full rated current after 50 cycles of overload at 150% of rated current for either AC or DC applications per UL 498 temperature rise
- 18 to 8 AWG flexible cord terminal accommodation
- Non-metallic Quad-Gripper cord grip
- Midget NEMA locking
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.281 to 0.625, 0.281 to 0.625 in
Dimensions: 1.25 in L x 1.25 in W x 2.15 in H
NEMA Rating: NEMA ML-2R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Screw
Type: Female Grounding Heavy Duty Insulated Midget Standard, Female Grounding Midget, Female Grounding Midget Standard
Voltage Rating: 125, 125 VAC
Color: Black, White
Country of origin: US
Material: Composite
Manufacturer Name: Hubbell
UNSPSC: 39121421
UPC: 00781786671300

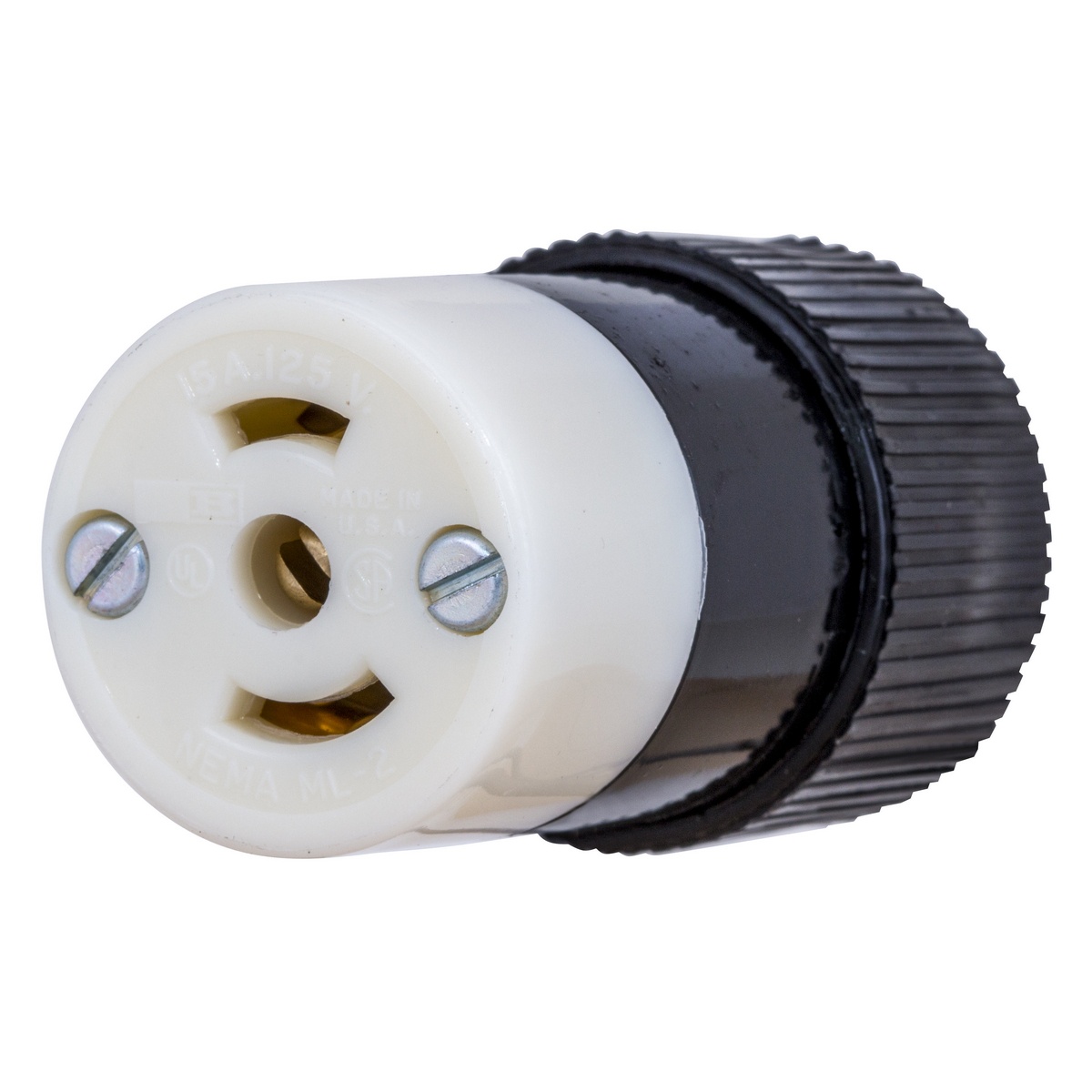

Hubbell 7593NC Locking Connector
Bryant Electric Locking Connector, Female Grounding Heavy Duty Insulated Midget Standard, 125 VAC, 15 A, 2 Poles, 3 Wires, NEMA ML-2R, Industrial Grade, 0.281 to 0.625 in Cord Dia, -40 to 75 deg C, Screw Terminal, Composite, Black, 1.25 in L x 1.25 in W x 2.15 in H
Additional Description: HUBW-7593NC LKG CONN, MIDGET 15A 125V, ML-2R, BR
Catalog Description: Locking Devices, Bryant Midget Locking, Industrial, Female Connector Body, 15A 125V, 2-Pole 3-Wire Grounding, ML-2R, Screw Terminal, Black & White
Item FeaturesIndoor Dry Environment
Item Features
Item FeaturesRoHS Compliant|ANSI Specified|UL 498 File No. E1381 Guide No. AXUT|CSA C22.2 No. 182.2/17 File No. LR16215 Guide No. 20T2|NEMA WD1/WD5/WD6|Federal Specification W-C-596|UL94 HB Flammability Rating
