- Combination back and side wiring terminals accept 14 to 8 AWG solid or stranded conductors
- Heavy duty mounting straps are nickel plated to resist corrosion, wide width design assures secure assembly
- NEMA rating and configuration are molded into face for easy identification
- 1-piece, rivetless copper alloy contact design reduces heat buildup and provides secure blade retention
- Indoor dry unless protected by additional mean environmental conditions
Specifications
Brand: Hubbell
Amperage Rating: 15, 15 A
Cord Diameter: 0.281 to 0.625
Dimensions: 2.06 in L x 1.62 in W x 1.17 in H
NEMA Rating: NEMA ML-2R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60
Terminal Type: Screw
Type: 1-Phase Extra Heavy Duty Grounding Midget Single Standard, 1-Phase Flanged Grounding Midget Single Standard, 1-Phase Flanged Grounding Midget Single Standard Extra Heavy Duty
Voltage Rating: 125, 125 VAC
Color: Black, White
Country of origin: PR
Material: Composite, Composite/Thermoplastic
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00781786671454

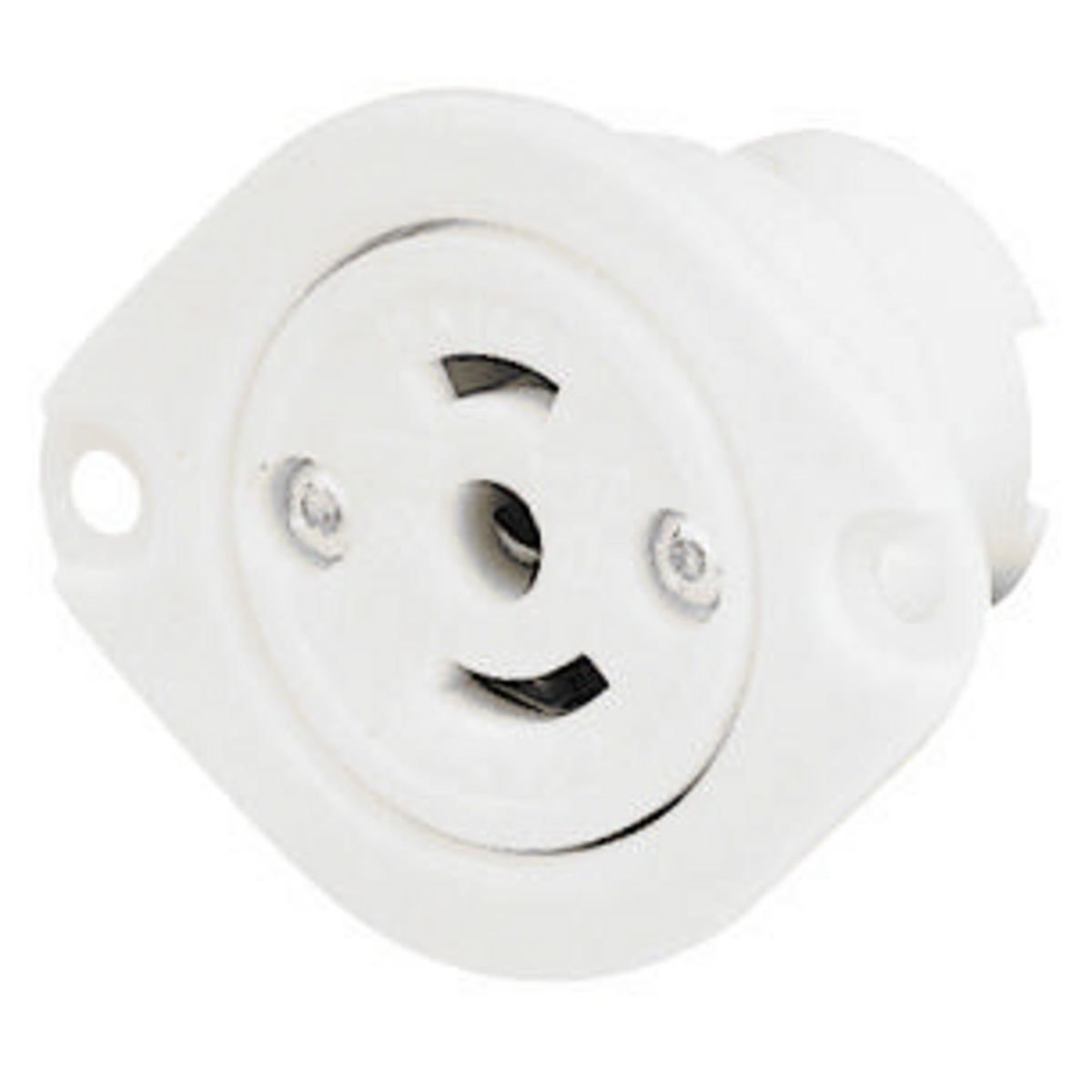

Hubbell 7596ER Locking Receptacle
Wiring Device-Kellems Twist-Lock Locking Receptacle, 1-Phase Flanged Grounding Midget Single Standard Extra Heavy Duty, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA ML-2R NEMA Rating, Industrial Grade, Screw Terminal, Composite, White, 2.06 in L x 1.62 in W x 1.17 in H Dimensions
Additional Description: HUBW-7596ER LKG FLG-RCPT, MIDGET 15A 125V, ML-2R
Catalog Description: Locking Devices, Bryant Midget Locking, Industrial, Flanged Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, ML-2R, Screw Terminal, Black & White
Item Features
Item FeaturesIndoor Dry Environment Applications
Item FeaturesNEMA WD1/WD5|RoHS Compliant|UL 498
