Part Number # AHP1600WRP
SKU # 2310116
Image provided may only be a representation of
final product and may include optional equipment
AHP1600WRP

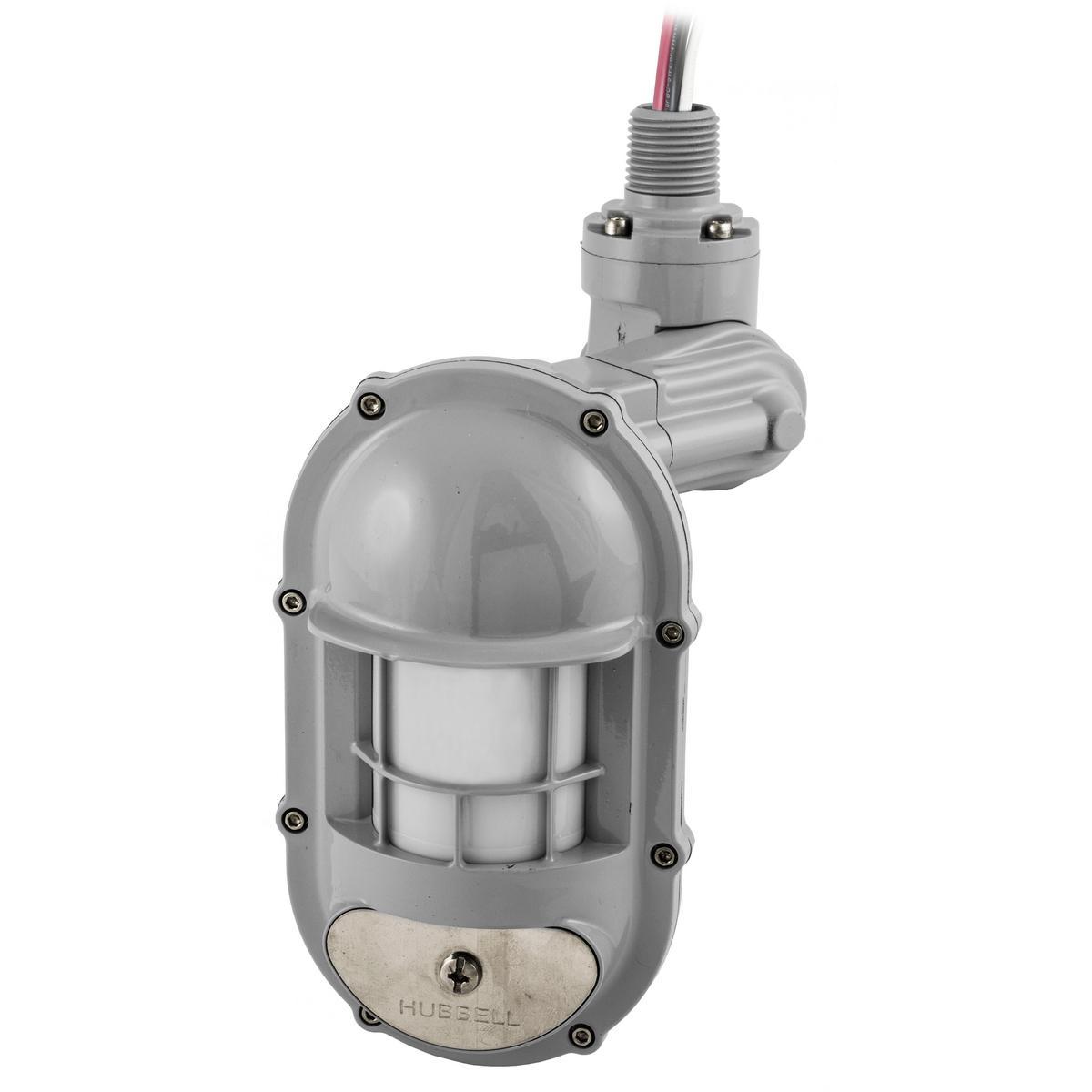

Hubbell AHP1600WRP Occupancy Sensor
Part Number # AHP1600WRP
SKU # 2310116
Hubbell AHP1600WRP Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | AHP1600WRP |
| SKU #: | 2310116 |
| Amperage Rating: | 33, 33 mA |
| Dimensions: | 6.06 in H x 3.49 in W x 2.68 in D |
| Enclosure Type: | NEMA 4X/IP66 |
| Sensor Type: | Passive Infrared |
| Temperature Rating (Degrees F): | -40 to 149, -40 to 149 deg F |
| Time Delay: | 8 s Test/8 to 40 min Adaptive |
| Type: | Heavy Duty Watertight |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Mounting type: | Wall |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122236 |
| UPC: | 00783585256122 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell AHP1600WRP Occupancy Sensor
Brand: Hubbell
Part Number: AHP1600WRP
Wiring Device-Kellems H-MOSS MAXX OPTIMYZER Occupancy Sensor, Heavy Duty Watertight, 24 VDC, 33 mA, Passive Infrared Sensor, 1600 sq-ft Coverage, 160 deg Viewing, 8 s Test/8 to 40 min Adaptive Delay, NEMA 4X/IP66, Wall Mount, -40 to 149 deg F, Gray
Additional Description: HUBW-AHP1600WRP SENSOR,NEMA 4X,WALL,1600 SQ',PCEL,RELAY
Catalog Description: Switches and Lighting Control, Occupancy Sensor, Hazardous Location, Passive Infrared, Wall Mount, 1600 Square Feet, With Photocell and Relay
AHP1600WRP Application
For harsh environment applicationsAHP1600WRP Includes
1/2 in NPT Adapter and Mounting HardwareAHP1600WRP Item Features
- Rated for -40 deg F to 149 deg F operating temperatures
- Rugged Valox enclosure with stainless steel hardware
- Integrated lens protection
- Advanced digital PIR sensing
- Auto-adjusting adaptive technology eliminates the need for manual adjustments
AHP1600WRP Standards
cUL Listed|UL Listed|CSA Certified|CEC Title 24 CompliantSKU #2310116Part Number #AHP1600WRPUNSPSC39122236UPC00783585256122
