Part Number # ATD1000CL
SKU # 2307452
Image provided may only be a representation of
final product and may include optional equipment
ATD1000CL

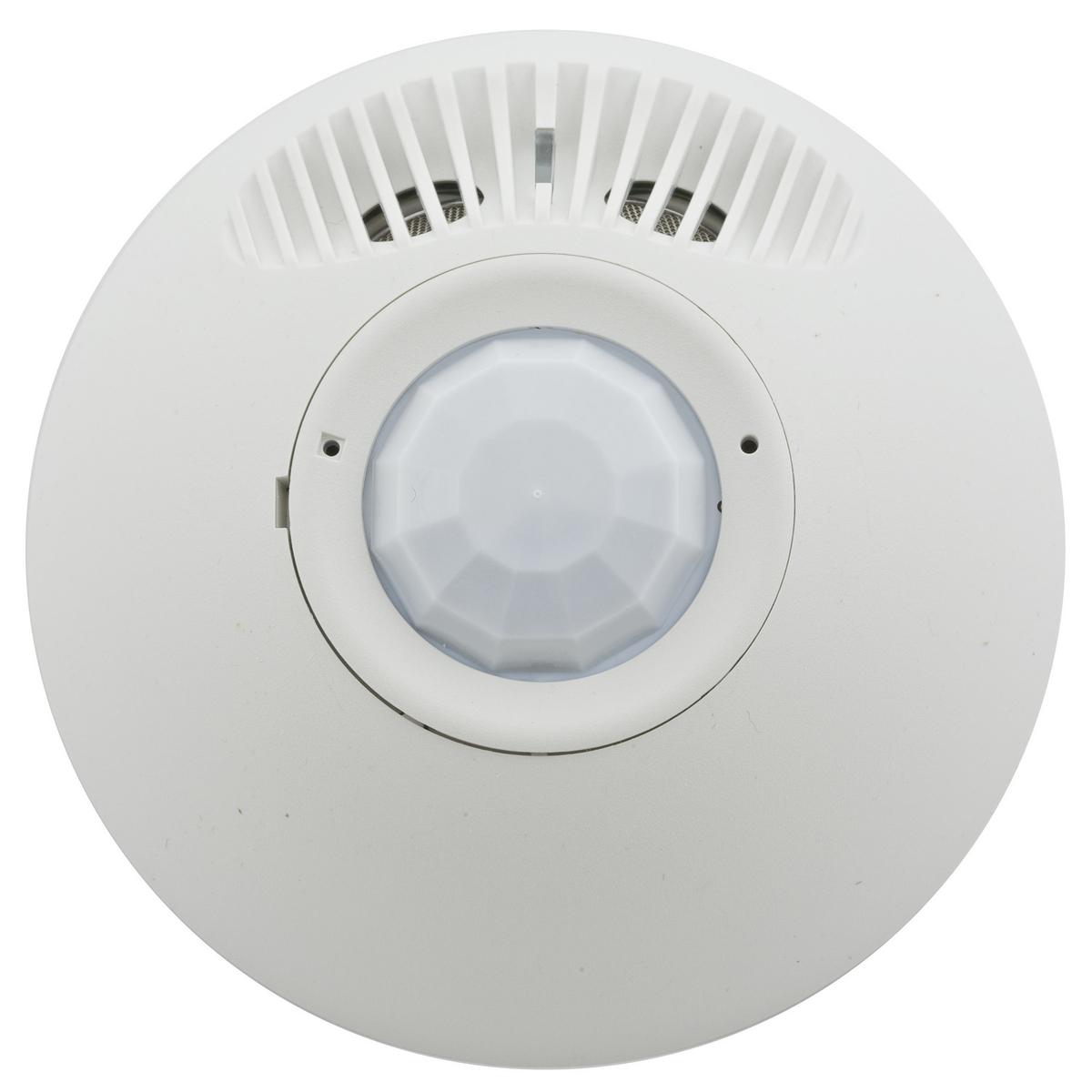

Hubbell ATD1000CL Occupancy Sensor
Part Number # ATD1000CL
SKU # 2307452
Hubbell ATD1000CL Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | ATD1000CL |
| SKU #: | 2307452 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 4.5 in Dia x 3.4 in H |
| Lamp Type: | Incandescent |
| Sensor Type: | Dual Technology/PIR/Ultrasonic, Passive Infrared/Ultrasonic/Dual Technology |
| Temperature Rating (Degrees F): | 0 to 40, 32 to 104 deg F |
| Time Delay: | 8 to 40 min Adaptive, 8 s Test, 8 to 40 min Adaptive, 8 sec Test |
| Type: | 1-Circuit, 1-Circuit Adaptive Dual Technology |
| Connection type: | Screw Terminal, Threaded |
| Country of origin: | CN |
| Material: | ABS |
| Mounting type: | Ceiling, Ceiling/Threaded |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39122236 |
| UPC: | 00783585256894 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell ATD1000CL Occupancy Sensor
Brand: Hubbell
Part Number: ATD1000CL
Wiring Device-Kellems H-MOSS Occupancy Sensor, 1-Circuit Adaptive Dual Technology, 120/277 VAC, 20 A, Passive Infrared/Ultrasonic/Dual Technology Sensor, 1000 sq-ft Coverage, 180 deg Viewing, 8 to 40 min Adaptive, 8 s Test Time Delay, Incandescent Lamp, 50/60 Hz Response, Screw Terminal Connection, Ceiling Mounting, 32 to 104 deg F, ABS, White, 4.5 in Dia x 3.4 in H Dimensions
Additional Description: HUBW-ATD1000CL OCCSENS,DT,CLNG,LN,VOLTAGE,1000 SQ FT Q.FT
Catalog Description: Switches and Lighting Control, H-MOSS, Occupancy Sensor, Adaptive Dual Tech, Ceiling Mount, 1000 Square Feet, 120V AC, With Relay
ATD1000CL Application
For use with most LED and CFL and indoor applicationsATD1000CL Item Features
- Minimize the risk of false triggering
- lights turning ON when the space is un-occupied
- Self-contained power supply with high load relay
- Directly mounts to 4 in octagon boxes, 2.125 in deep
- Office White ABS enclosure blends with ceiling tile
ATD1000CL Standards
ASHRAE 90.1|CSA Certified|cULus Listed|UL 244ASKU #2307452Part Number #ATD1000CLUNSPSC39122236UPC00783585256894
