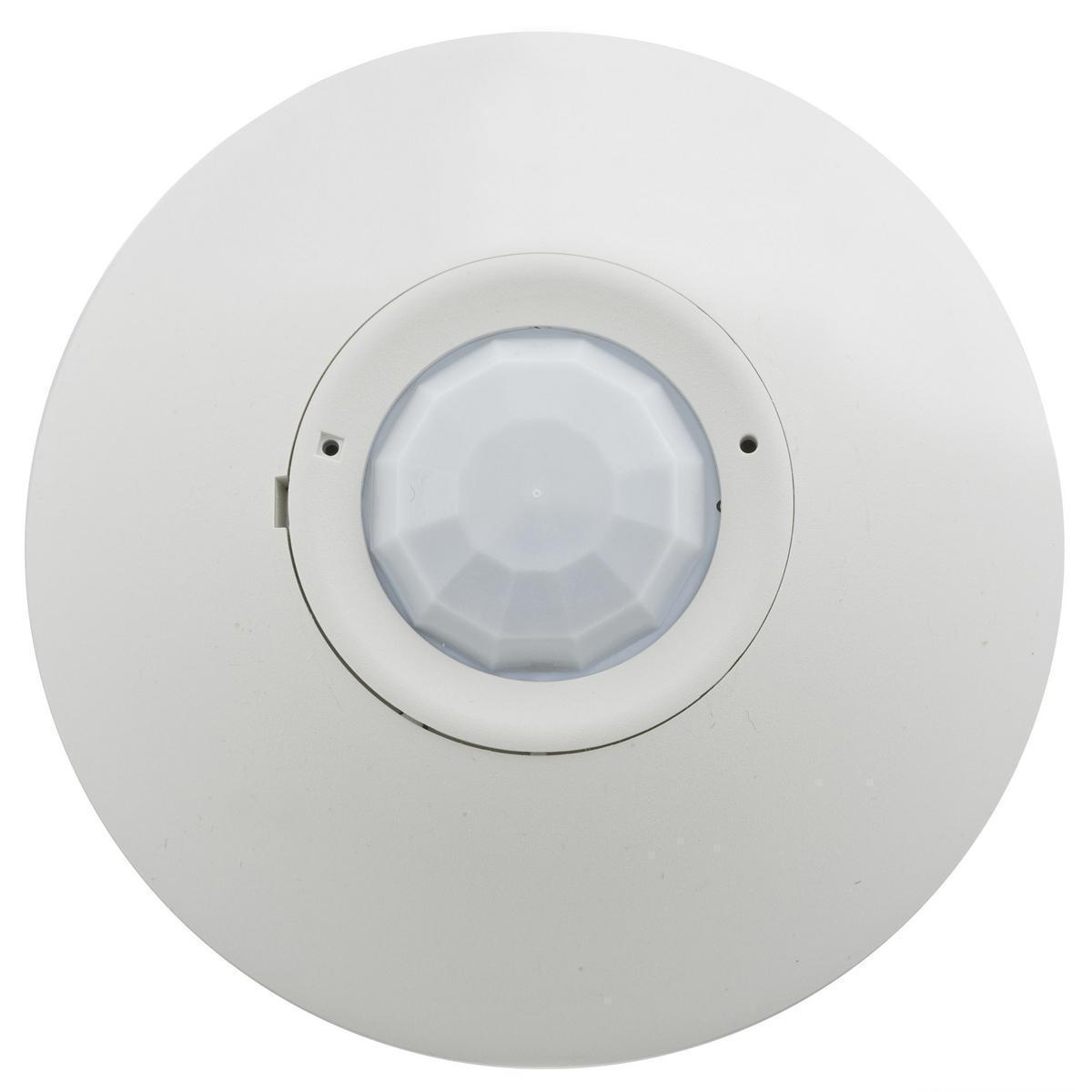

Hubbell ATP1500CRP Occupancy Sensor
Image Disclaimers Message
Hubbell ATP1500CRP Occupancy Sensor
Hubbell ATP1500CRP Occupancy Sensor
Part #:ATP1500CRP
SKU #: 2377306
Key Features
Part #:ATP1500CRP
SKU #: 2377306
Brand: Hubbell
Amperage Rating: 33 mA
Dimensions: 1-1/2 in H x 4-1/2 in D
Lamp Type: LED
Sensor Type: Passive Infrared
Temperature Rating (Degrees F): 32 to 104 deg F
- -20 to 150 deg F storage temperature
- 0 to 95% non-condensing relative humidity
- 6000 minimum operating cycles
- 1 to 1000 fcd ambient light controls
- 0 to 100% adaptive sensitivity
- Red LED passive infrared sensing indicators
- Load is a function of the control unit
- Indoor dry unless protected by additional means
- Office white ABS enclosure blends with ceiling tile
- "Install and Forget" operation
- Relay to interface with auxiliary systems such as HVAC
- Auto-adjusting adaptive technology eliminates manual adjustments
- Polyethylene lens
- Flame retardant UL94 V-0 ABS housing
- Normally open and normally closed terminals available
Hubbell ATP1500CRP Occupancy Sensor
Wiring Device-Kellems H-MOSS Ceiling Mount Occupancy Sensor, Adaptive Dual Technology, 24 VDC, 33 mA, Passive Infrared Sensor, 1500 sq-ft Coverage, 360 deg Viewing, 8 to 40 min Adaptive, 8 sec Test Time Delay, LED Lamp, Ceiling Mounting, 32 to 104 deg F, ABS, Off-White, 1-1/2 in H x 4-1/2 in D Dimensions
Additional Description: HUBW-ATP1500CRP AT PIR OCCSENS, CEILING, 1500 SQ FT, W/R FT, W/R, SENSOR
Catalog Description: Switches and Lighting Controls, Occupancy Sensors, Adaptive Technology Passive Infrared Ceiling Sensor, 1500 Square Feet Coverage, With Relay
