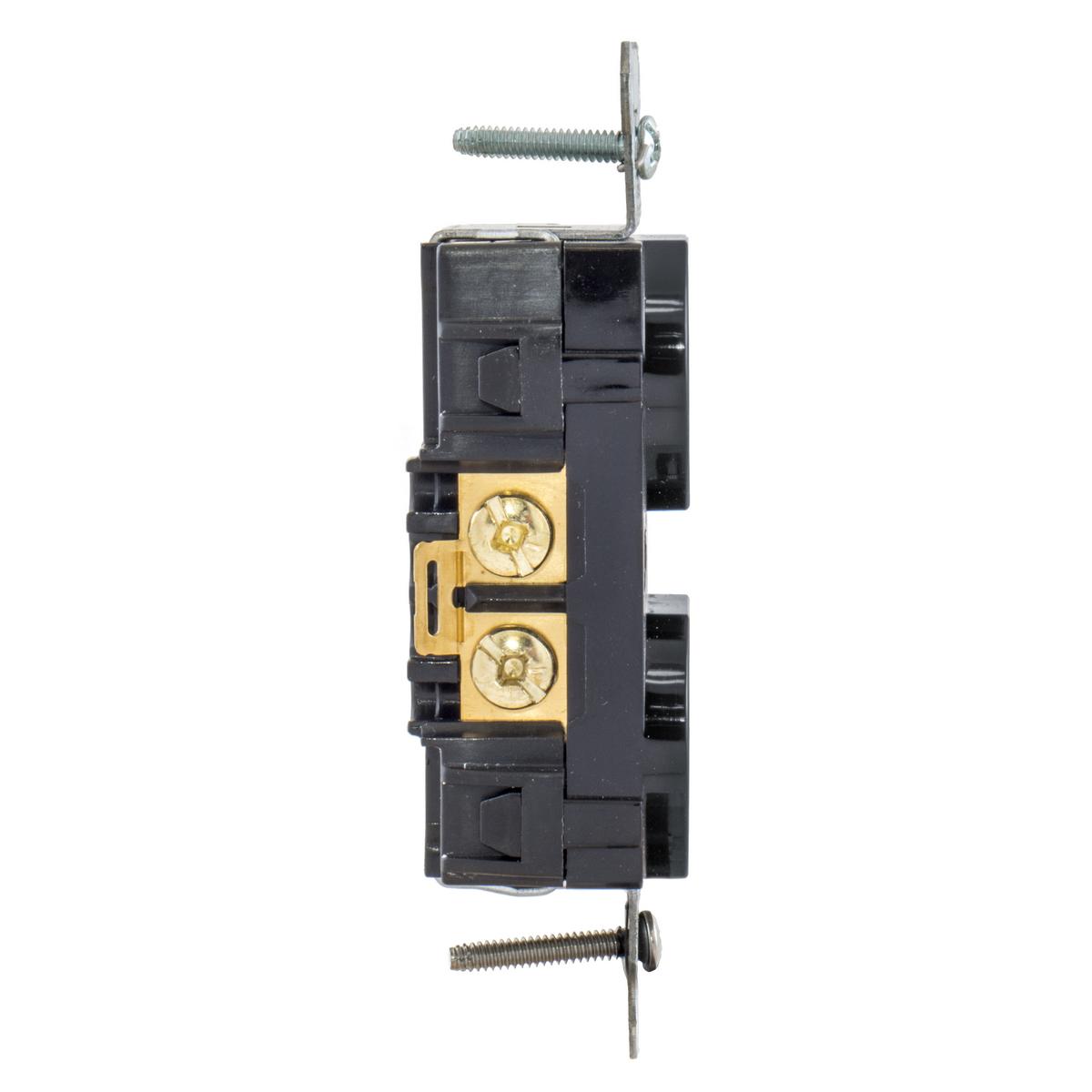

Hubbell BR15BLK Straight Blade Receptacle
Image Disclaimers Message
Hubbell BR15BLK Straight Blade Receptacle
Hubbell BR15BLK Straight Blade Receptacle
Part #:BR15BLK
SKU #: 2235257
Key Features
Part #:BR15BLK
SKU #: 2235257
Brand: Hubbell
Amperage Rating: 15, 15 A
Dimensions: 3.28 x 1.57 x 1.07 in, 3.281 in H x 1.322 in W x 1.067 in D
Horsepower: 1/2, 1/2 hp
NEMA Rating: 5-15R, NEMA 5-15R
Number of Poles: 2
- 0.03 in brass power contact
- 0.04 in galvanized steel mounting strap
- Stainless steel auto ground clip
- Steel, zinc plated mounting screw
- Withstands 2000 VAC dielectric voltage
- Certified for current interrupting at full rated current
- Terminals identified in accordance with UL 498 (brass, white, green)
- 14 to 10 AWG solid or stranded copper conductor terminal accommodation
- Ratings are a permanent part of the device product identification
- Easy access split circuit tab
- Nylon face and base
- Wraparound galvanized steel strap
- Triple wipe power contacts
- Traditional duplex receptacle
- Indoor dry unless protected by additional means
Hubbell BR15BLK Straight Blade Receptacle
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, 125 VAC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Black, 3.28 x 1.57 x 1.07 in
Additional Description: HUBW-BR15BLK RCPT, DUP SB, COM GRD, 15A 125V, B/S, BK
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Black
