BR15C1WHI

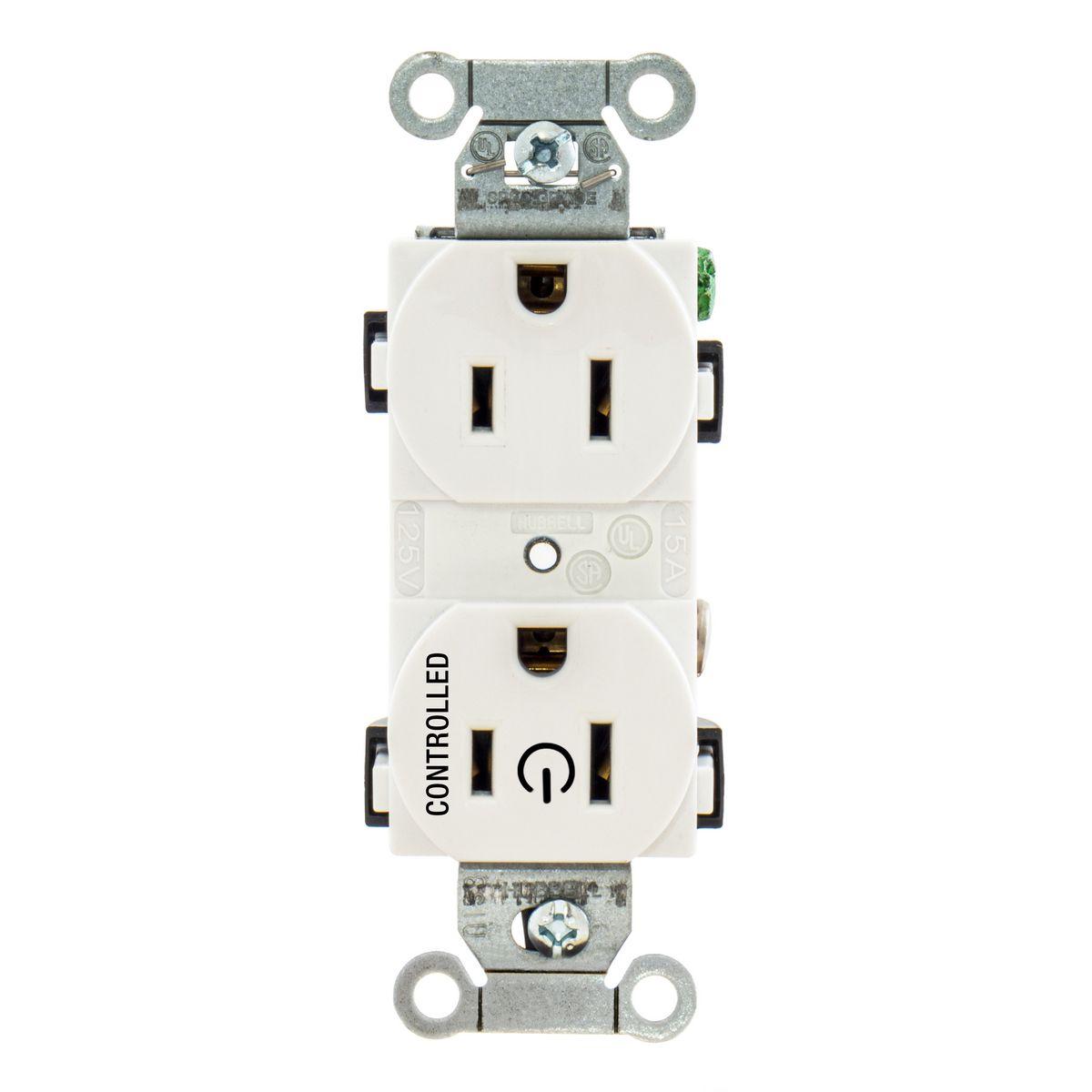

Hubbell BR15C1WHI Straight Blade Receptacle
Part Number # BR15C1WHI
SKU # 2327301
$7.29 / Each
Typical price:$13.85 / Each
Hubbell BR15C1WHI Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR15C1WHI |
| SKU #: | 2327301 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.32 x 0.83 x 3.28, 1.32 x 0.83 x 3.28 in, 3.28 in H x 1.32 in W x 0.83 in D |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | 1-Phase Duplex 1-Controlled Face Standard Traditional Screw Mount, Duplex One Controlled Face Standard Traditional |
| Color: | White |
| Country of origin: | CN |
| Material: | Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585551067 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.29 / Each
Typical price:$13.85 / Each
Quantity:
- Hubbell Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex 1-Controlled Face Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, -40 to 75 deg C, Screw Terminal, Nylon, White, 1.32 x 0.83 x 3.28 in
BR15C1WHI Application
Commercial Buildings, Industrial, Retail, Schools and Hotel Rooms ApplicationsBR15C1WHI Item Features
- Permanently marked with universal power symbol and the word CONTROLLED to visually identify receptacles used in automatic energy management systems
- Half-Controlled receptacle with one face marked and the circuit tab removed
- Complements Hubbells Load Logic controls or any available energy management system
BR15C1WHI Standards
ASHRAE 90.1|California Title 24|CSA C22.2 No. 42|Federal Specification WC596|NEC 406.3|UL 498SKU #2327301Part Number #BR15C1WHIUNSPSC39121406UPC00783585551067
