Part Number # BR15GRY
SKU # 2169419
Image Disclaimers Message
BR15GRY

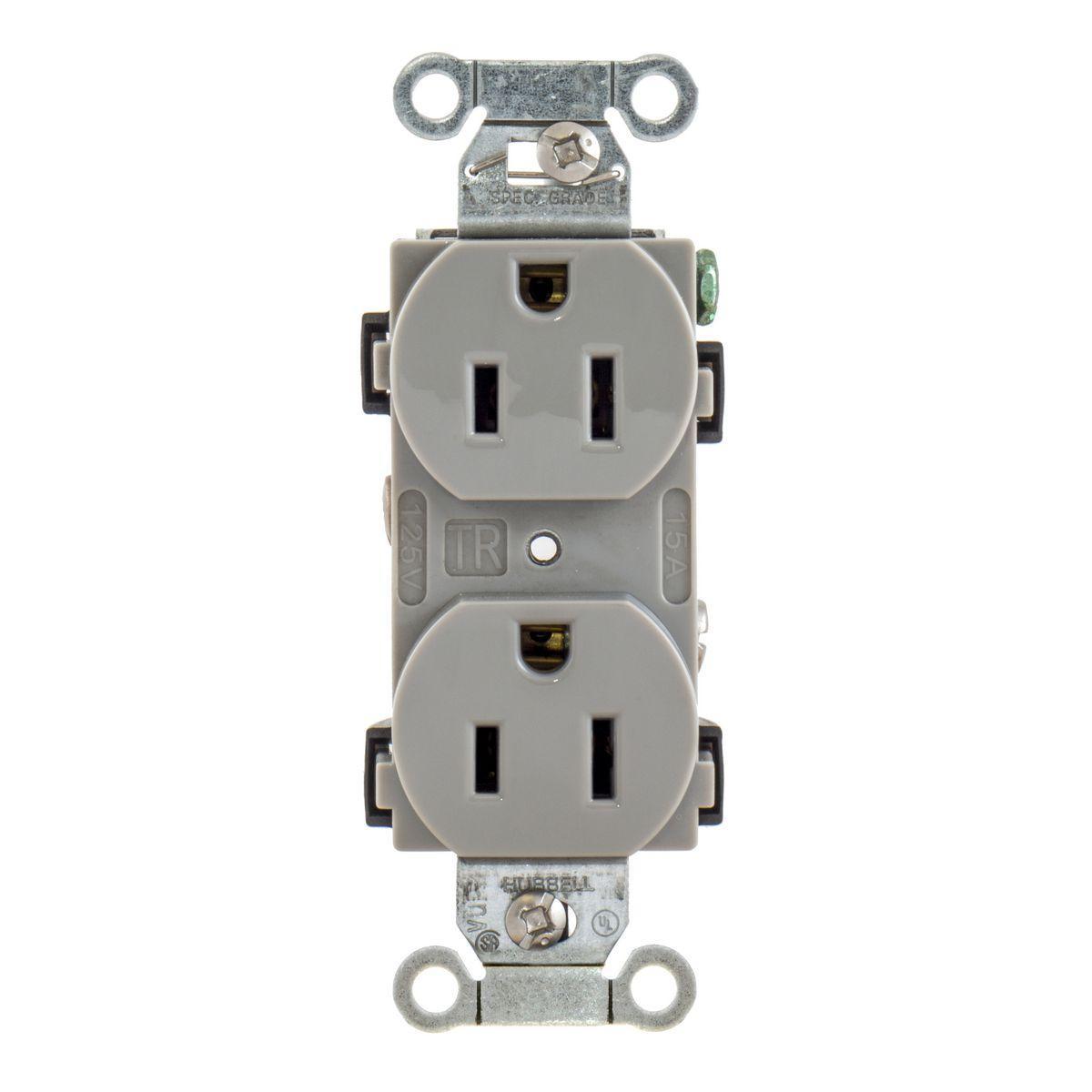

Hubbell BR15GRY Straight Blade Receptacle
Part Number # BR15GRY
SKU # 2169419
$4.21 / Each
Typical price:$5.45 / Each
Hubbell BR15GRY Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR15GRY |
| SKU #: | 2169419 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 3.3 in L x 1.34 in W x 1.1 in H, 3.3 x 1.34 x 1.1, 3.3 x 1.34 x 1.1 in |
| Horsepower: | 1/2, 1/2 hp |
| NEMA Rating: | 5-15R, NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back and Side Wired, Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, Duplex Self-Grounding Standard Traditional |
| Color: | Gray |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585127965 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$4.21 / Each
Typical price:$5.45 / Each
Quantity:
- Hubbell Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, 125 V AC, 15 A, 1/2 hp, 2 Pole, 3 Wires, 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Gray, 3.3 x 1.34 x 1.1 in
BR15GRY Item Features
- Easy access split circuit tab
- Nylon face and base
- Wrap-around galvanized steel strap
- Triple wipe contacts
BR15GRY Standards
CSA C22.2 No. 42|UL 498 File No. E2186|Federal Specification WC596|UL94 V-2 Flammability Rating|NEMA WD1/WD5/WD6SKU #2169419Part Number #BR15GRYUNSPSC39121406UPC00783585127965
