Part Number # BR20I
SKU # 2148981
Image provided may only be a representation of
final product and may include optional equipment
BR20I

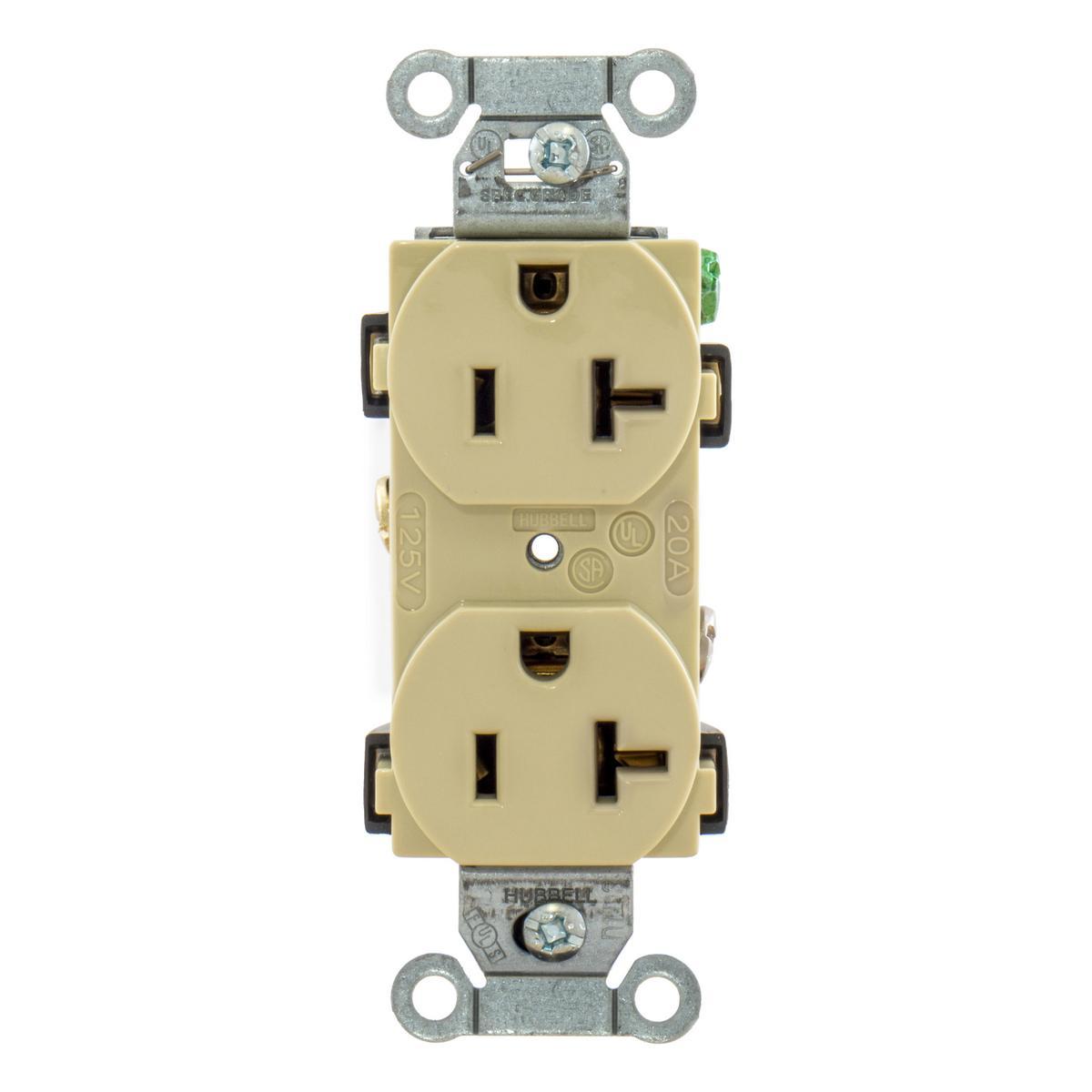

Hubbell BR20I Straight Blade Receptacle
Part Number # BR20I
SKU # 2148981
Hubbell BR20I Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR20I |
| SKU #: | 2148981 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.32 in L x 0.83 in W x 3.28 in H, 1.32 x 0.83 x 3.28 in |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, Duplex Self-Grounding Standard Traditional |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585834887 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell BR20I Straight Blade Receptacle
Brand: Hubbell
Part Number: BR20I
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Ivory, 1.32 x 0.83 x 3.28 in
Additional Description: HUBW-BR20I RCPT, DUP SB, COM GRD, 20A 125V, B/S, IV B/S, IV 5-20R
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Ivory, Single Pack.
BR20I Item Features
- Easy access split circuit tab
- Nylon face and base
- Wrap-around galvanized steel strap
- Triple wipe contacts
BR20I Standards
RoHS Compliant|CSA C22.2 No. 42|UL 498 File No. E2186|Federal Specification WC596|UL94 V-2 Flammability Rating|NEMA WD1/WD5/WD6SKU #2148981Part Number #BR20IUNSPSC39121406UPC00783585834887
