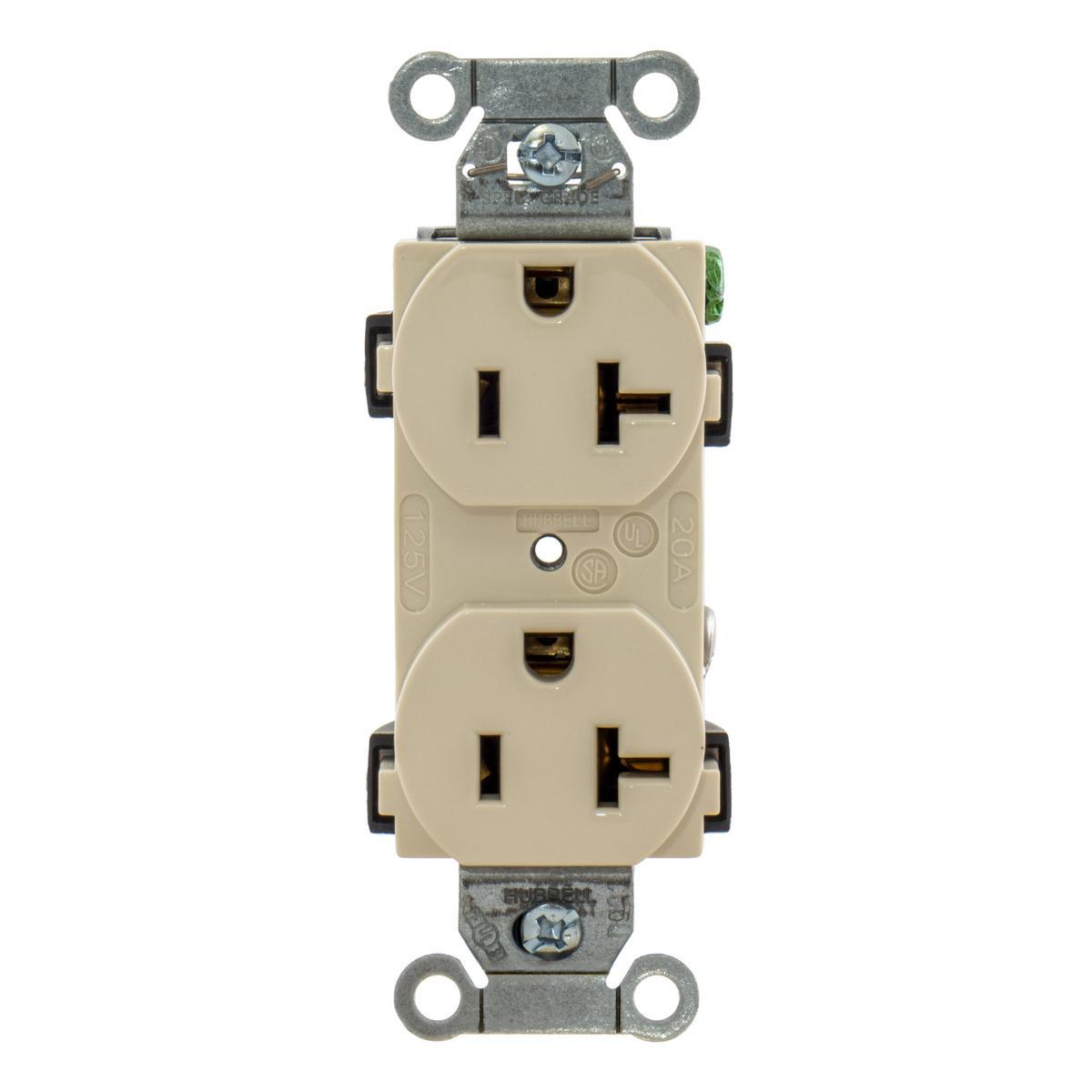

Hubbell BR20LA Straight Blade Receptacle
Part Number # BR20LA
SKU # 2252400
$5.71 / Each
Hubbell BR20LA Key Features
Brand: Hubbell
Part Number # BR20LA
SKU #2252400
Amperage Rating: 20, 20 A
Dimensions: 1.32 x 0.83 x 3.28 in, 3.28 in H x 1.32 in W x 0.83 in D
Horsepower: 1, 1 hp
NEMA Rating: 5-20R, NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Back/Side Wired, Side Wired
Type: 1-Phase Duplex Standard Traditional Screw Mount, Duplex Standard Traditional
Voltage Rating: 125, 125 VAC
Color: Light Almond
Country of origin: CN
Material: Nylon
Manufacturer Name: Hubbell
UNSPSC: 39121406
UPC: 00783585127576
$5.71 / Each
Hubbell BR20LA Straight Blade Receptacle
Brand: Hubbell
Part Number: BR20LA
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Standard Traditional Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Industrial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Light Almond, 1.32 x 0.83 x 3.28 in
Additional Description: HUBW-BR20LA RCPT, DUP SB, COM GRD, 20A 125V, B/S, LA
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Light Almond, Single Pack.
BR20LA Application
Washdown Areas, Transit Centers, Amusement Parks and Open Air MarketsBR20LA Item Features
- Easy access split circuit tab
- Nylon face and base
- Wrap-around galvanized steel strap
- Triple wipe contacts
BR20LA Standards
CSA C22.2 No. 42|Federal Specification WC596|NEMA WD1/WD5|UL 498SKU #2252400Part Number #BR20LAUNSPSC39121406UPC00783585127576
