BR20TR

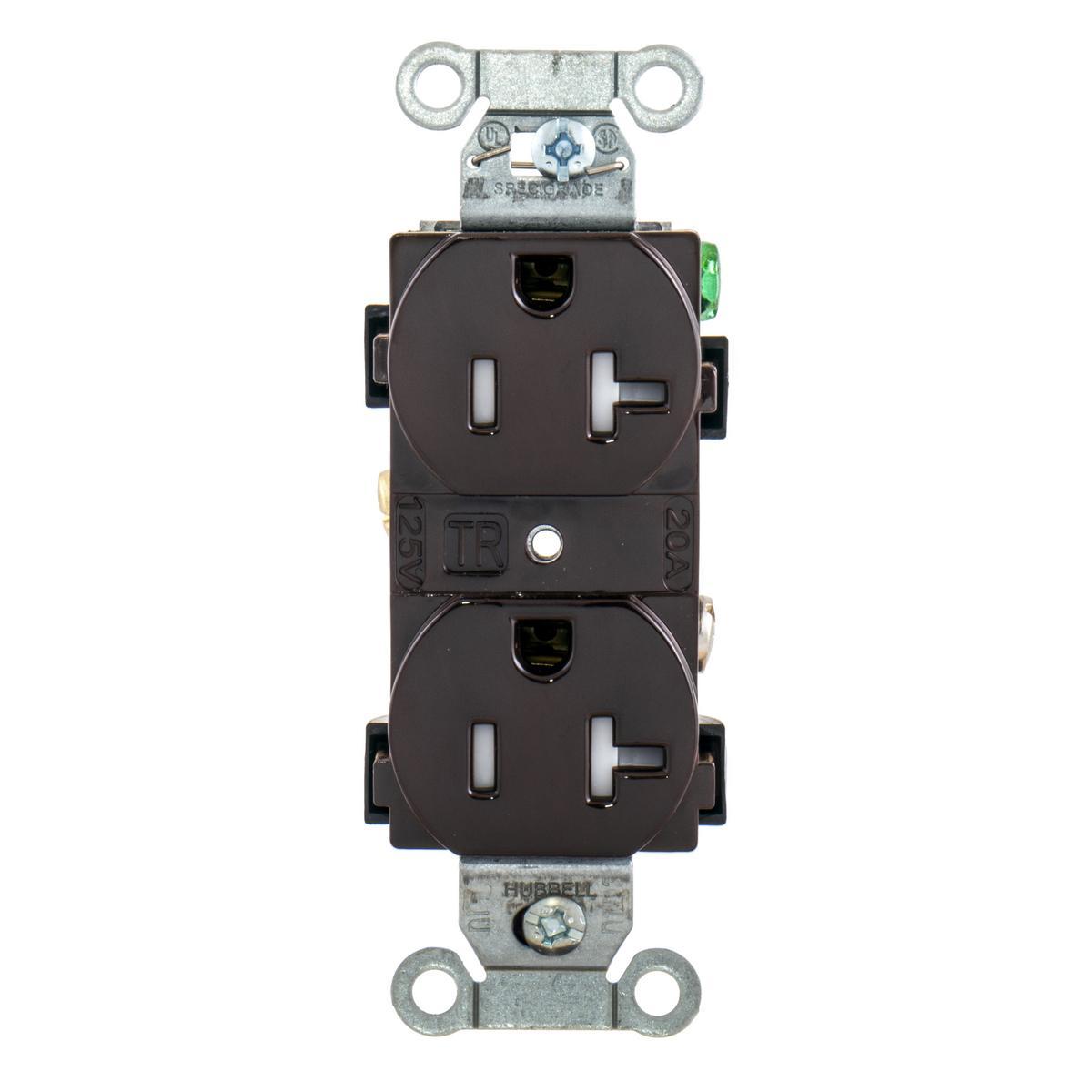

Hubbell BR20TR Straight Blade Receptacle
Part Number # BR20TR
SKU # 2343866
$10.43 / Each
Typical price:$13.50 / Each
Hubbell BR20TR Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR20TR |
| SKU #: | 2343866 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.32 in L x 0.83 in W x 3.28 in H, 1.32 x 0.83 x 3.28, 1.32 x 0.83 x 3.28 in |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back and Side Wired, Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount, Duplex Self-Grounding Standard Tamper Resistant Traditional |
| Color: | Brown |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585144115 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.43 / Each
Typical price:$13.50 / Each
Quantity:
- Hubbell Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Standard Tamper Resistant Traditional Screw Mount, 125 V AC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, Brown, 1.32 x 0.83 x 3.28 in
BR20TR Item Features
- Sleek, Smooth Face - Clean, modern appearance
- Durable Construction - Galvanized steel straps
- Reliable Performance - Triple wipe contacts for consistency
- https://youtu.be/_gRwAmAYiQ8
BR20TR Standards
RoHS Compliant|CSA C22.2 No. 42|UL 498 File No. E2186|Federal Specification WC596|UL94 V-2 Flammability Rating|NEC Certified|NEMA WD1/WD5/WD6SKU #2343866Part Number #BR20TRUNSPSC39121406UPC00783585144115
