Part Number # BR20WHI
SKU # 2252401
BR20WHI

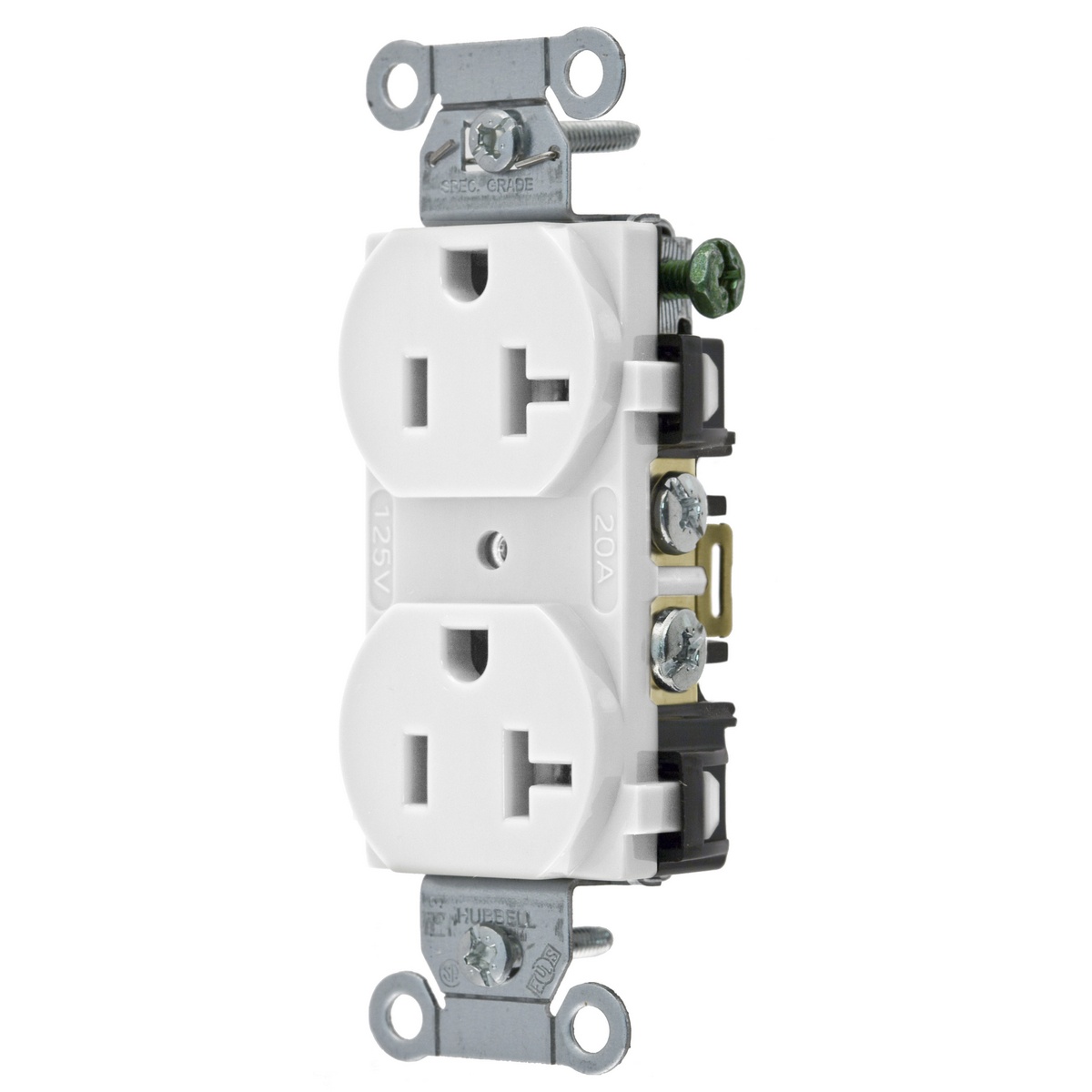

Hubbell BR20WHI Straight Blade Receptacle
Part Number # BR20WHI
SKU # 2252401
Hubbell BR20WHI Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | BR20WHI |
| SKU #: | 2252401 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.32 x 0.83 x 3.28, 1.32 x 0.83 x 3.28 in, 3.281 in H x 1.322 in W x 1.067 in D |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | 5-20R, NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Back and Side Wired, Back/Side Wired, Side Wired |
| Type: | 1-Phase Duplex Self-Grounding Screw Mount, Duplex Self-Grounding |
| Country of origin: | CN |
| Material: | Composite/Thermoplastic, Nylon |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121406 |
| UPC: | 00783585144023 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell BR20WHI Straight Blade Receptacle
Brand: Hubbell
Part Number: BR20WHI
Wiring Device-Kellems Straight Blade Receptacle, 1-Phase Duplex Self-Grounding Screw Mount, 125 VAC, 20 A, 1 hp, 2 Pole, 3 Wires, 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 75 deg C, Side Wired Terminal, Nylon, White, 1.32 x 0.83 x 3.28 in
Additional Description: HUBW-BR20WHI RCPT, DUP SB, COM GRD, 20A 125V, B/S, WH
Catalog Description: Straight Blade Devices, Receptacles, Duplex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, White, Single Pack.
BR20WHI Item Features
- Easy access split circuit tab
- Nylon face and base
- Wrap-around galvanized steel strap
- Triple wipe contacts
BR20WHI Standards
UL 498, File No. E2186 Listed|UL 94-V-2 Flammability Rating|CSA C22.2, No. 42|NEMA WD1/WD5/WD6 CompliantSKU #2252401Part Number #BR20WHIUNSPSC39121406UPC00783585144023
Image provided may only be a representation of final product and may include optional equipment
