Part Number # C27
SKU # 2295593
Hubbell C27 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | C27 |
| SKU #: | 2295593 |
| Dimensions: | 6-3/16 in L x 1-3/4 in W x 1-11/16 in H |
| Enclosure: | NEMA 3 |
| UNSPSC: | 39131708 |
| UPC: | 00783936011417 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$35.83 / Each
Quantity:

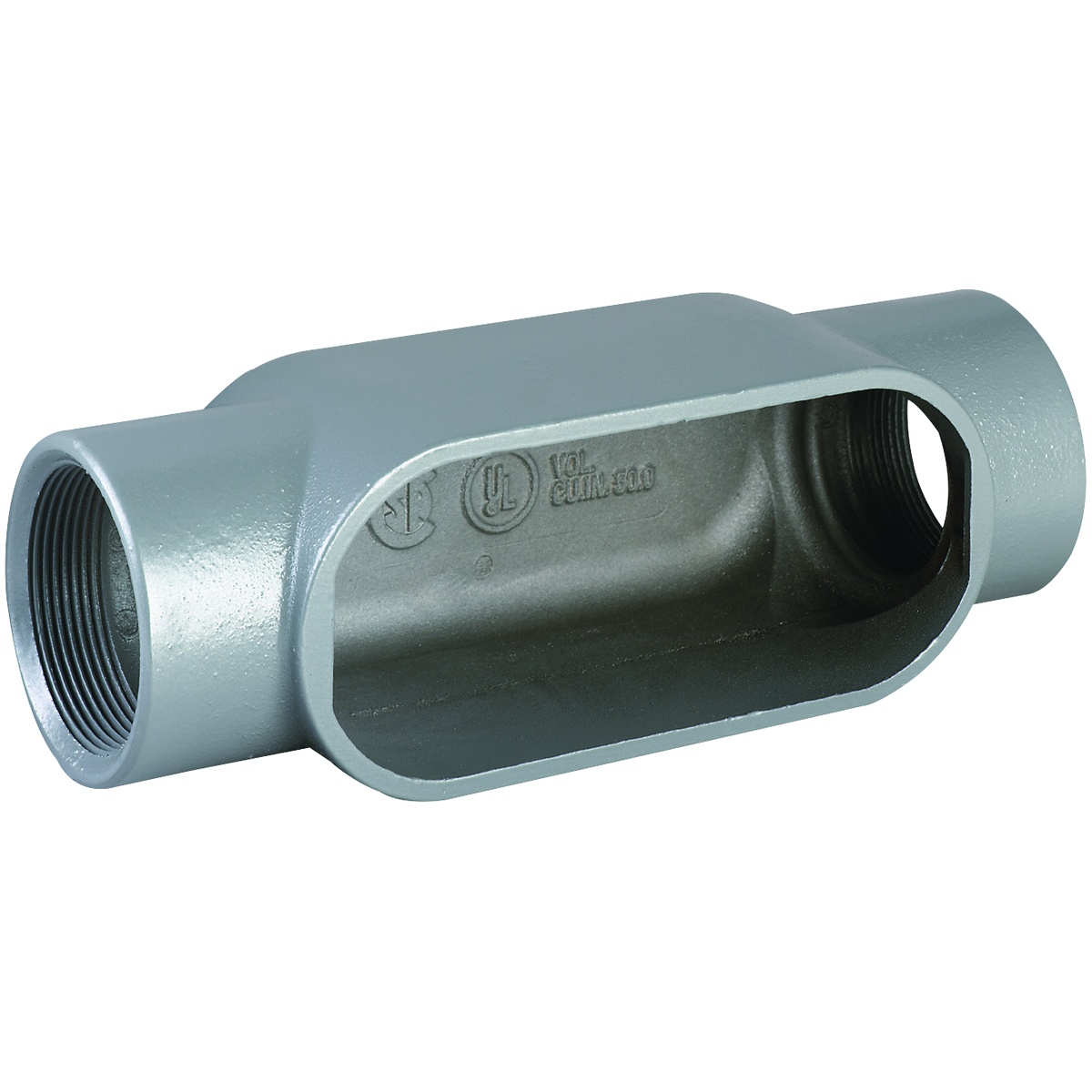

Hubbell C27 Duraloy 7 Conduit Body
Brand: Hubbell
Part Number: C27
Killark Duraloy 7 Conduit Body, Type-C, 3/4 in Hub, 2 Hubs, 7 cu-in Capacity, 7 Form, NEMA 3 Enclosure, Thread Connection, Iron, Tri-Coated, Gray, 6-3/16 in L x 1-3/4 in W x 1-11/16 in H Dimensions
Additional Description: KILL-C27 COND BODY, DURALOY7 FE 3/4""
Catalog Description: 3/4" C Hub, Iron Duraloy 7 Conduit Body
C27 Application
For to provide access to conductors for pulling, splicing and maintenance and threaded for rigid conduit and IMCC27 Item Features
- For use with threaded rigid conduit steel or aluminum
- Intermateability UL listed and CSA certified interchangeability with competitive products
- Tri-coat finish of electro zinc, chromate sealant and electrostatically applied powder coating
- Suitable for wet locations when used with gasketed covers
- Innovative spring clip design for installation ease and repeat usage
- Enhanced sealing capabilities neoprene sealing gaskets provide a NEMA 3 seal
- High-quality sealing hardware 316 stainless steel cover screws and washers with neoprene gaskets
- Ten standard hub configurations
- Smooth integral wire bushings protects cable from damage when wires are pulled through opening
- Flat-back design for greater wiring capacity and mounting stability
C27 Standards
CSA File No. LR11852|Federal Specification W-C-586D/A-A 50563|NEC 501.10(b)/502.10/503.10 Class I Div 2|UL File No. E3397SKU #2295593Part Number #C27UNSPSC39131708UPC00783936011417
Image provided may only be a representation of final product and may include optional equipment
