Brand: Hubbell

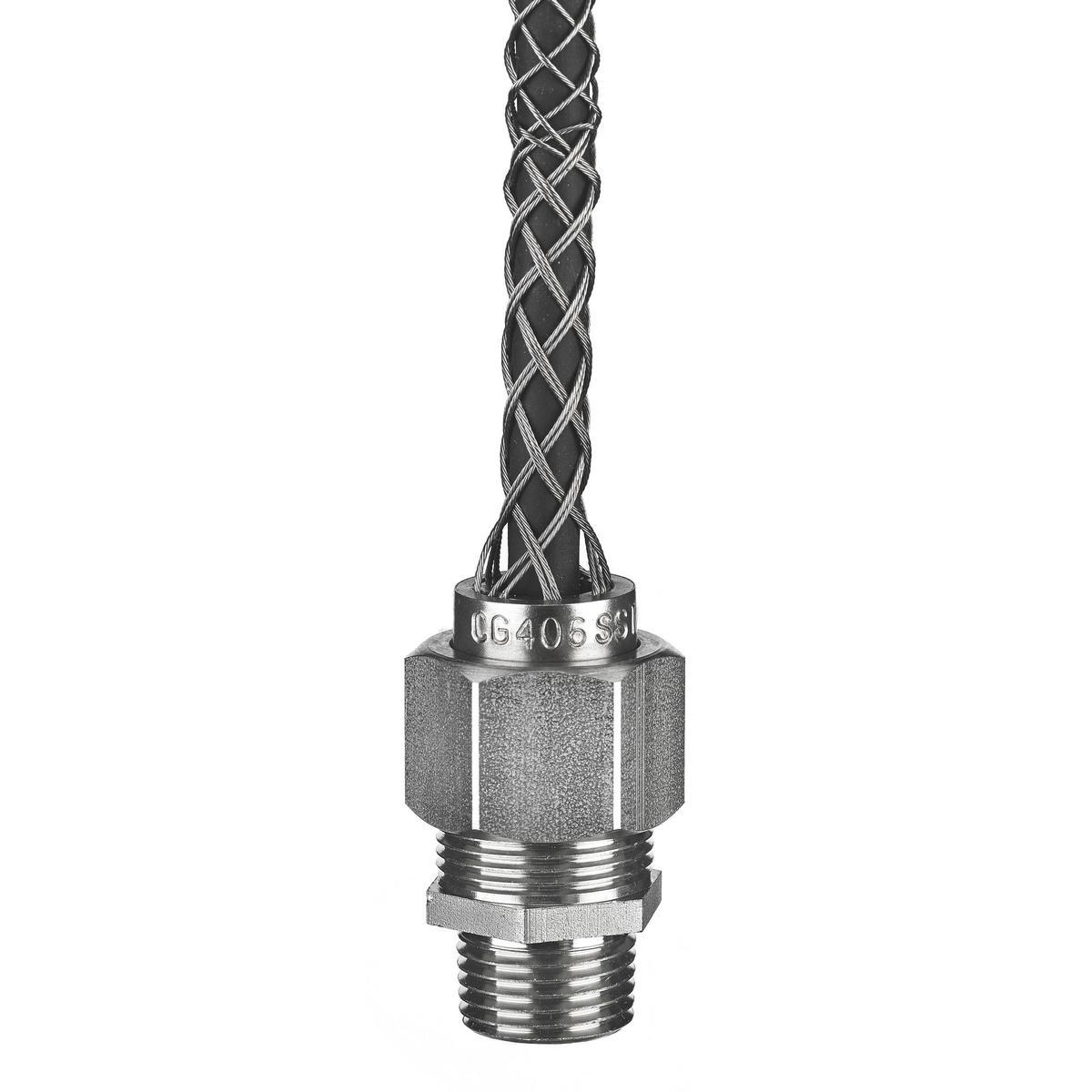

Hubbell CG816SST Deluxe Cord Grip
Image Disclaimers Message
Brand: Hubbell
Hubbell CG816SST Deluxe Cord Grip
Brand: Hubbell
Hubbell CG816SST Deluxe Cord Grip
Part #:CG816SST
SKU #: 2278420
$327.14/EA
Key Features
Part #:CG816SST
SKU #: 2278420
Brand: Hubbell
Cable Openings: 7/8 to 1 in
Dimensions: 2.02 in Dia x 1.4 in L
Number of Conductors: 1
Temperature Rating (Degrees F): -30 to 225 deg F
Trade Size: 1 in
$327.14/EA
- Stainless steel mesh is corrosion-resistant
- Neoprene bushing is oil and watertight
- Helps to prevent cable pull out
- Controls cable arc of bend
- Provides a liquidtight seal
- An npt and PG threaded body allows easy attachment to either threaded hub or knockout in box
- Prevents liquids from running through the fitting into the enclosure
- https://youtu.be/_6b6xIwOUx4
Specifications
Brand: Hubbell
Cable Openings: 7/8 to 1 in
Dimensions: 2.02 in Dia x 1.4 in L
Number of Conductors: 1
Temperature Rating (Degrees F): -30 to 225 deg F
Trade Size: 1 in
Type: Form 4 Standard Straight
Cable type: Jacketed
Color: Metallic
Connection type: MNPT Straight
Country of origin: PR
Material: Stainless Steel
Manufacturer Name: Hubbell
UNSPSC: 39121431
UPC: 00783585334523
Hubbell CG816SST Deluxe Cord Grip
Wiring Device-Kellems Deluxe Cord Grip, Form 4 Standard Straight, 1 in Trade, 1 Conductor, Cable Openings: 7/8 to 1 in, Jacketed Cable, MNPT Straight Connection, Stainless Steel, Metallic, -30 to 225 deg F, 2.02 in Dia x 1.4 in L Dimensions
Additional Description: HUBW-CG816SST STR MALE SS DCG, .875- 1.00, 1"" W/MESH"" W/MESH
Catalog Description: Kellems® Deluxe Cord Grip, Straight Male Stainless, .875-1.000", 1" with Mesh
Item FeaturesWiring Enclosures, Pendant Stations, Hand Tools, Construction, Processing and Material Handling Equipment, Pumps, Motors, Machine Tool and Wet Location Applications
Item Features
Item FeaturesCSA Certified|Hazardous Location per, Class I, Division 2, Class II, Division 1/2, Class III, Division 1/2|NEC Certified|RoHS Compliant|UL 898D/899D|UL 94 V-2 Flammability Rating|UL 94 HB Flammabilty Rating
