Part Number # CPB22
SKU # 2294307
CPB22

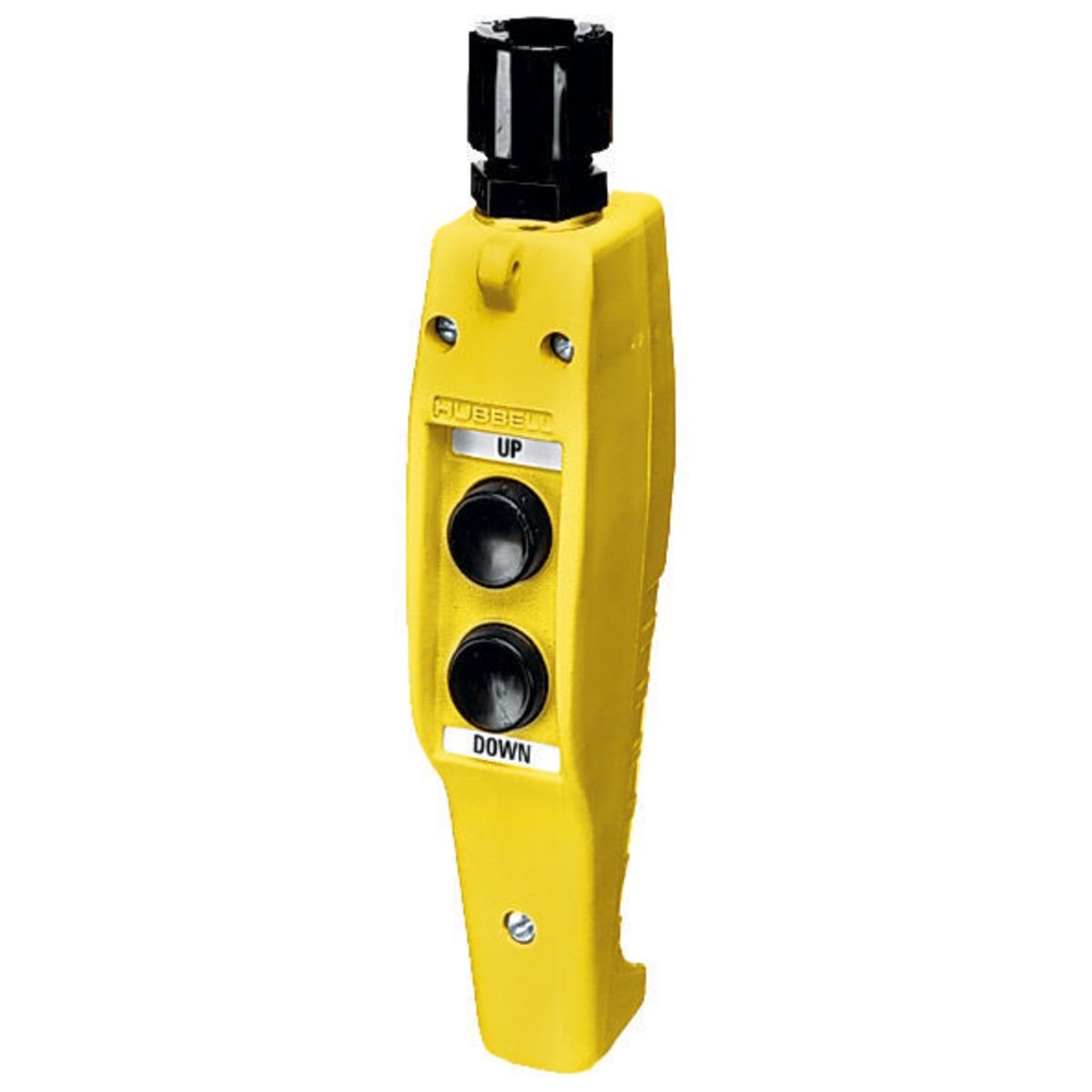

Hubbell CPB22 Compact Pendant
Part Number # CPB22
SKU # 2294307
Hubbell CPB22 Key Features
| Brand: | Hubbell |
|---|---|
| Part Number # : | CPB22 |
| SKU #: | 2294307 |
| Actuator: | Push Button |
| Amperage Rating: | 1.5, 1.5 A |
| Connection: | Screw Terminal |
| Contact Configuration: | Momentary |
| Contact Form: | Momentary |
| Dimensions: | 1.06 in L x 2.38 in W x 9.13 in H |
| NEMA Rating: | 4X, NEMA 4X |
| Number of Poles: | 4 |
| Operating Temperature: | -40 to 75, -40 to 75 deg C |
| Phase: | 1, 1 ph |
| Series: | CPB |
| Type: | 2-Button 2-Speed Heavy Duty Industrial Grade Non-Metallic Pilot Duty Standard |
| Connection type: | Screw Terminal |
| Country of origin: | PR, US |
| Mounting type: | Cable, Cable/Surface |
| Manufacturer Name: | Hubbell |
| UNSPSC: | 39121561 |
| UPC: | 00783585106908 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Hubbell CPB22 Compact Pendant
Brand: Hubbell
Part Number: CPB22
Wiring Device-Kellems Compact Pendant, 2-Button 2-Speed Heavy Duty Industrial Grade Non-Metallic Pilot Duty Standard, Series: CPB, 250 VAC, 1.5 A, 4 Pole, Momentary Contact Configuration, Momentary Contact Form, 1 ph, Push Button Actuator, Screw Terminal Connection, 4X NEMA Rating, Cable Mounting, -40 to 75 deg C Operating, Yellow, 1.06 in L x 2.38 in W x 9.13 in H
Additional Description: HUBW-CPB22 COMPACT PEND, 2 BUTTON 2 SPEED
Catalog Description: Two Button Compact Version, Two Speed Normally Open, Pilot Duty, 240V AC, Terminal Screws
CPB22 Application
Indoor and Outdoor ApplicationsCPB22 Item Features
- Two-speed with mechanical interlock between pushbuttons
CPB22 Standards
UL 508SKU #2294307Part Number #CPB22UNSPSC39121561UPC00783585106908
